Coolant Temperature Sensor/Switch (For Computer): Locations

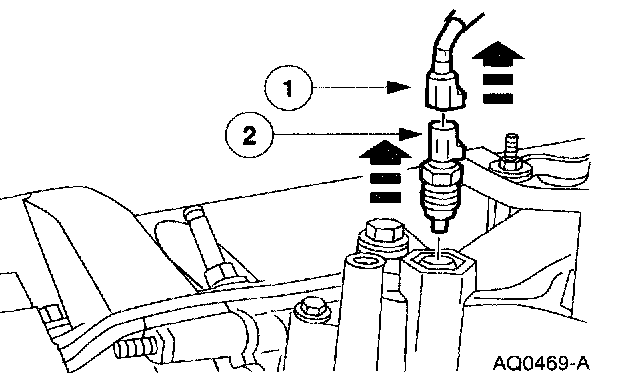

Note: Engine Coolant Temperature Sender is located on the top RH front of engine, near fuel injector #1.
