Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Sender Unit - Water Temperature Indicator

Removal

1. Partially drain the engine cooling system.

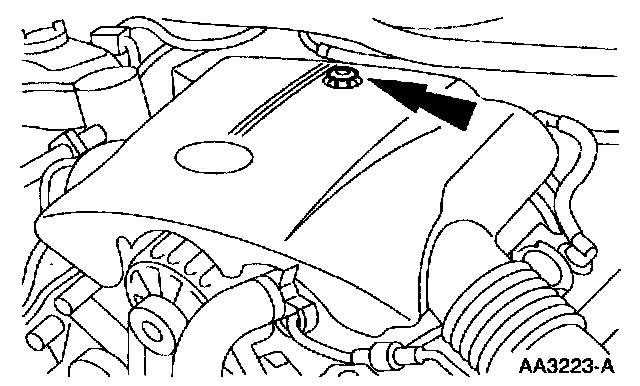

2. Remove the engine appearance cover.

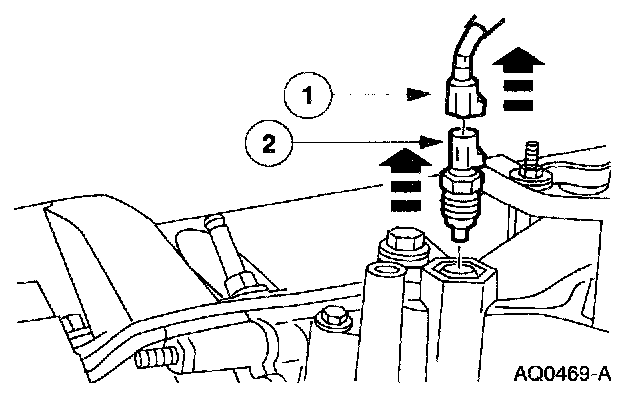

3. Remove the water temperature indicator sender unit.
1 Disconnect the electrical connector.
2 Remove the water temperature indicator sender unit.

Installation

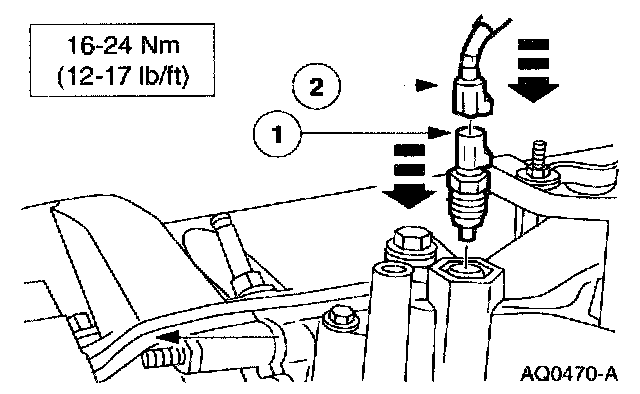

1. Install the water temperature indicator sender unit.
1 Install the water temperature indicator sender unit.
2 Connect the electrical connector.





2. Install the engine appearance cover.
3. Fill the engine cooling system.
