Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the engine appearance cover.

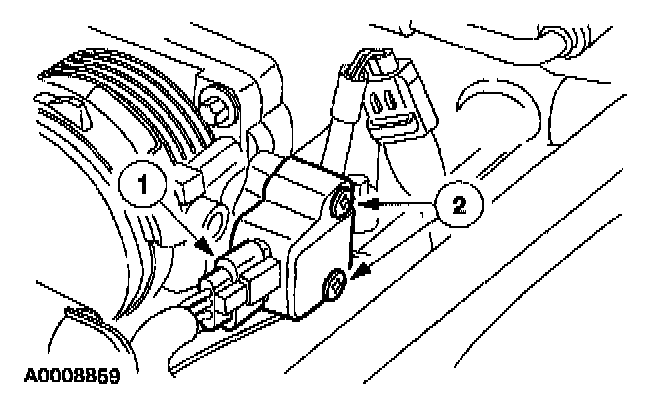

3. Remove the throttle position sensor.
1 Disconnect the electrical connector.
2 Remove the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
