Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

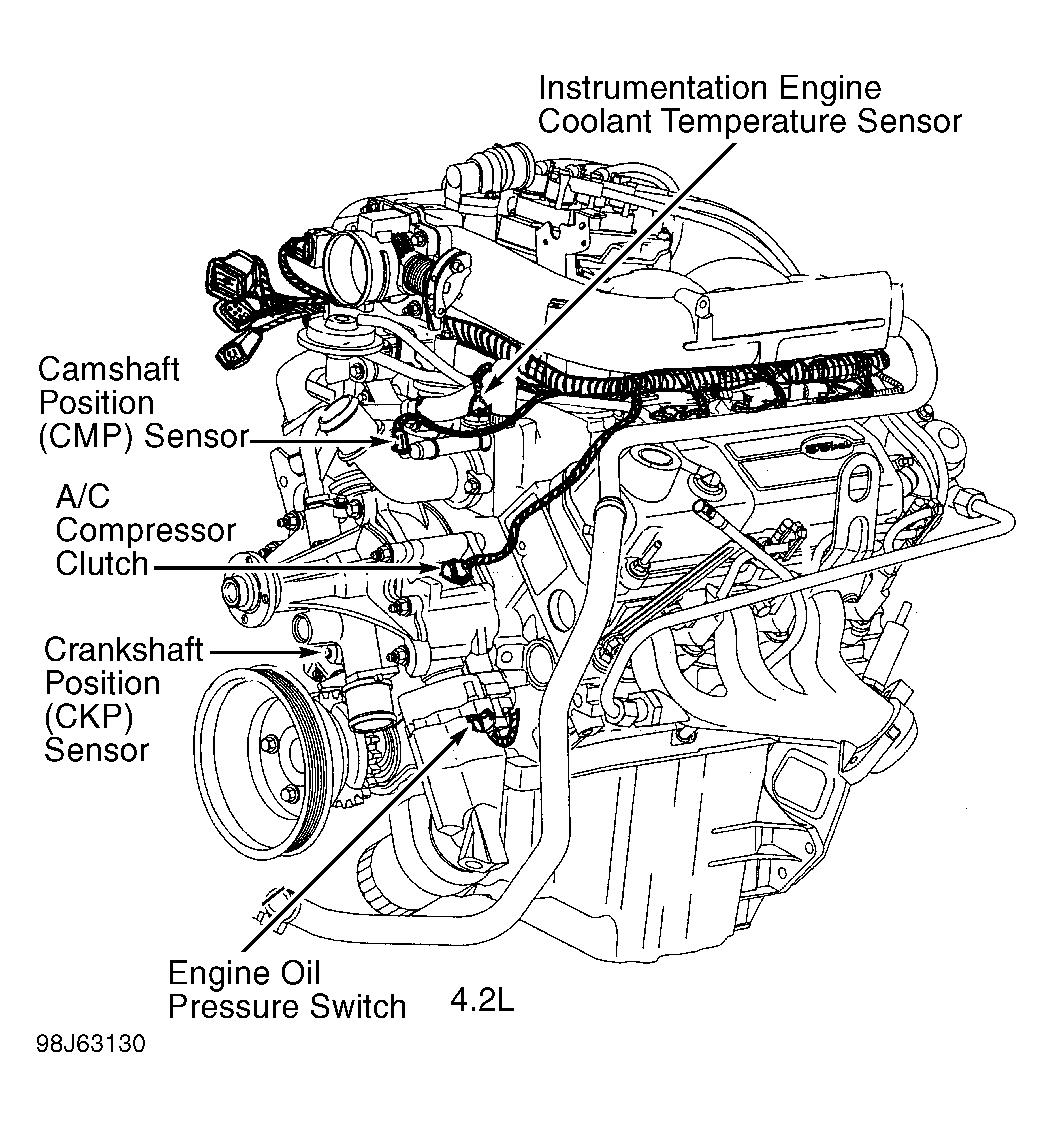

Fig 1: Left Front Of Engine (4.2L)

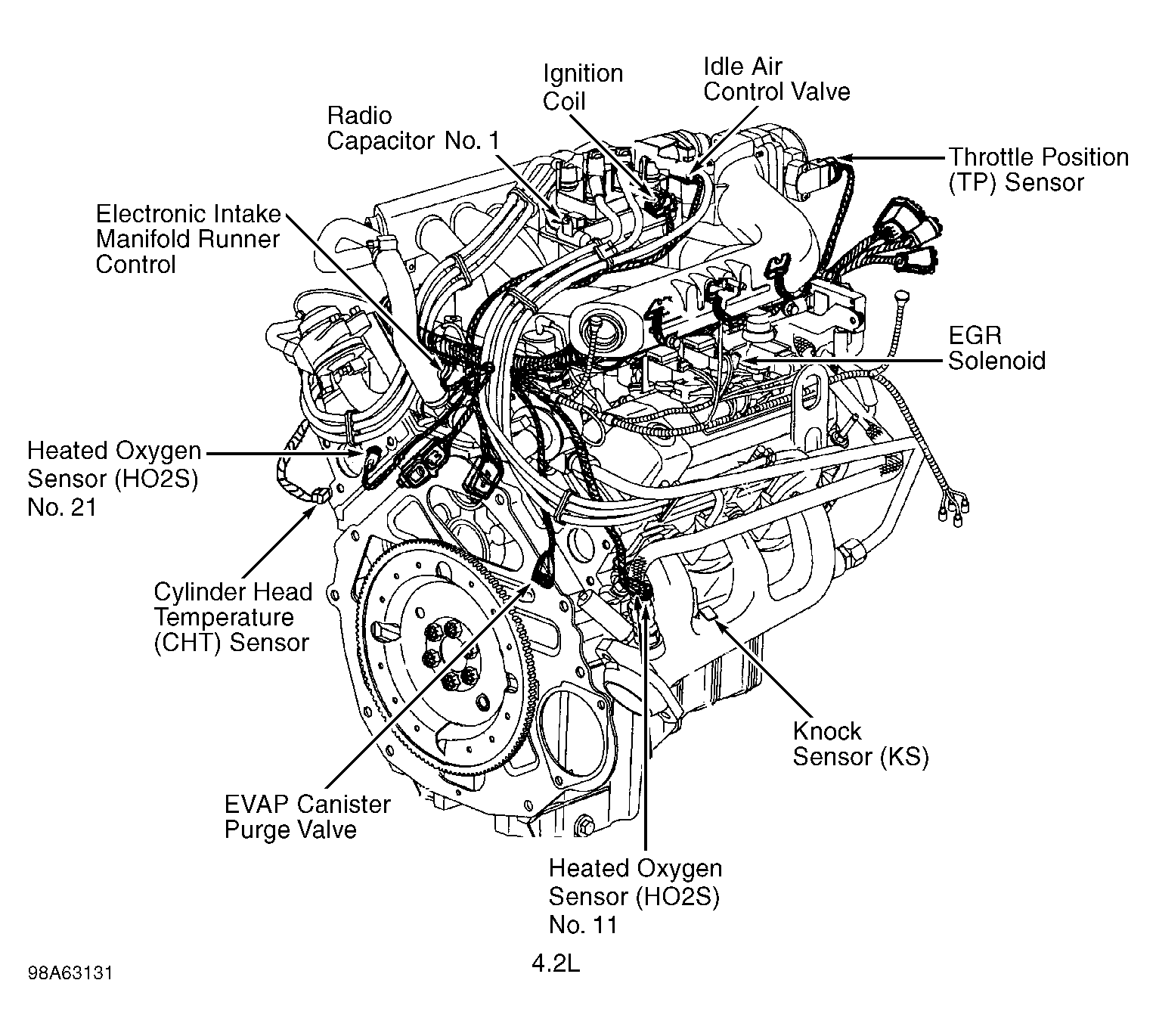

Fig 2: Right Rear Of Engine (4.2L)

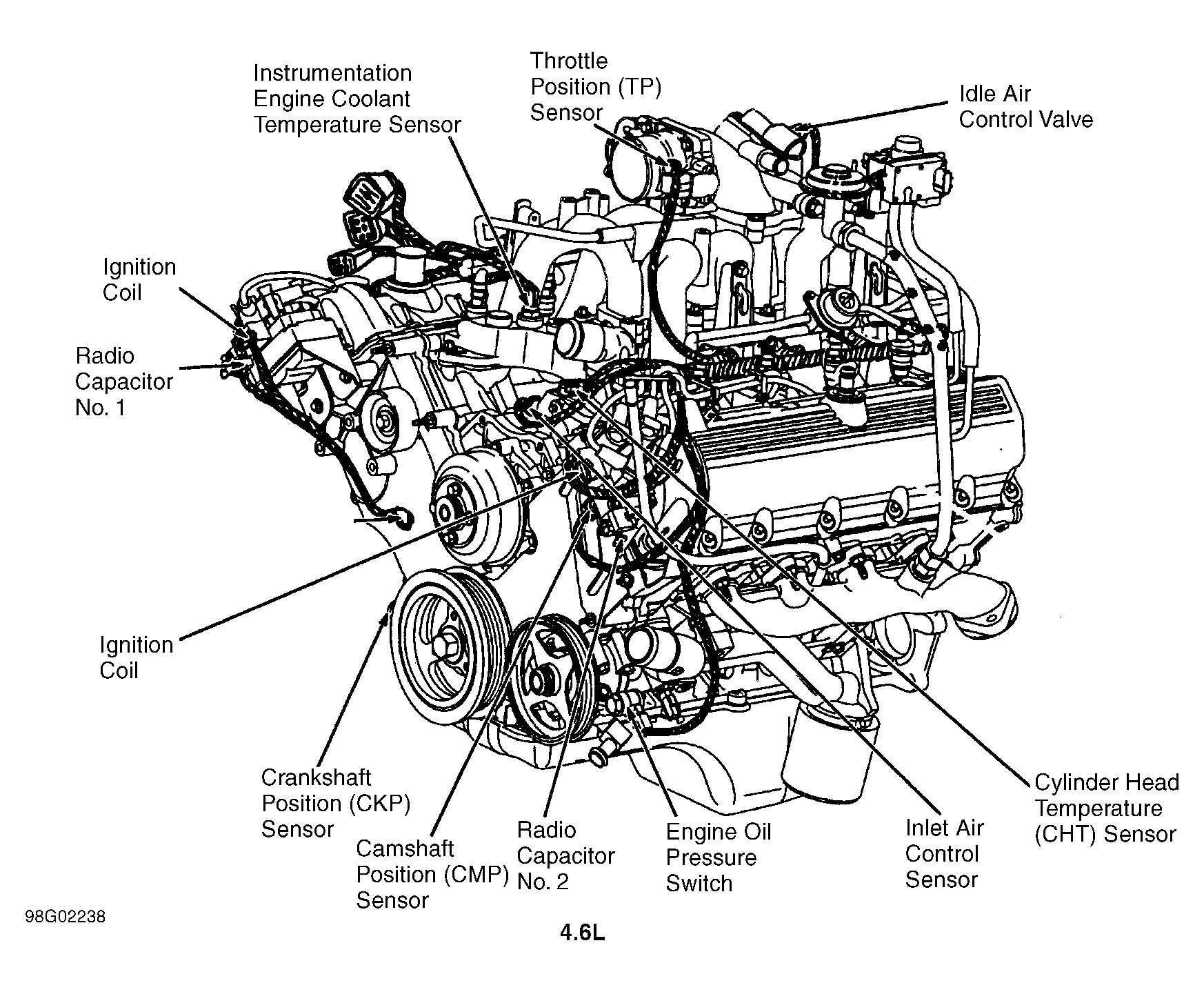

Fig 3: Left Front Of Engine (4.6L)

Fig 4: Right Rear Of Engine (4.6L)

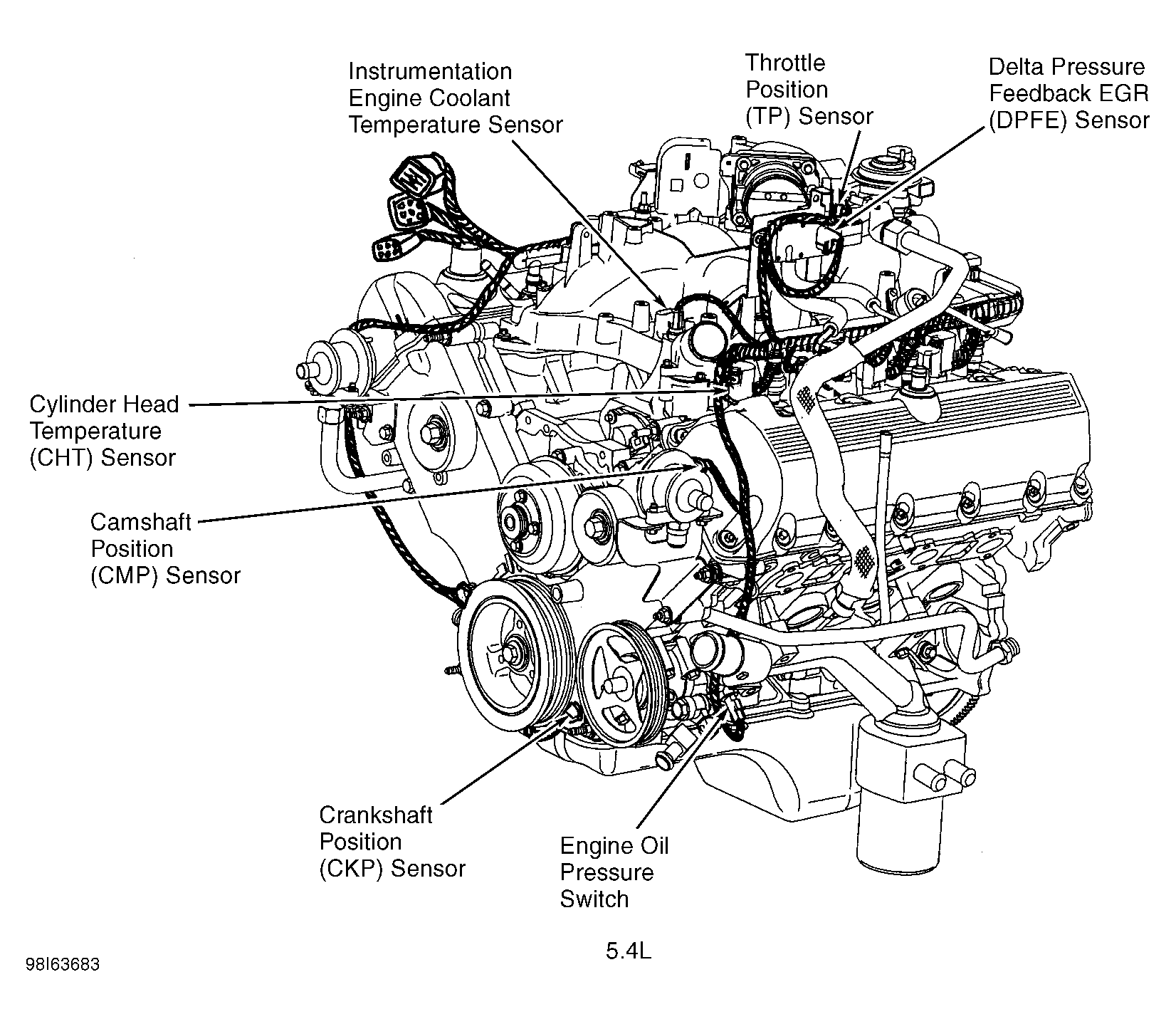

Fig 5: Left Front Of Engine (5.4L)

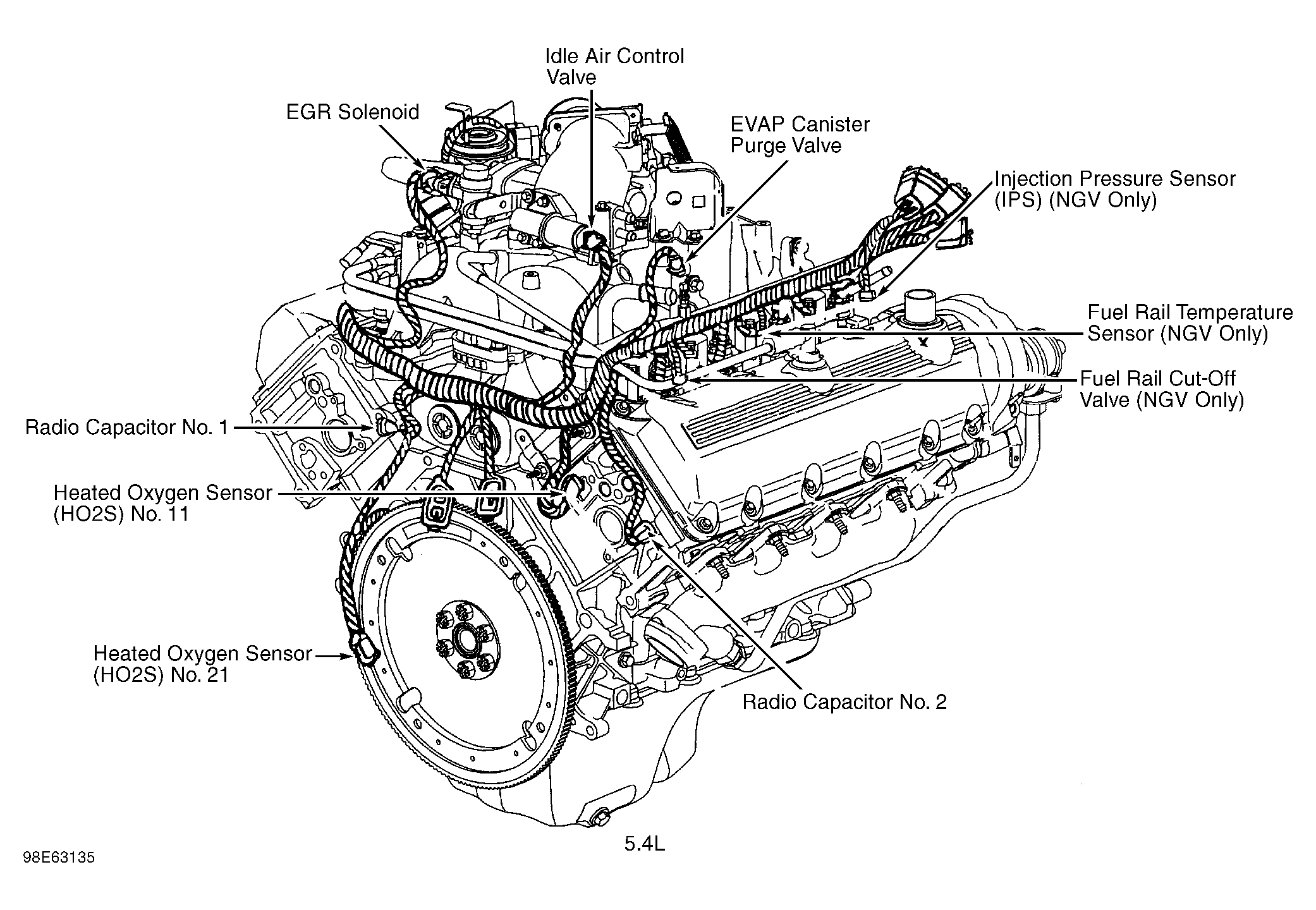

Fig 6: Right Rear Of Engine (5.4L)

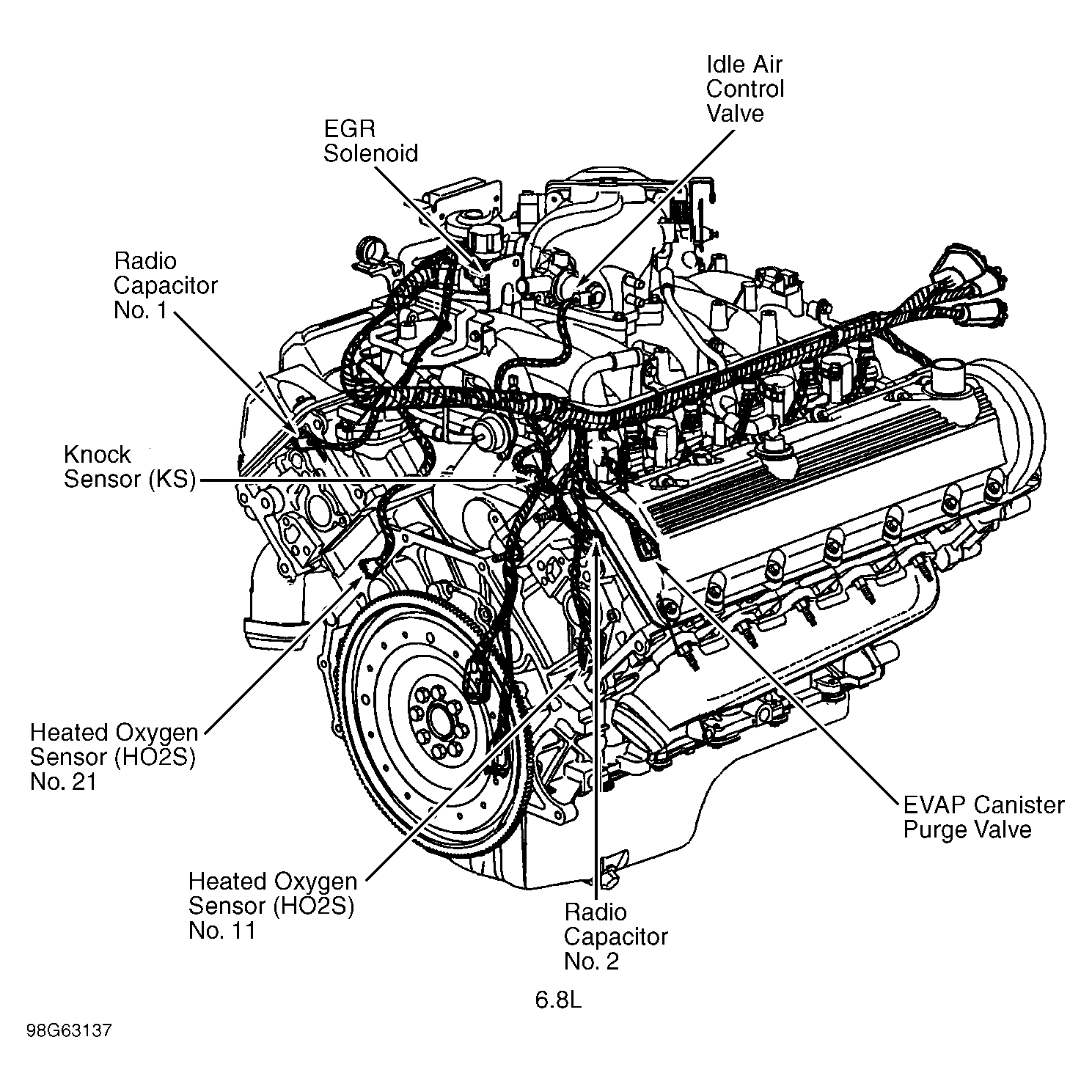

Fig 7: Right Rear Of Engine (6.8L)

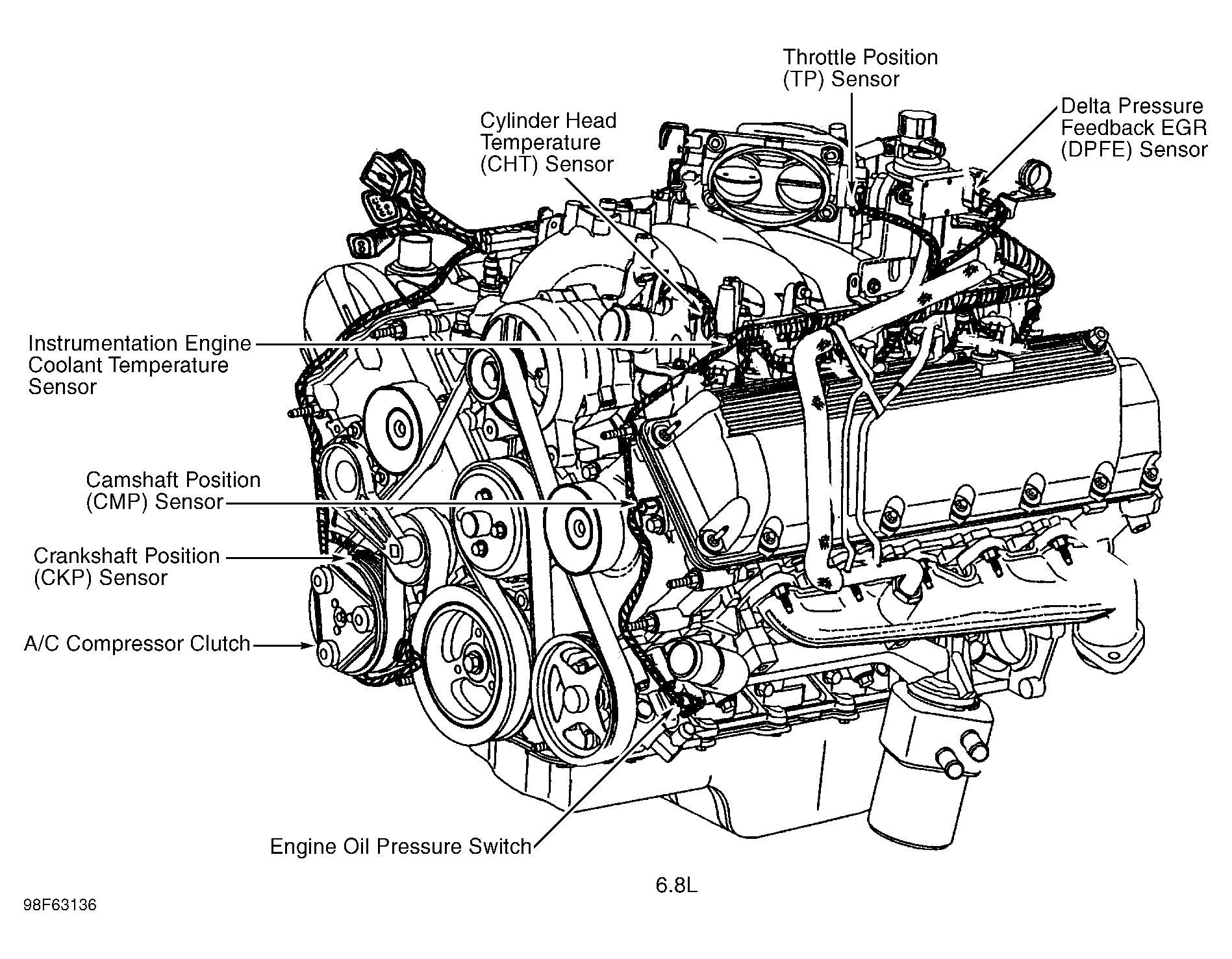

Fig 8: Left Front Of Engine (6.8L)

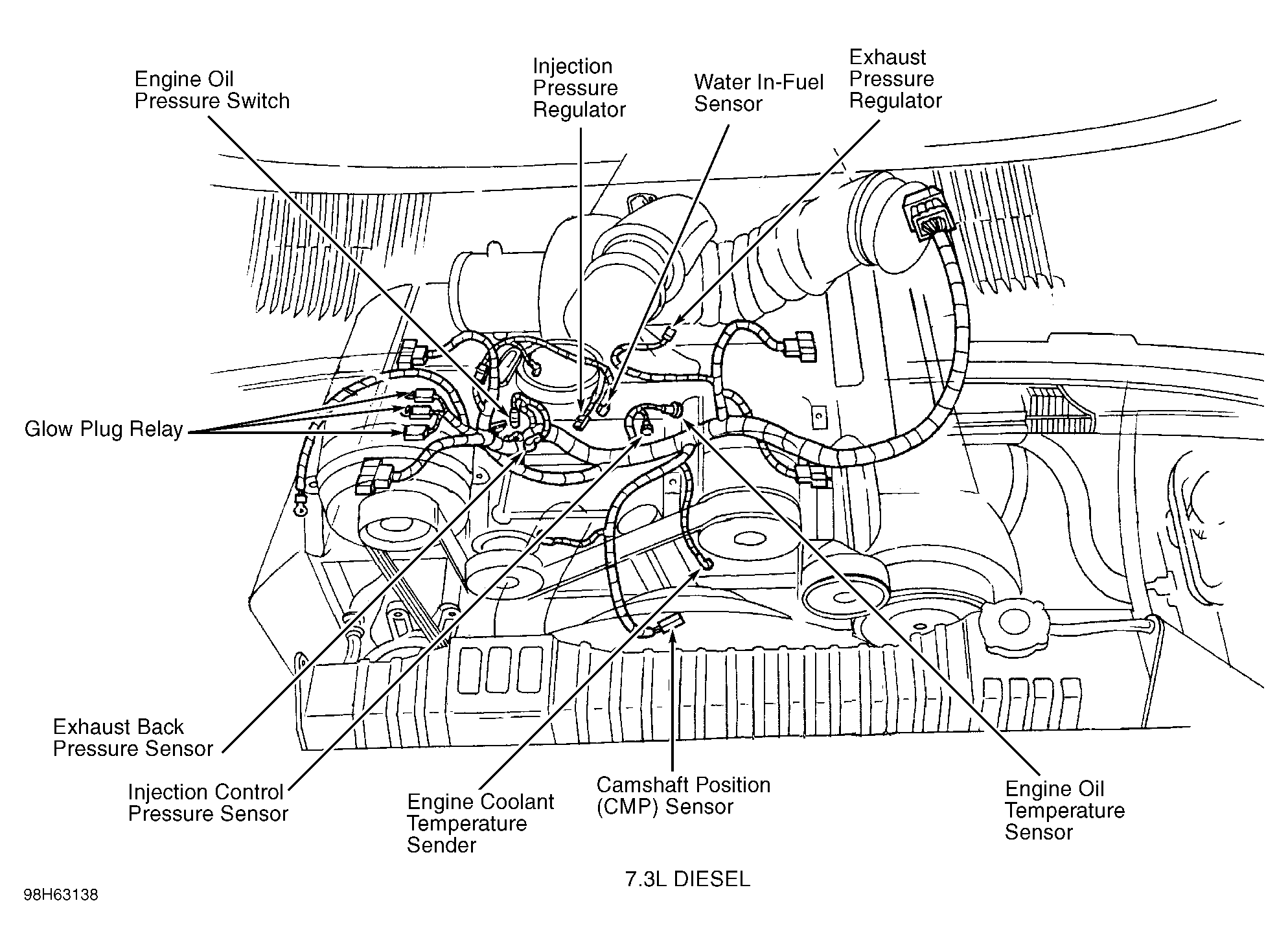

Fig 9: Center Of Engine Compartment (7.3L Diesel)

Fig 10: Engine Compartment

Fig 11: Dash

Fig 12: Dash

Fig 13: Vehicle
