Driveshaft Universal Joint: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer/Remover, C-Frame and Screw | 205-086 (T74P-4635-C) |

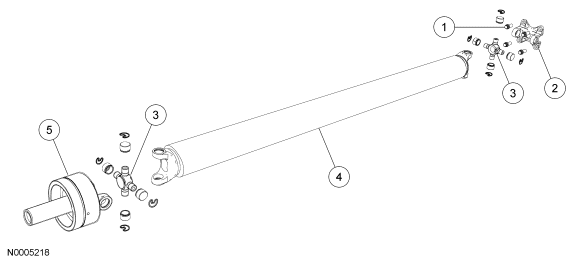

| Item | Part Number | Description |
|---|---|---|
| 1 | N800594-S100 | Driveshaft attaching bolt (4 required) |
| 2 | 4782 | Driveshaft centering socket yoke |
| 3 | 4635 | U-joints (2 required) |
| 4 | 4602 | Driveshaft |
| 5 | 4841 | Driveshaft slip yoke |
