Audio System
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
There are 5 audio system configurations available:
- M100 AM/FM ULC (2-channel) with 2 front door mounted speakers.
- M100 AM/FM ULC (4-channel) with 2 front door mounted speakers, 2 central mounted speakers, and 2 rear door mounted speakers (optional).
- M100 AM/FM/Cassette with 2 front door mounted speakers, 2 central mounted speakers, and 2 rear door mounted speakers (optional).
- DM100i AM/FM/Cassette/CD with clock and 6 speakers.
- CDX6 AM/FM/6-Disc CD in-dash (premium) with clock and 6 speakers.
Depending on vehicle trim level, the audio system will have 2, 4 or 6 radio speakers.
Refer to the Owner's Literature for specific operating information.

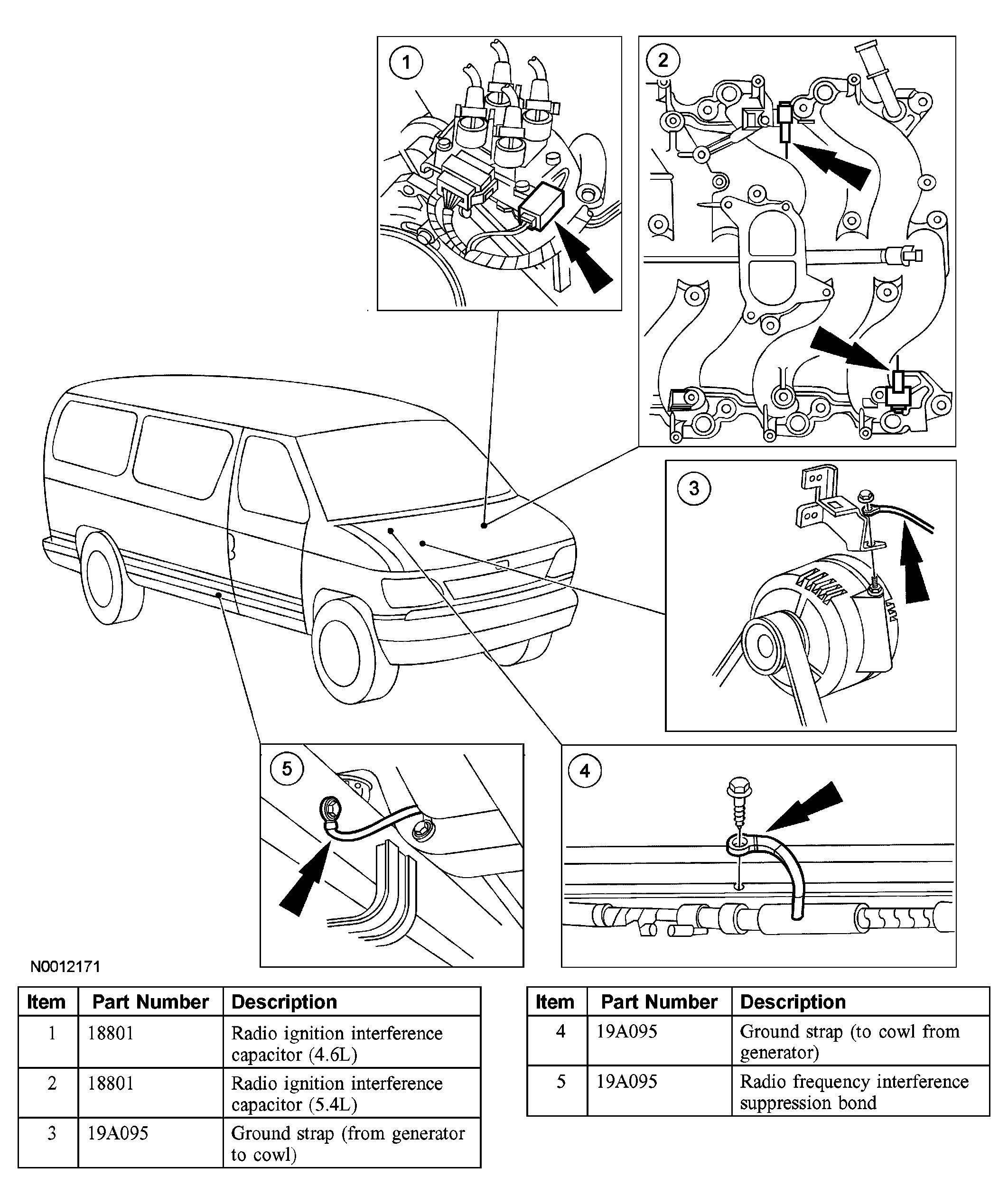

The radio suppression equipment reduces interference transmitted through the radio speakers by the engine ignition and electrical systems. When installing any radio suppression equipment components, make sure that a good contact is made at all connections. Remove any paint or dirt from between a component and its ground. Tighten all connectors and screws securely according to torque specifications.
