Components

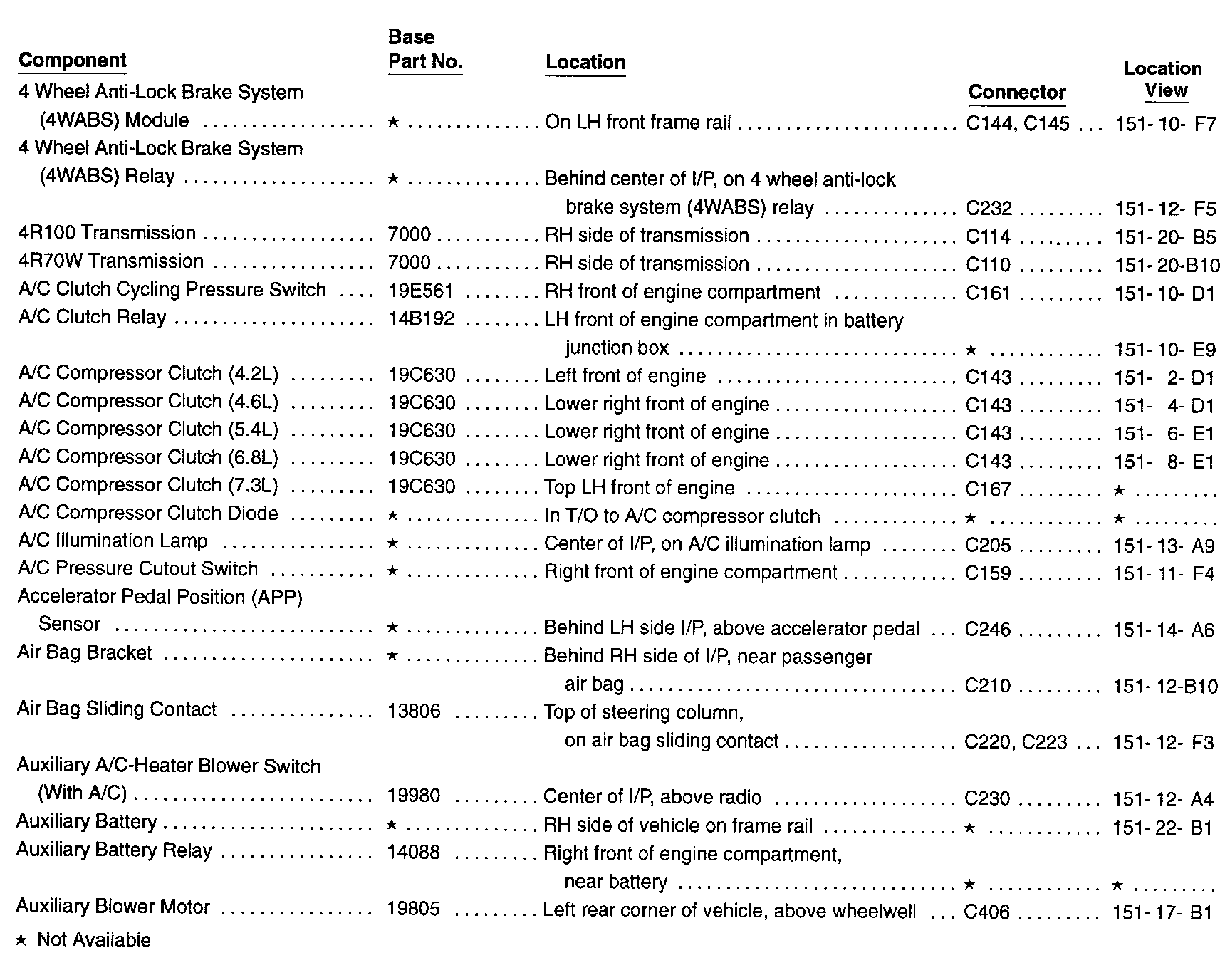

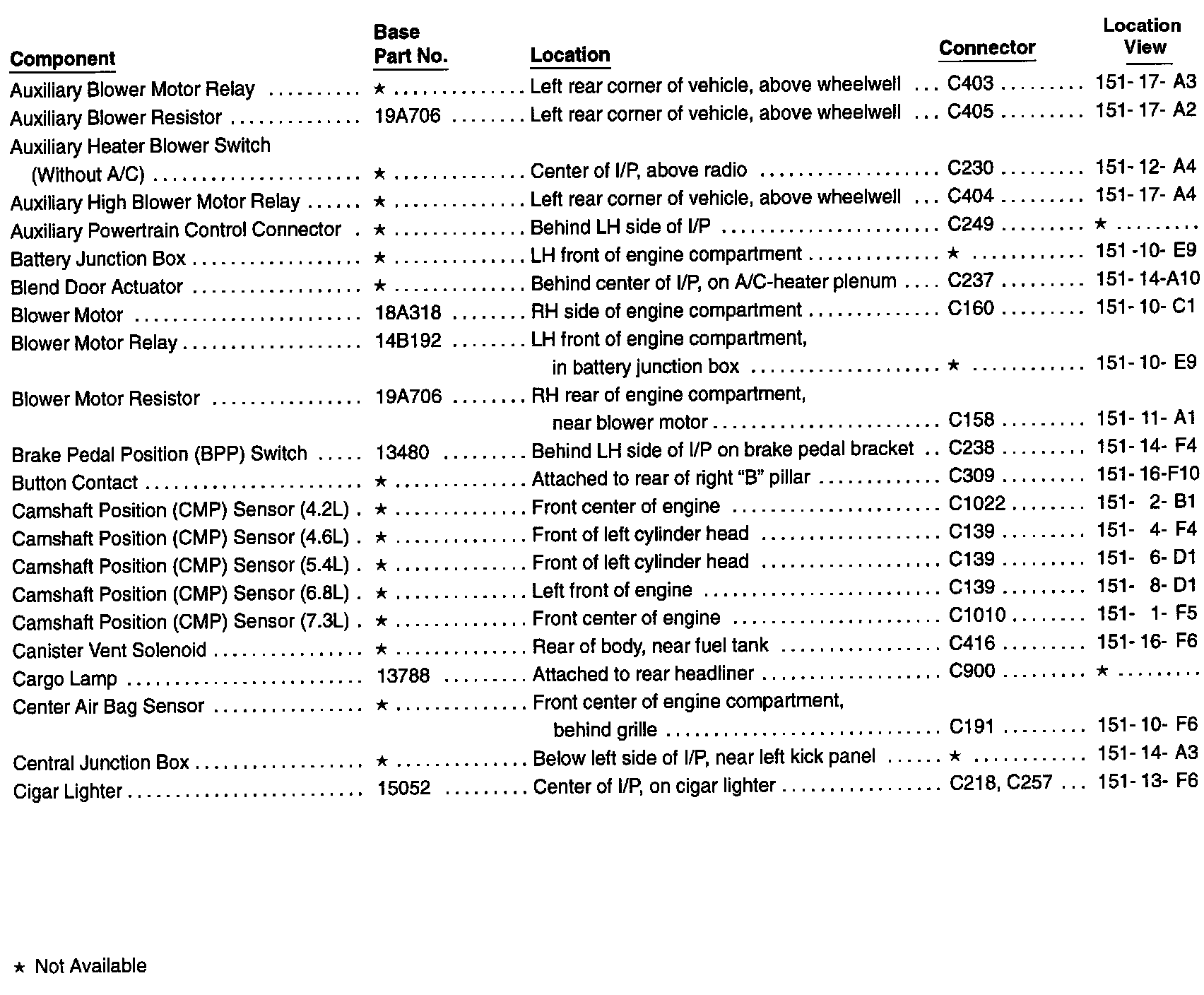

4W-Au:






Au-Ci:

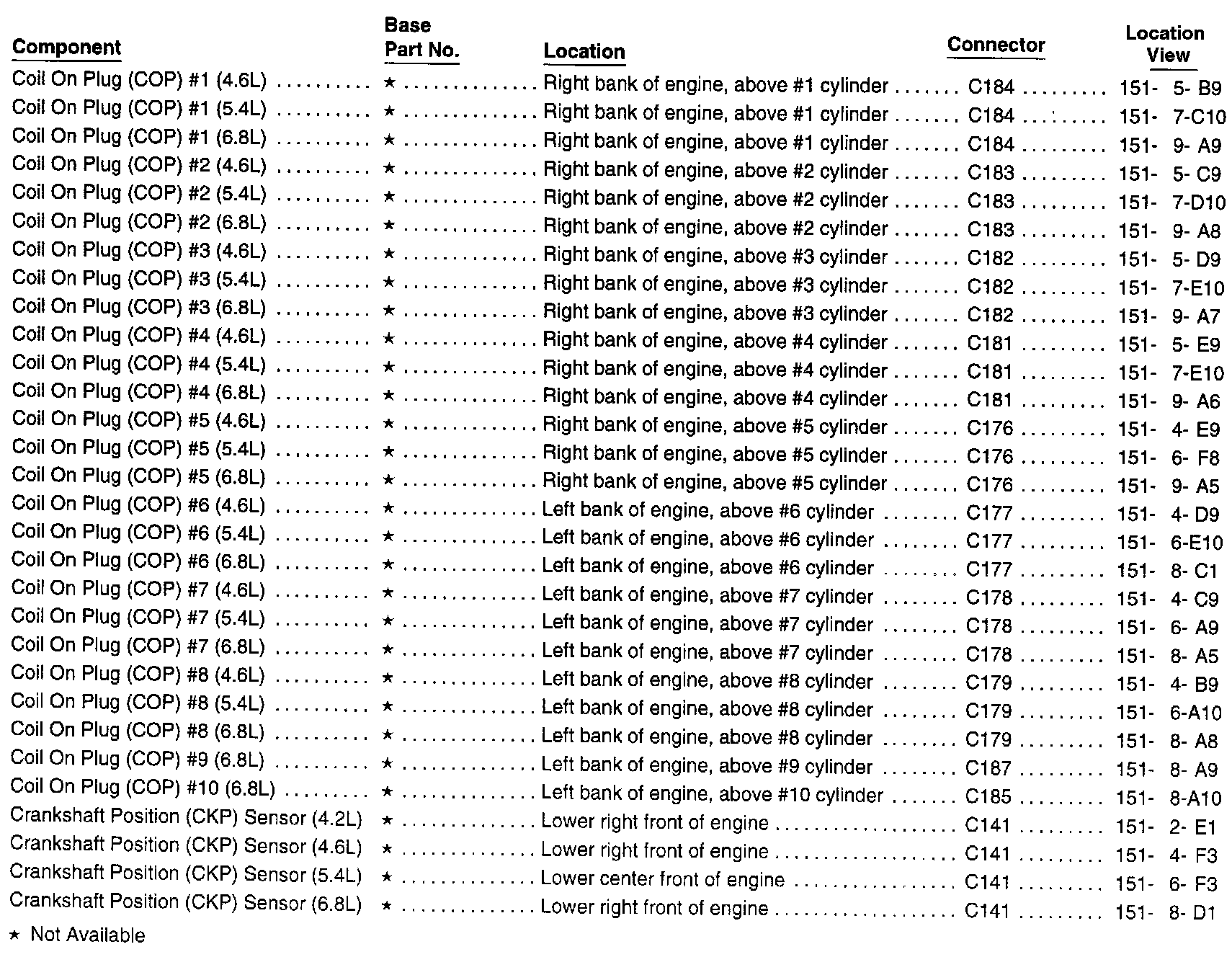

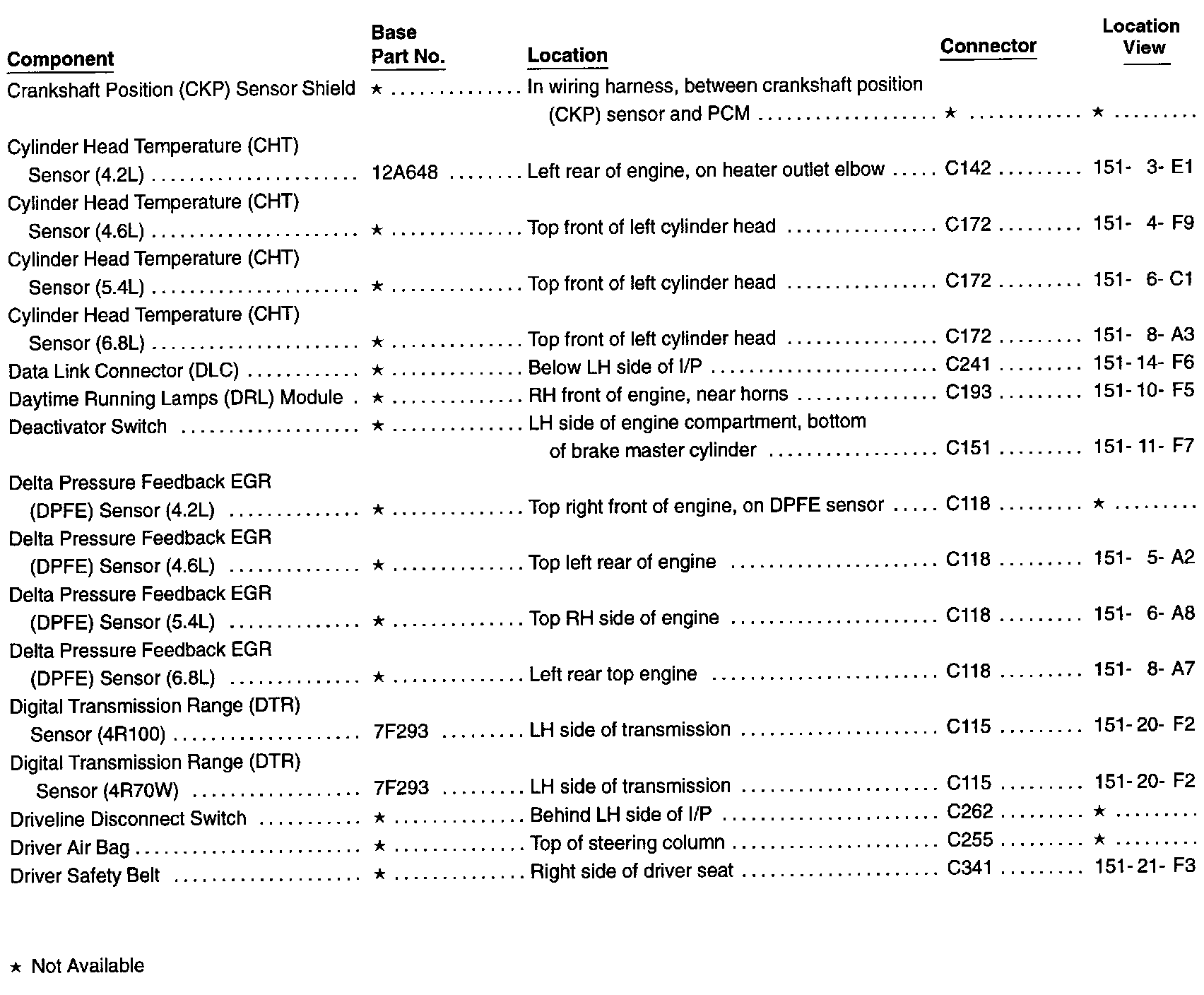

Co-Cr:






Cr-Dr:

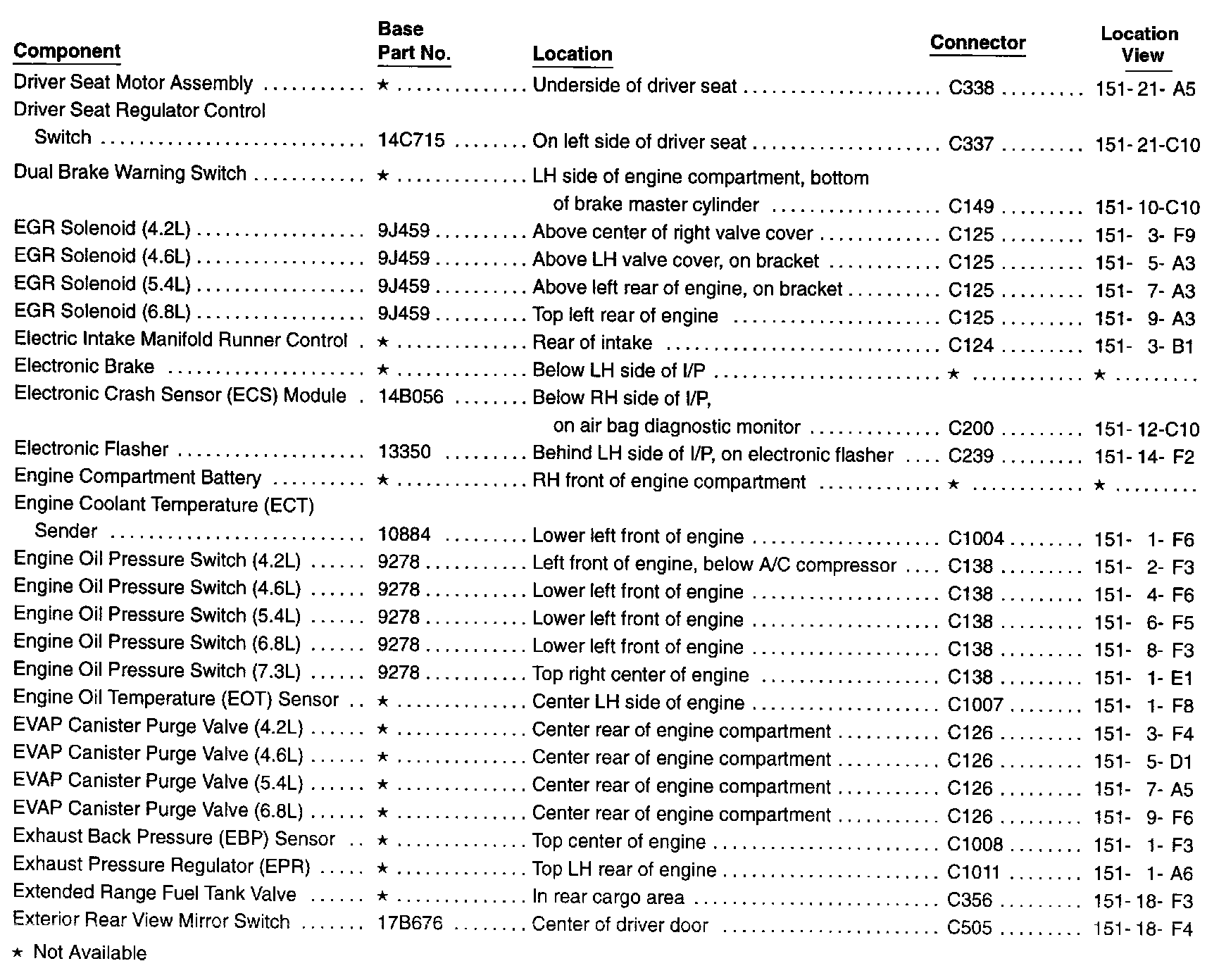

Dr-Ex:

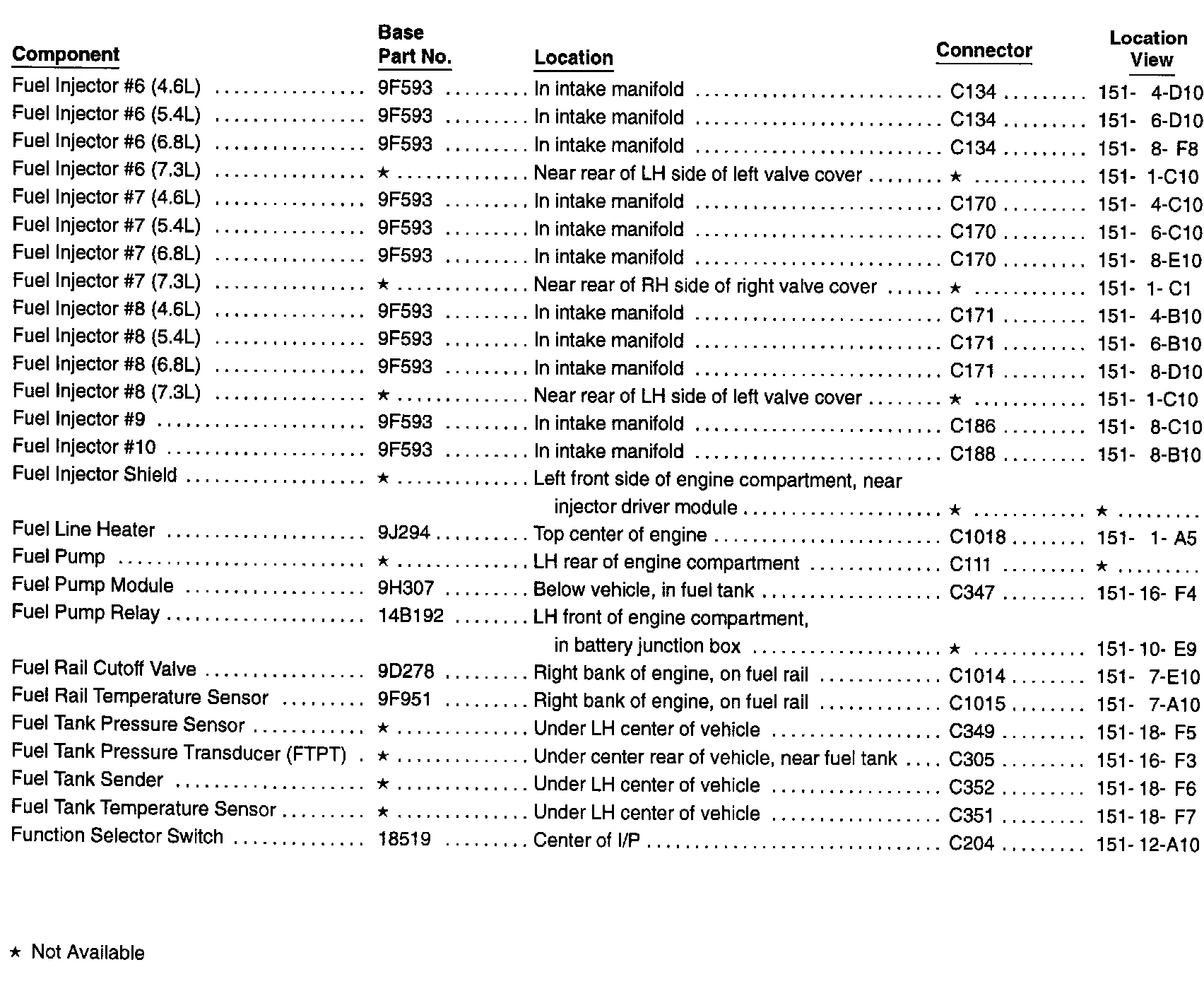

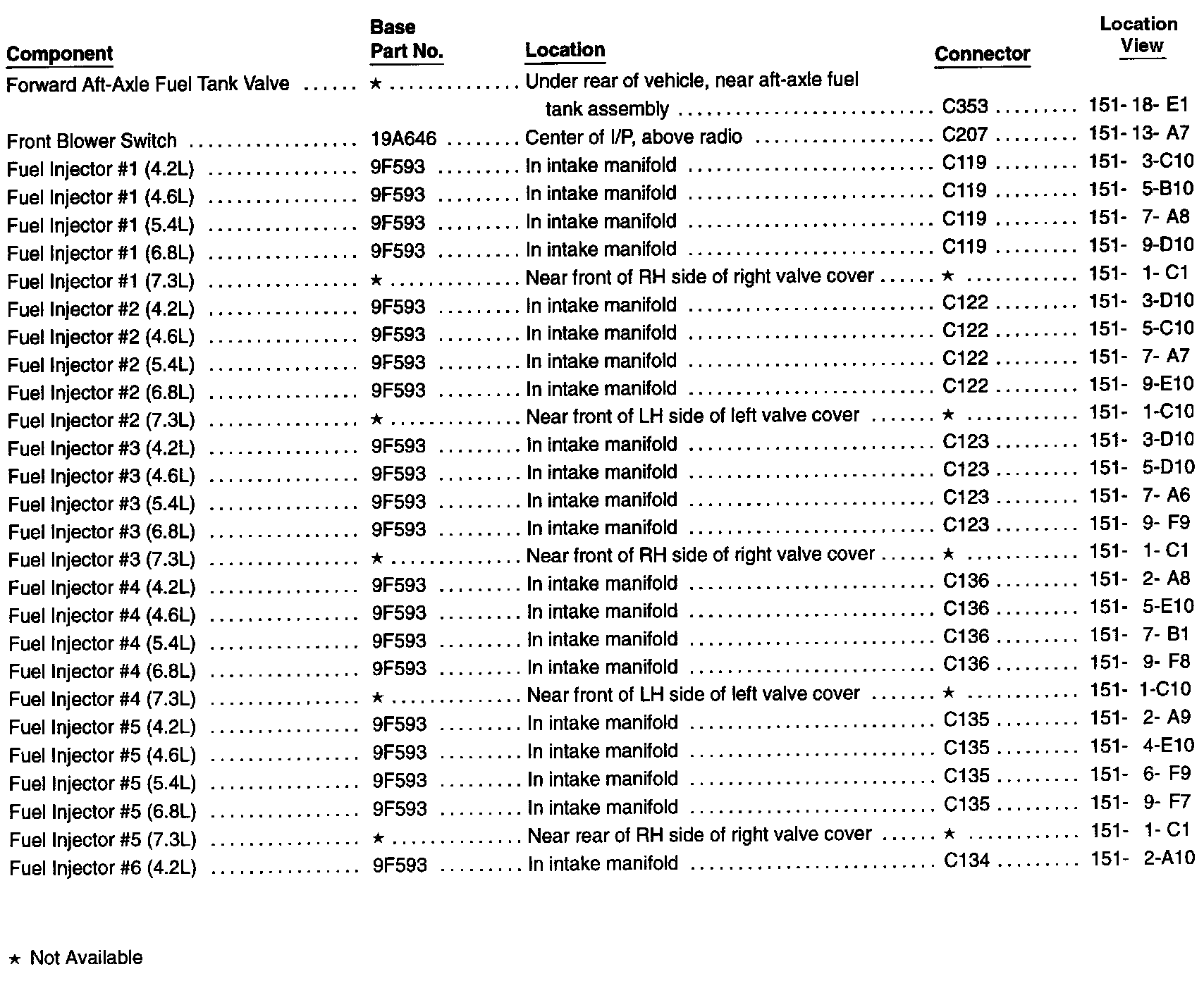

Fo-Fu:

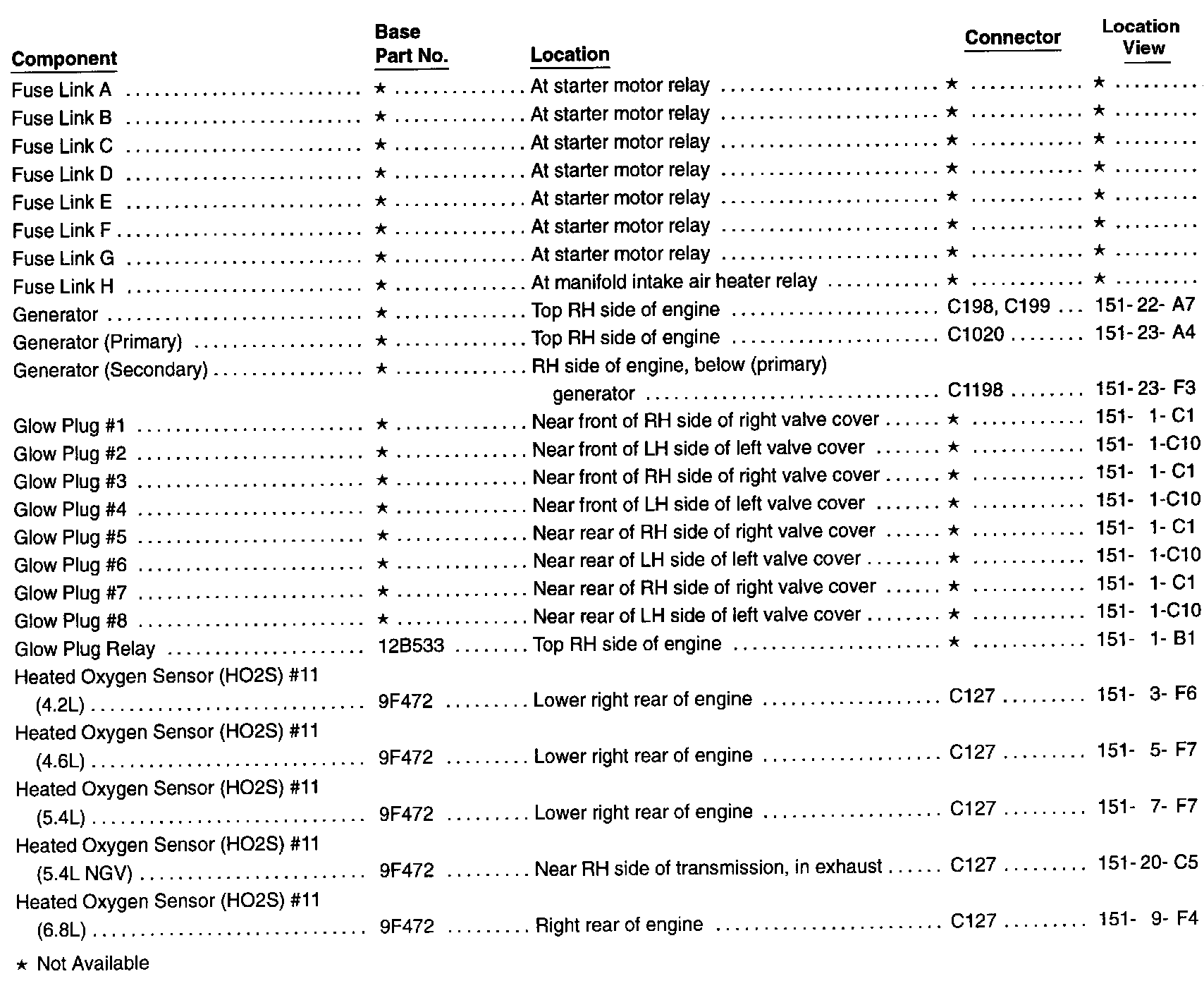

F-Fu:






Fu-He:

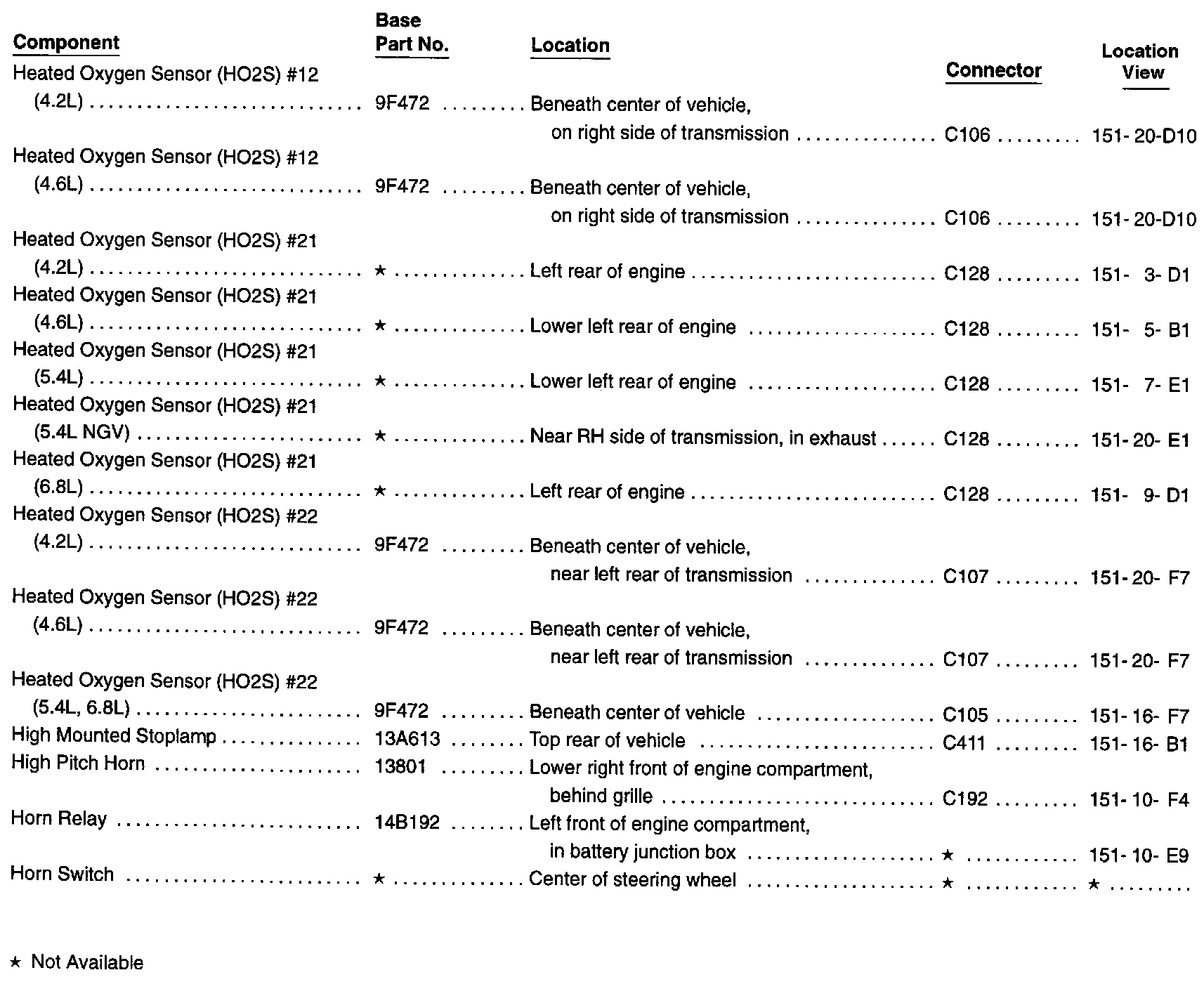

He-Ho:

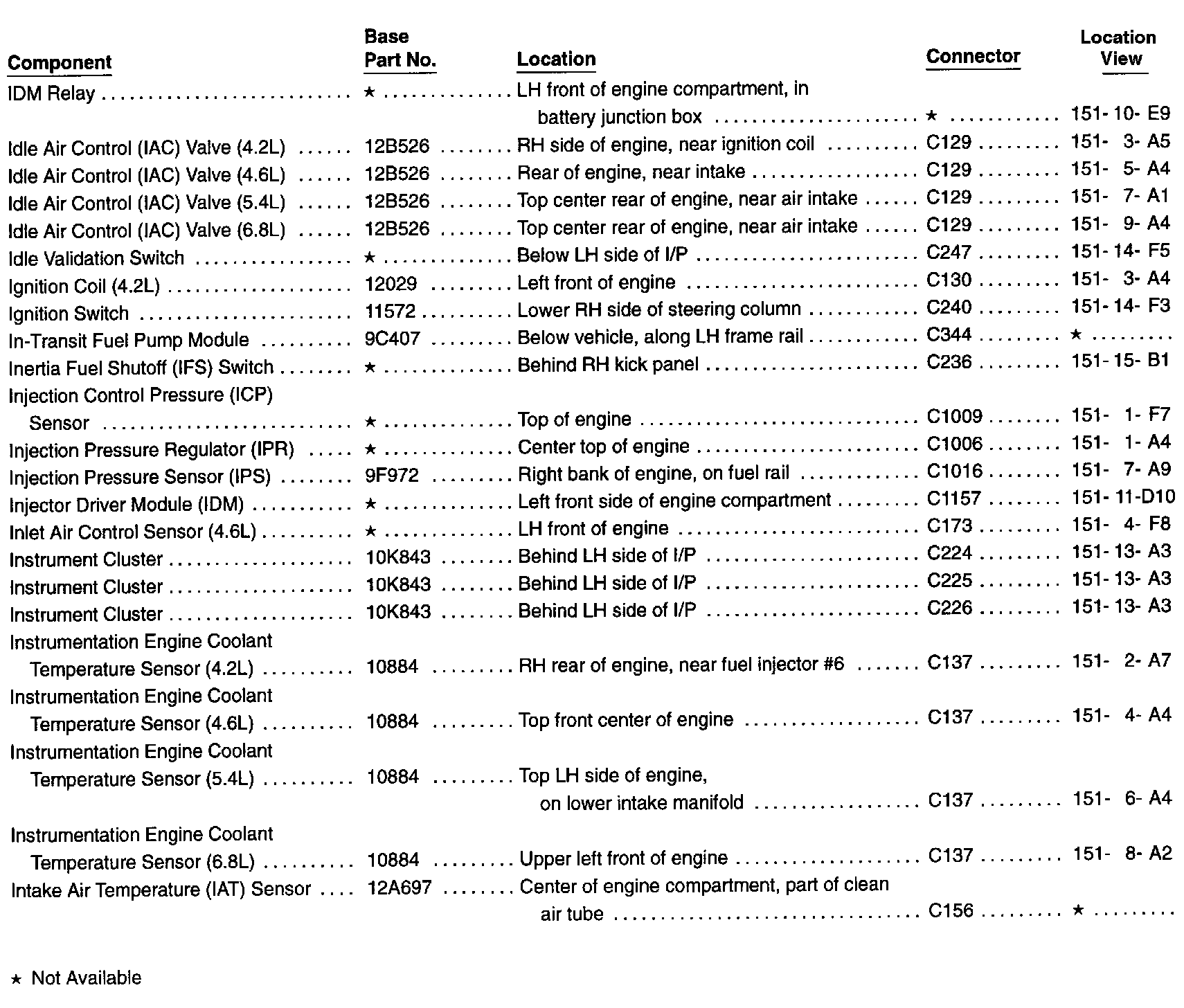

Id-In:

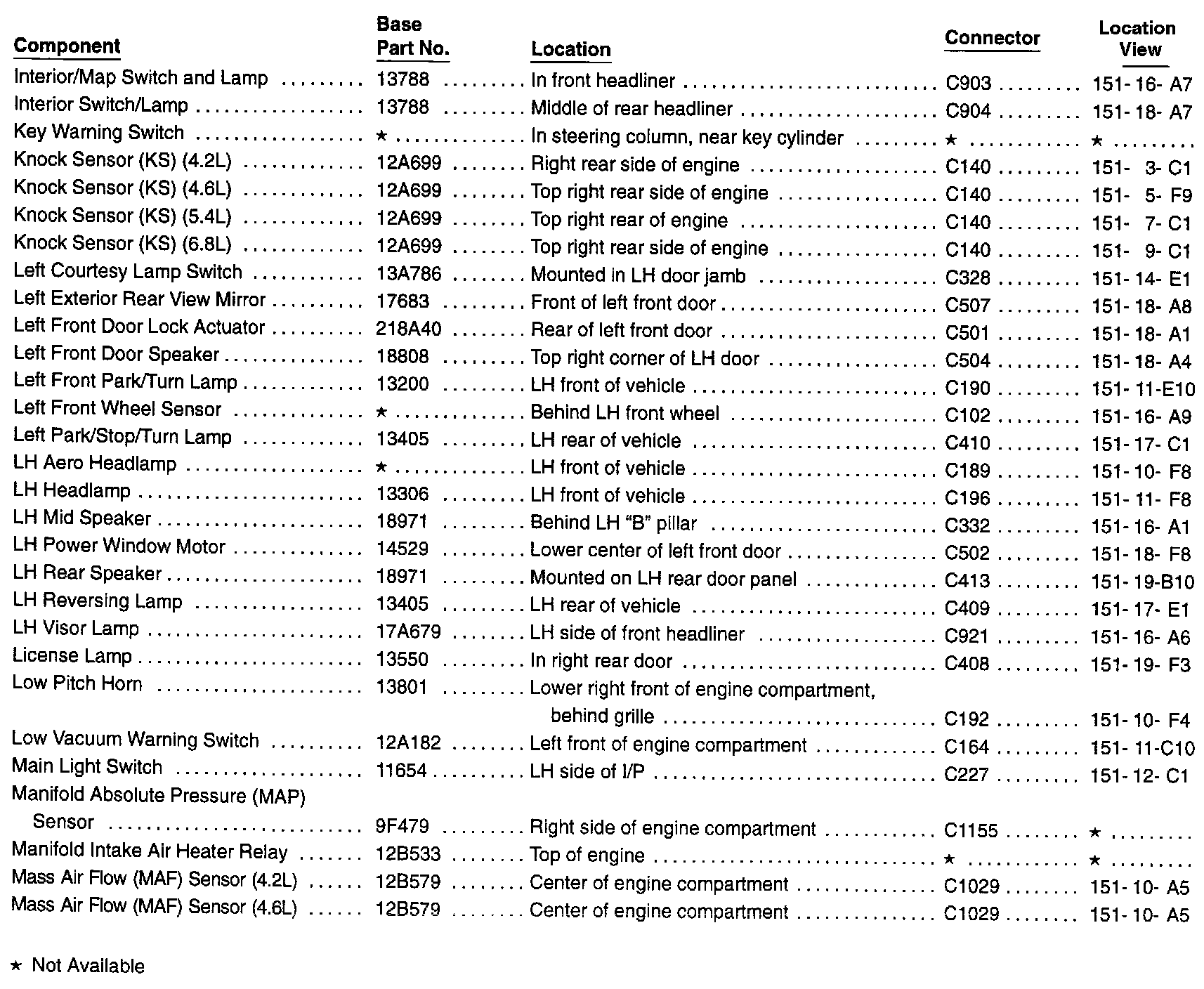

In-Ma:

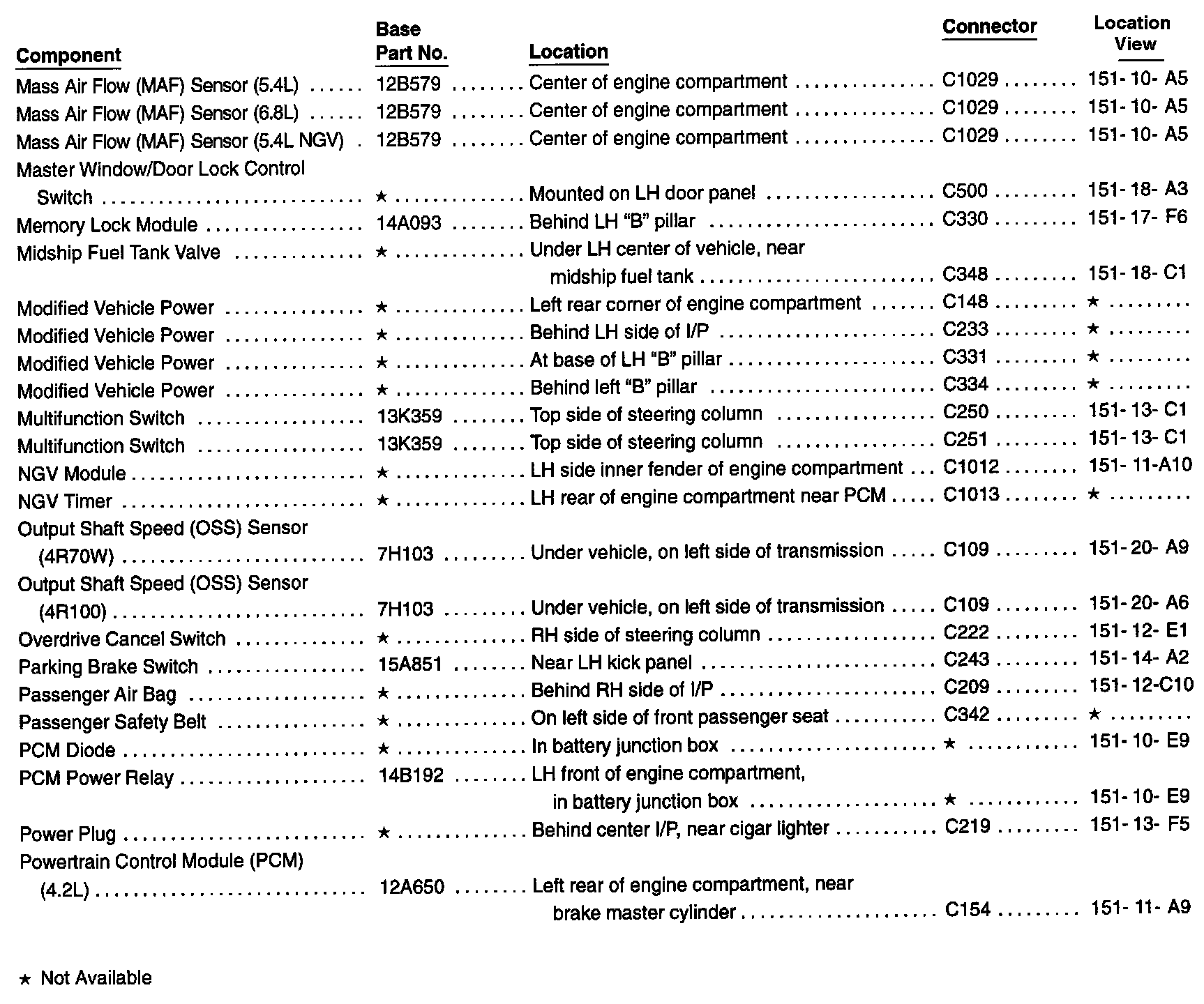

Ma-Po:

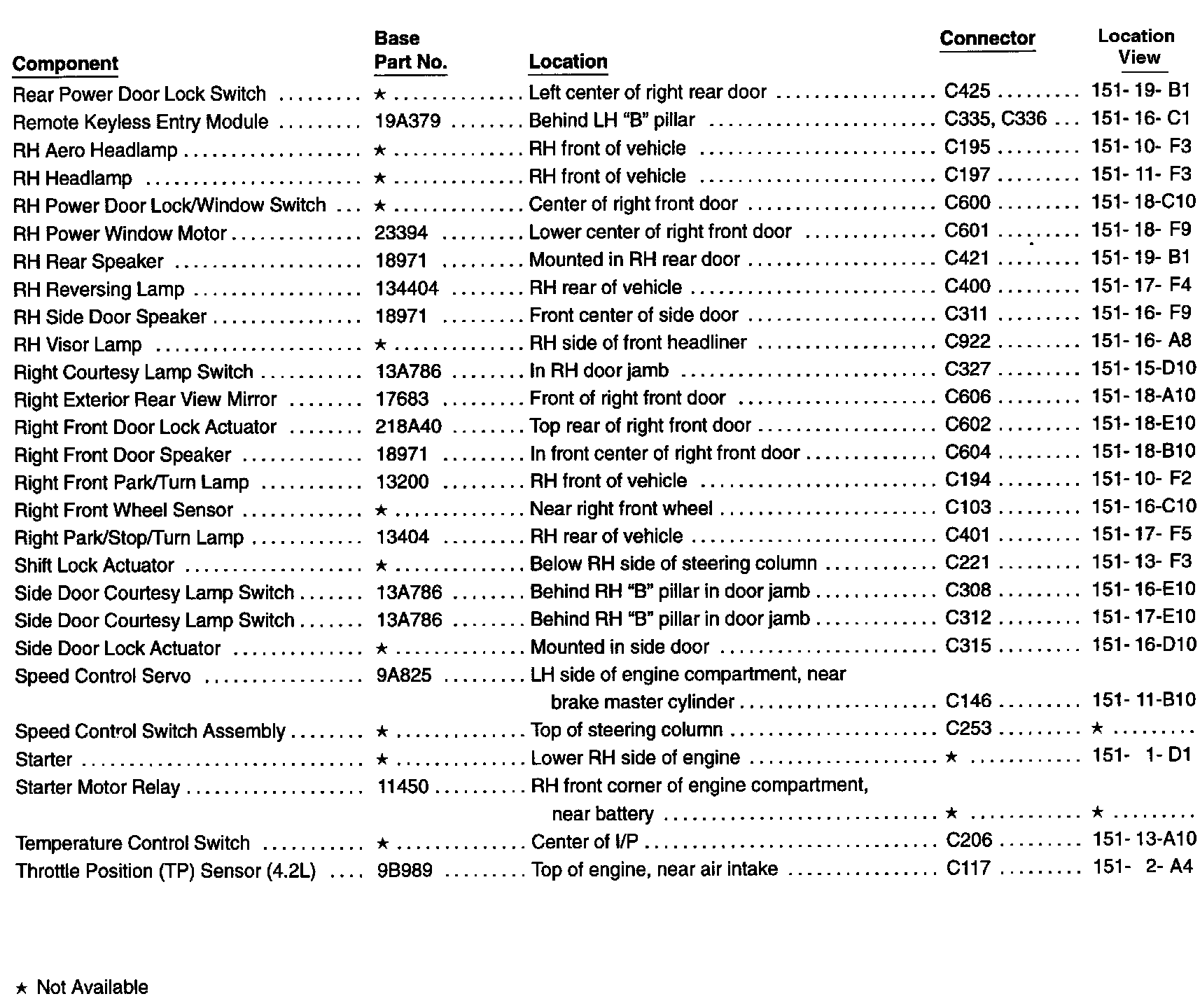

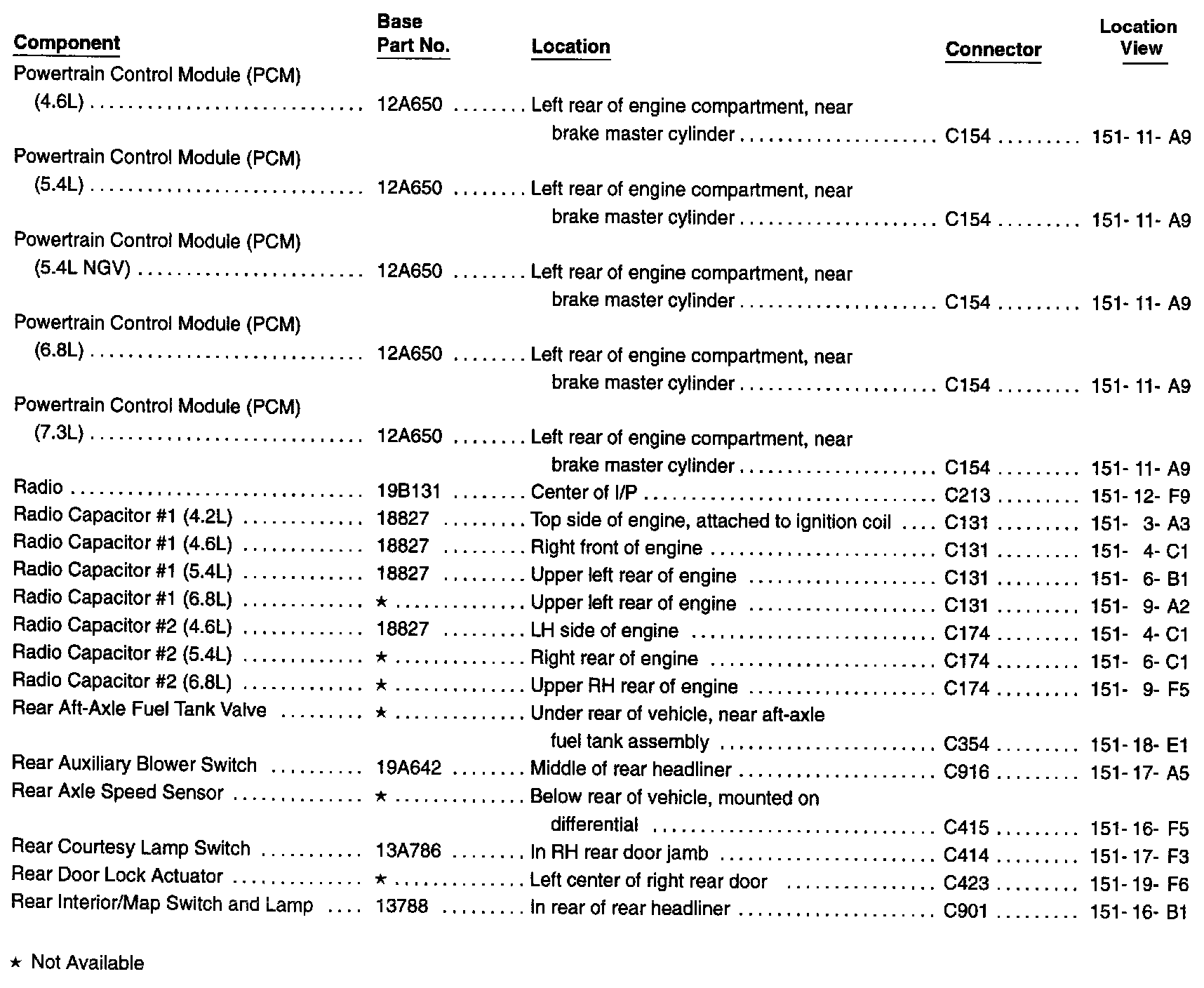

Po-Re:






Re-Th:

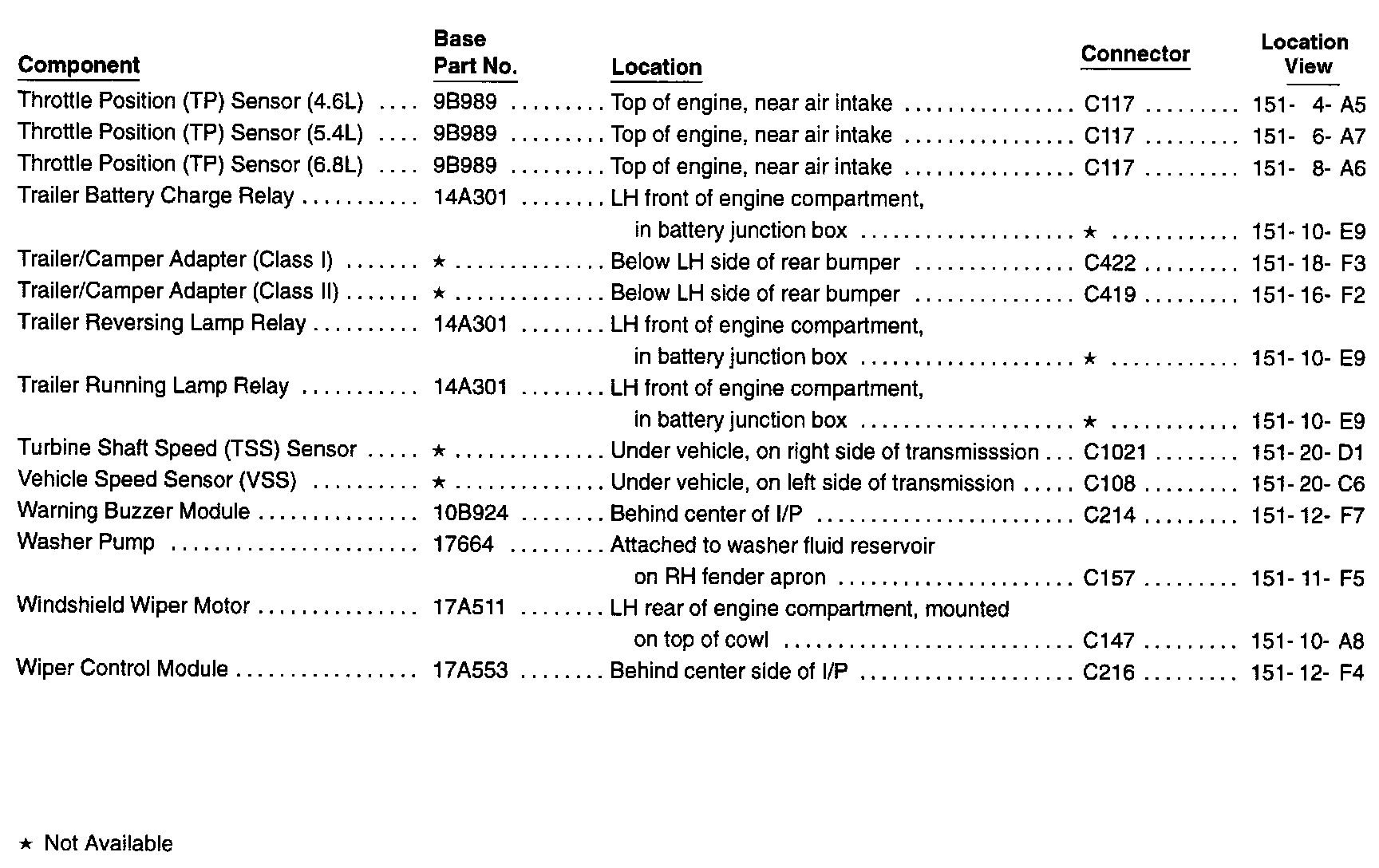

Th-Wi:
