Cruise Control Servo Cable: Testing and Inspection

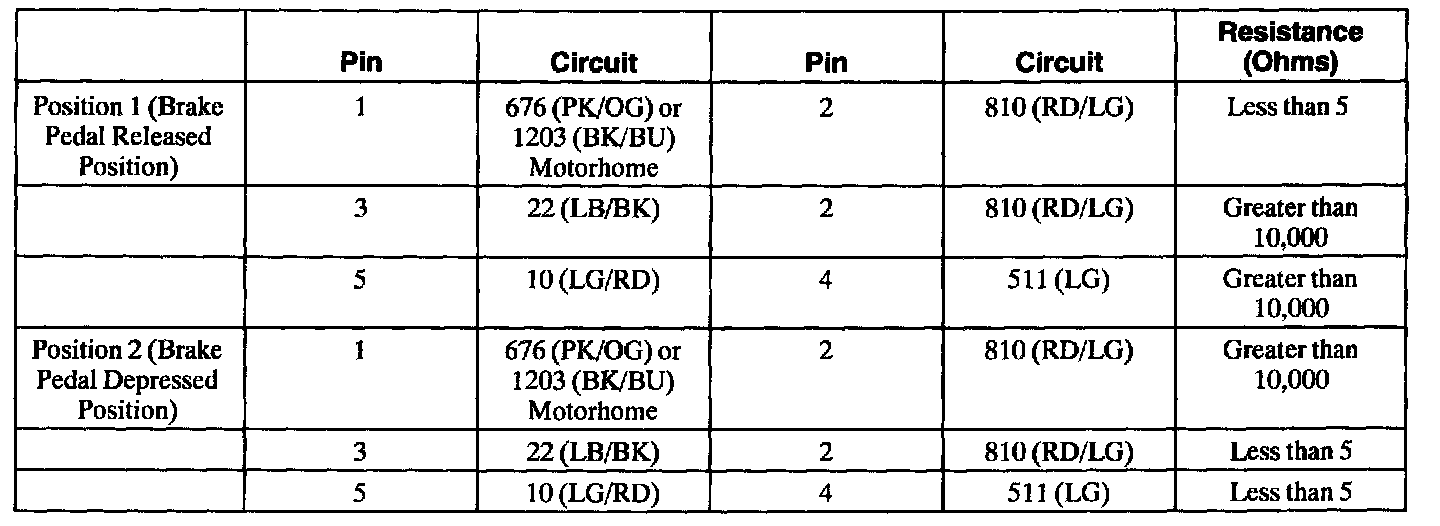

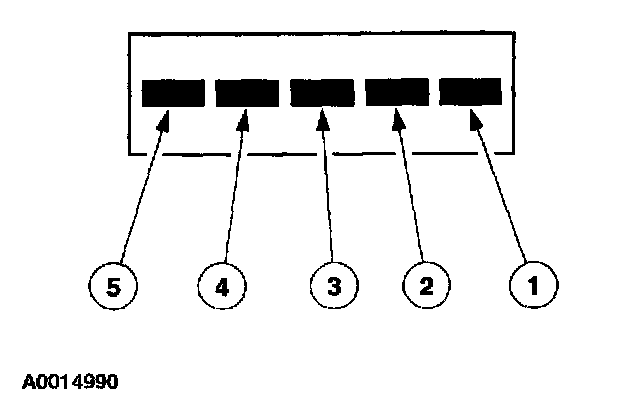

Use 73III Automotive Meter or equivalent to check the continuity between the given terminals of the BPP switch C279, component side, using the table.







If the resistance is as specified, return to the pinpoint test. Pinpoint Tests

Otherwise, install a new BPP switch.
