Compressor Clutch: Adjustments

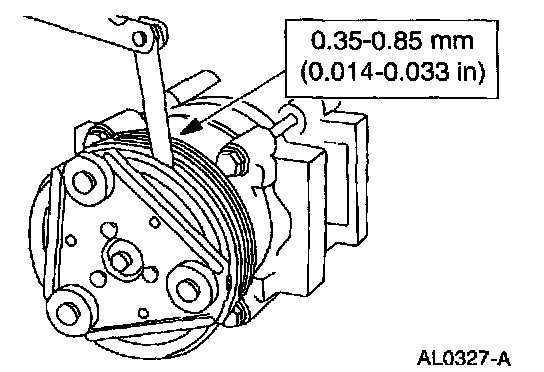

1. Check the A/C clutch air gap at three equally spaced places between the clutch hub and the A/C clutch pulley.

Compressor Clutch Components:

2. Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specification.
