Auxiliary Climate Control

REMOVAL
1. Remove the third row seat.
2. Position aside the RH rear quarter trim panel.







3. Remove the heater core cover.

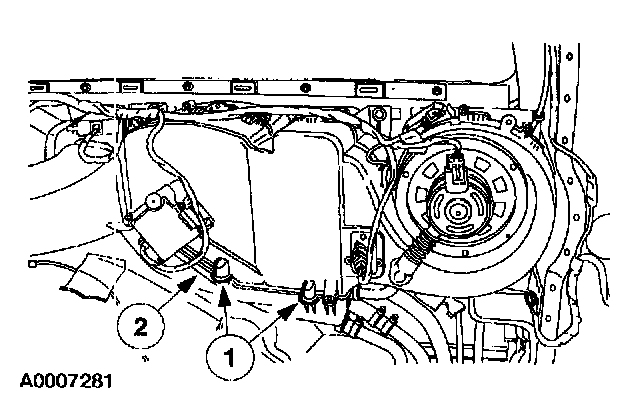

1 Remove the 8 screws.
2 Remove the heater core cover.

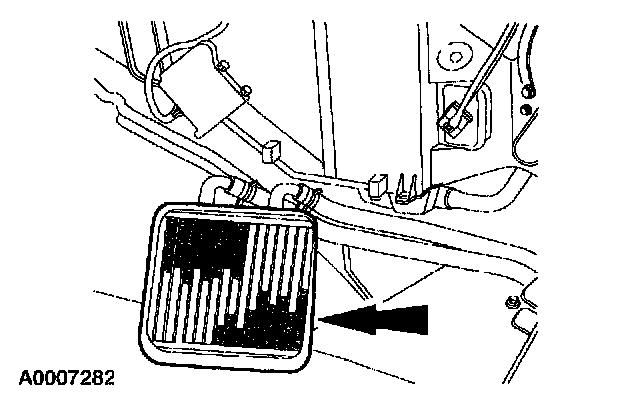

4. Remove the heater core from the housing.







5. Remove the heater core from the heater inlet and outlet hoses.

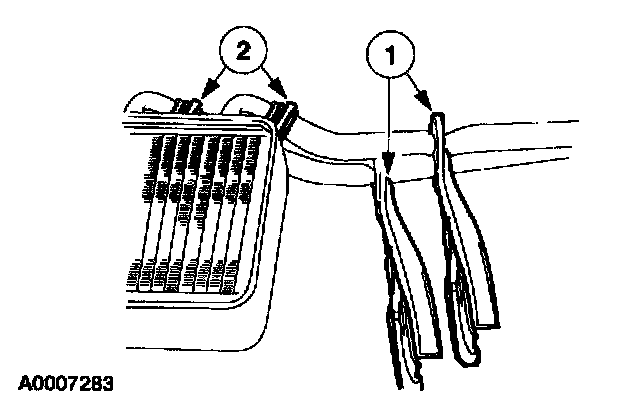

1 Clamp off the heater inlet and outlet hoses.
2 Position the constant tension clamps and disconnect the hoses from the heater core. Service and Repair

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure to correctly assemble and seal the air conditioning and heater assembly to allow efficient operation of the auxiliary climate control system.

2. Top-off the engine cooling system. For additional information, refer to Cooling System. Service and Repair
