Antilock Control, Rear

Removal

1. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

On diesel equipped vehicles, remove the battery tray.
2. On gas equipped vehicles, disconnect the battery ground cable.
3. On gas equipped vehicles, remove the engine air cleaner.
4. On gas equipped vehicles, remove the EVAP canister.

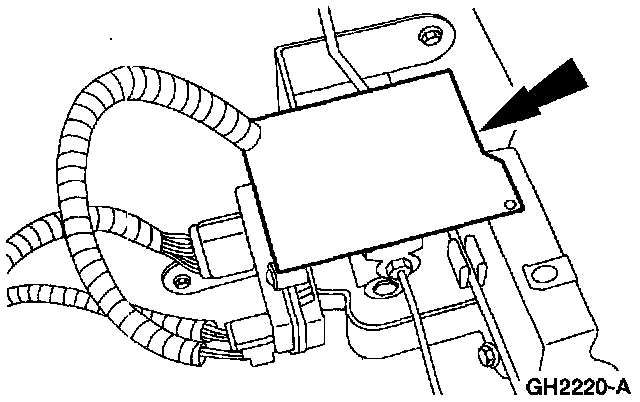

5. Remove rubber dust cover.
- Remove pushpin.

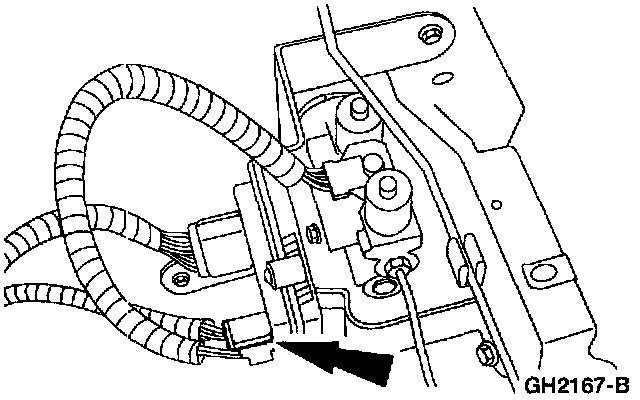

6. Disconnect the three anti-lock brake control module electrical connectors.





7. Remove the anti-lock brake control module.

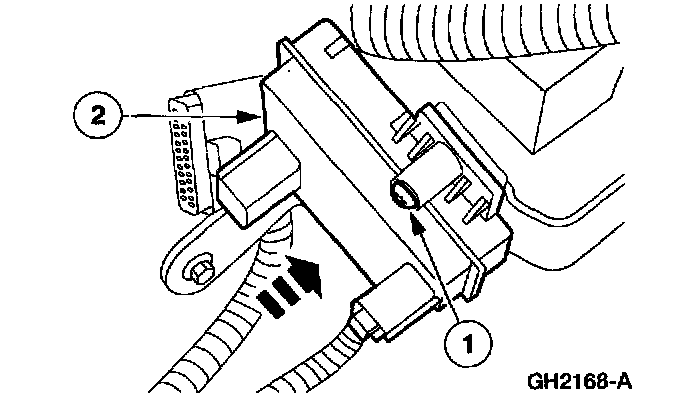

1 Remove the screw.
2 Lift and remove the anti-lock brake control module.

Installation





1. Note: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mile) or more to relearn the strategy.

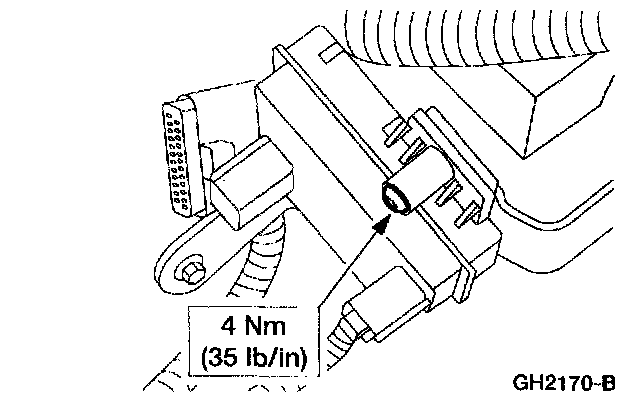

To install, reverse the removal procedure.
