Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

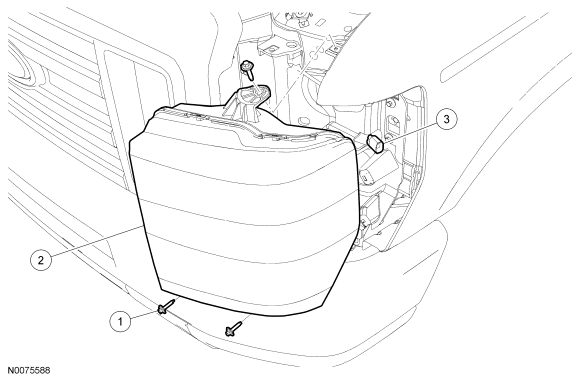

| Item |
Part Number |
Description |
| 1 |
N606677 |
Headlamp assembly bolts (3 required) |
| 2 |
13008 |
Headlamp assembly |
| 3 |
- |
Headlamp assembly electrical connectors (part of 14290) |
Courtesy of FORD MOTOR CO.

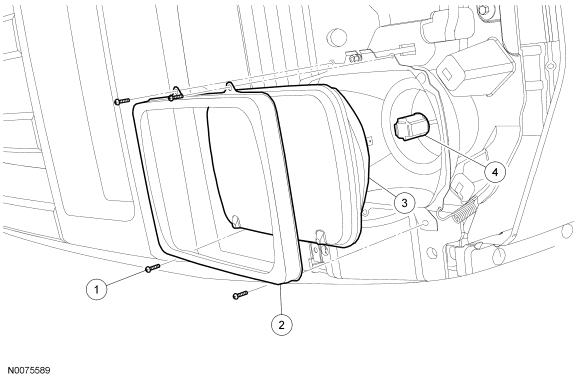

| Item |
Part Number |
Description |
| 1 |
390723 |
Headlamp retaining ring screws (4 required) |
| 2 |
13015 |
Headlamp retaining ring |
| 3 |
13007 |
Headlamp assembly |
| 4 |
- |
Headlamp assembly electrical connector (part of 14290) |
