Identification Codes: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

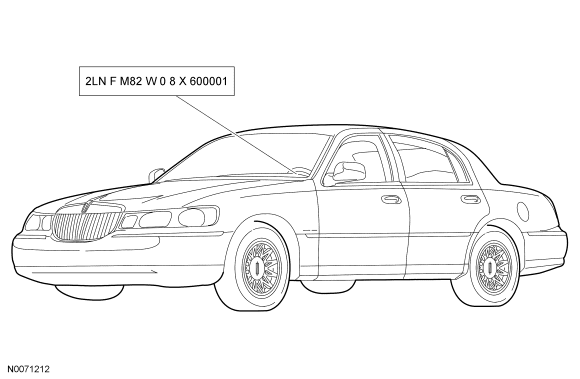

Fig 1: Vehicle Identification Number (VIN) Location
GF0047416Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.

If the VIN plate requires replacement, authorized dealers must contact their respective regional office.

Fig 2: Vehicle Identification Codes
GF0047417Courtesy of FORD MOTOR CO.
Item Description
1 World manufacturer identifier (WMI)
2 Restraint type code
3 Vehicle line and series code
4 Engine code
5 Vehicle identification number (VIN) check digit code
6 Model year code
7 Assembly plant code
8 Production sequence number
