Audio Control Module (ACM): Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

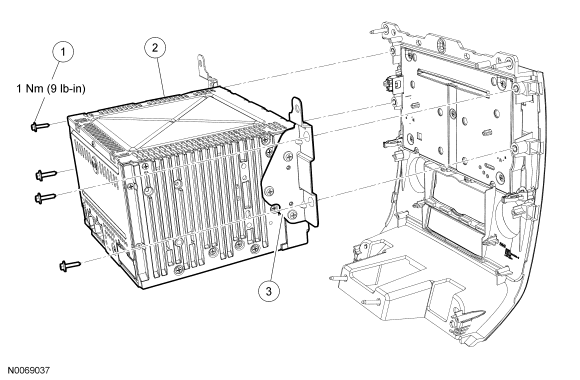

Fig 1: All Audio Control Modules (ACM) Except Navigation With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W790110-S	Audio control module (ACM) screws (4 required)
2	18806	ACM
3	19A028	ACM brackets (2 required)

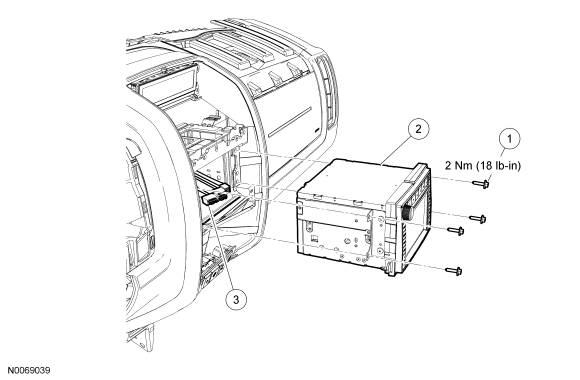

Fig 2: Navigation Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713306-S	ACM screws (4 required)
2	18806	ACM
3	-	ACM antenna and electrical connectors
