Front Display Interface Module (FDIM): Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

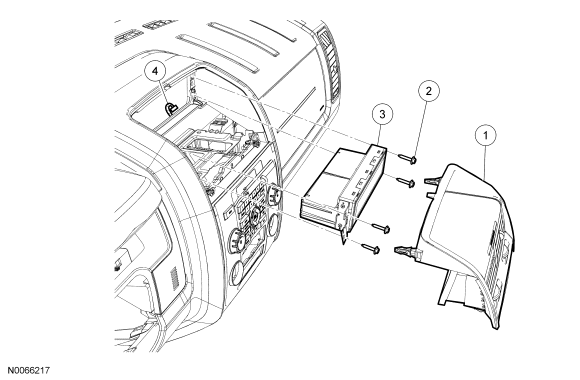

| Item |
Part Number |
Description |
| 1 |
7804302 |
Instrument panel upper finish panel |
| 2 |
W710147-S |
Front display interface module (FDIM) screws (4 required) |
| 3 |
14D008 |
FDIM |
| 4 |
- |
FDIM electrical connector (part of 14401) |
