Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

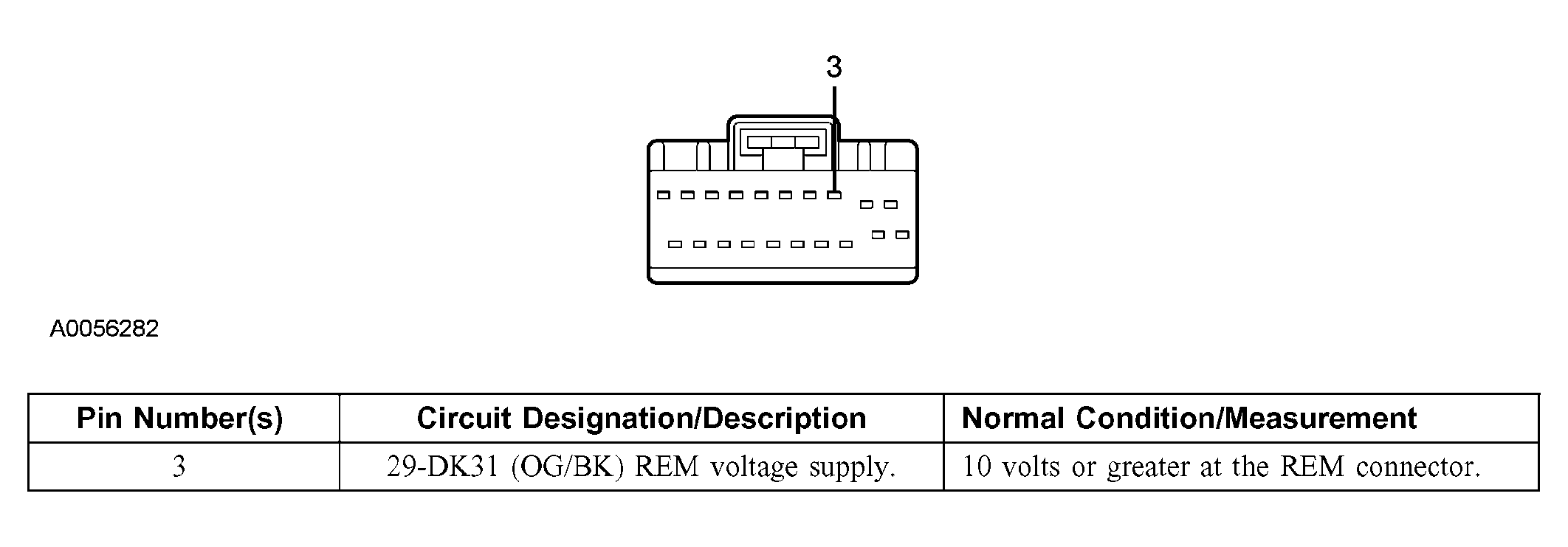

Fig 1: Identifying Rear Electronic Module C420b - Connector Pinout

Courtesy of FORD MOTOR CO.

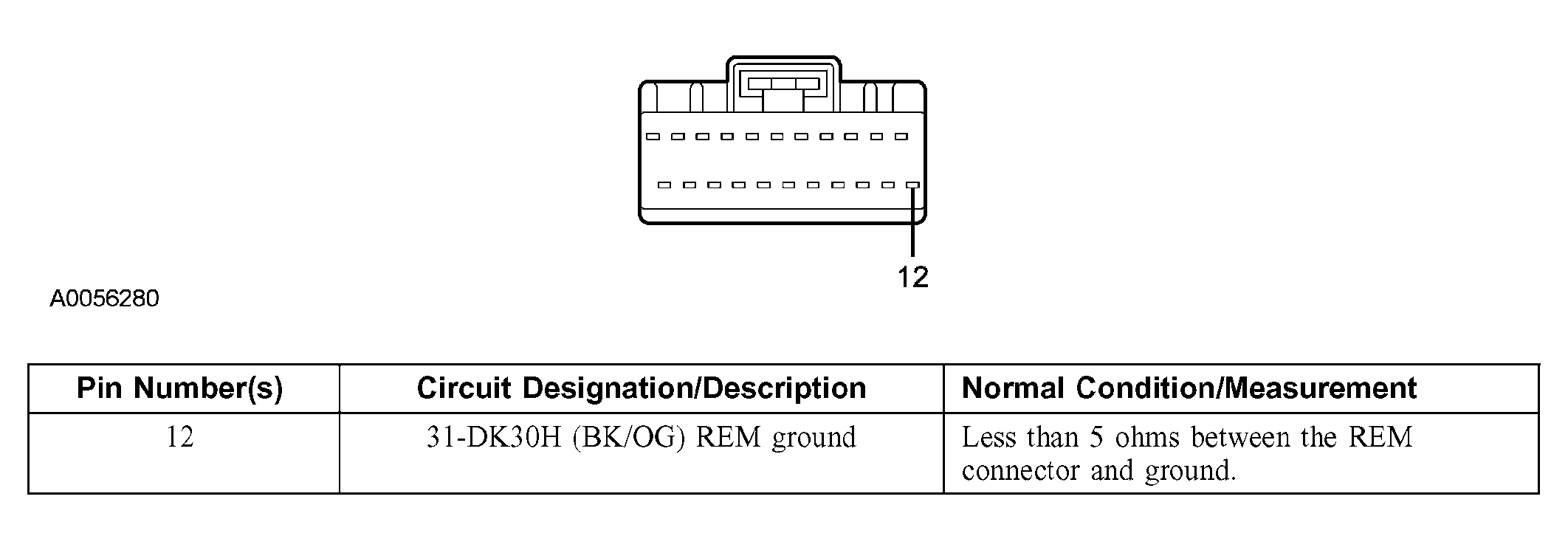

Fig 2: Identifying Rear Electronic Module C420c - Connector Pinout

Courtesy of FORD MOTOR CO.

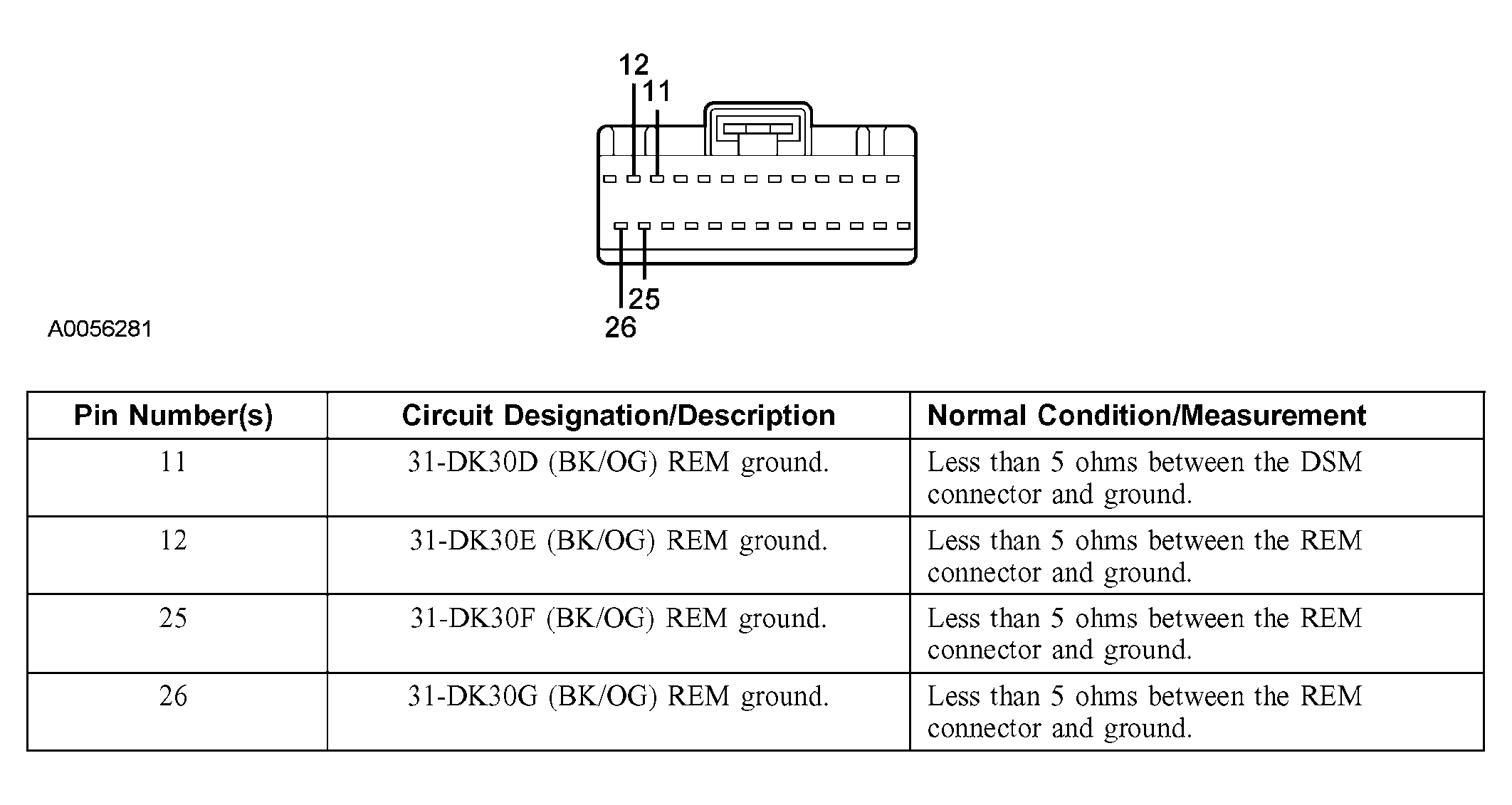

Fig 3: Identifying Rear Electronic Module C420d - Connector Pinout

Courtesy of FORD MOTOR CO.
