Front Suspension System - 4WD Leaf Spring: Description

Monobeam axle system, consisting of a solid drive axle with ball joint-supported steering knuckles. All drive axles are suspended by semi-elliptic leaf-type springs. See Fig 1.

NOTE: For additional information on 4WD drive axles, see appropriate article in DRIVE AXLES.

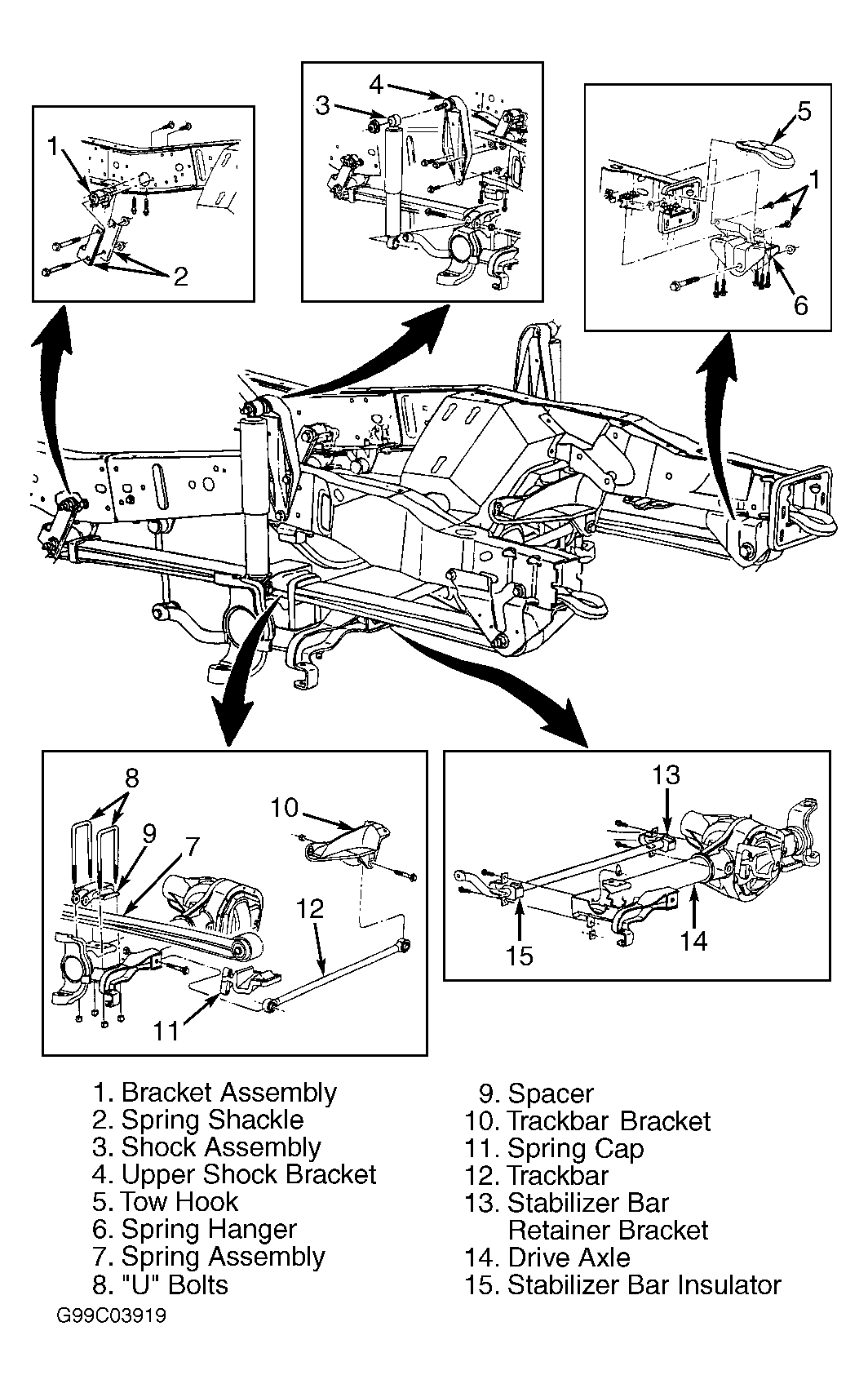

Fig 1: Exploded View Of Suspension Components

Courtesy of FORD MOTOR CO.
