Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
ITEM DESCRIPTION

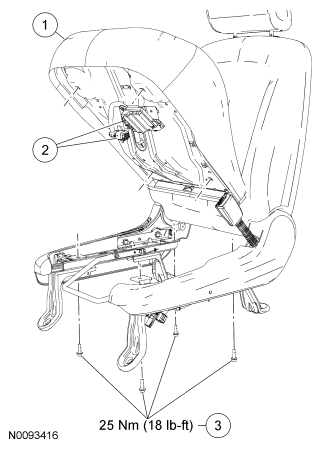

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat cushion assembly |
| 2 | - | Electrical connectors (part of 603B02) |
| 3 | - | Seat track-to-cushion frame bolts |
ITEM DESCRIPTION

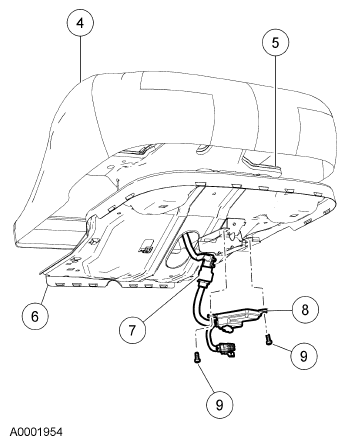

| Item | Part Number | Description |
|---|---|---|
| 4 | 62900 | Seat cushion trim cover |
| 5 | 603B02 | Occupant Classification Sensor (OCS) assembly |
| 6 | - | Seat cushion pan |
| 7 | - | Pressure sensor (part of 603B02) |
| 8 | - | Occupant Classification System Module (OCSM) (part of 603B02) |
| 9 | 391950 | OCSM rivets (part of 603B02) (2 required) |
