Rear Lamp Assembly: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown, LH side similar.

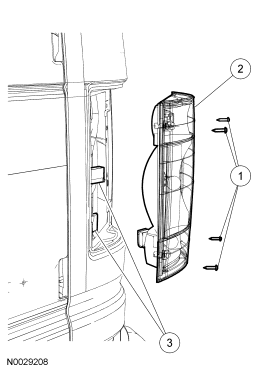

Fig 1: Exploded View Of Rear Lamp Assembly
GF0012924Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N806474 Rear lamp assembly screws (4 required)
2 13404/13405 Rear lamp assembly (RH/LH)
3 - Rear lamp assembly electrical connector (part of 14405)
