Power Steering Pump: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Installer Set, Teflon® Seal	211-D027 (D90P-3517-A) or equivalent

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

NOTE: Gas engine shown, diesel engine similar.

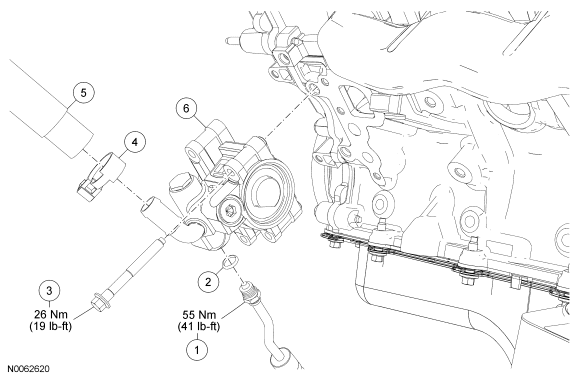

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A719	Pressure line-to-pump fitting
2	388898	Teflon® seal
3	N806176	Power steering pump bolt (4.6L, 5.4L, 6.8L) (3 required)
3	N806176	Power steering pump bolt (6.0L) (4 required)
4	3C750	Clamp
5	3691	Power steering pump supply hose
6	3A674	Power steering pump
