In-Vehicle Temperature Sensor - MKZ: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

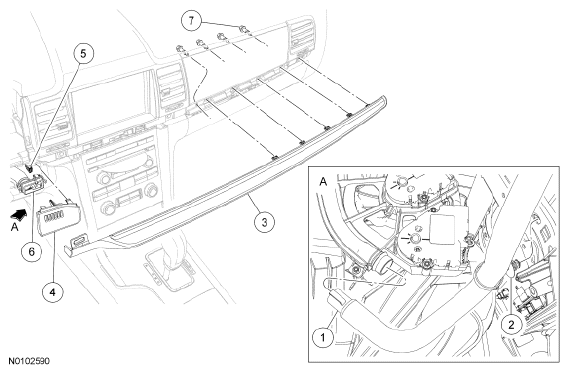

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | In-vehicle temperature sensor aspirator hose connection (part of 19C734) |
| 2 | - | In-vehicle temperature sensor aspirator hose pin-type retainer (part of 19C734) |
| 3 | 54044A90 | RH instrument panel finish molding |
| 4 | 54046A76 | In-vehicle temperature sensor grille |
| 5 | - | In-vehicle temperature sensor electrical connector (part of 14401) |
| 6 | 19C734 | In-vehicle temperature sensor |
| 7 | W707607 | RH instrument panel finish molding screw (4 required) |
