Right Front Lumbar Control Switch Connector - C331

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

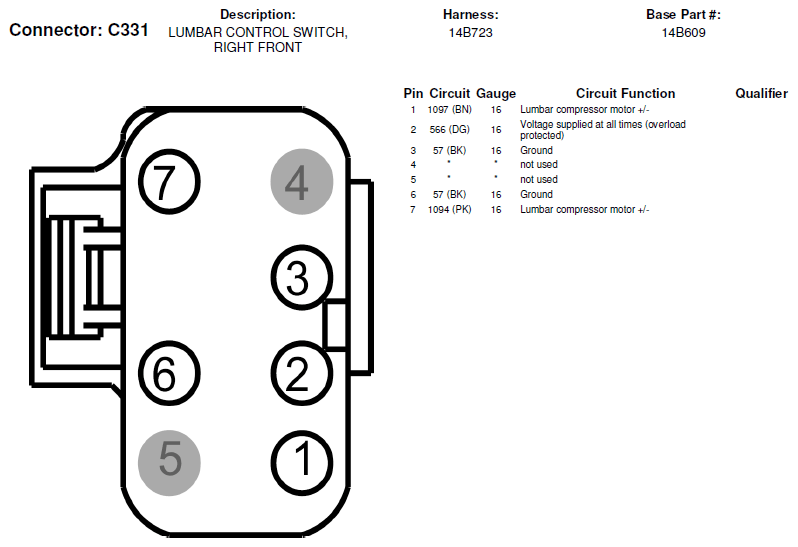

Fig 1: Right Front Lumbar Control Switch Connector End View (C331)
G06414190Courtesy of FORD MOTOR CO.
