Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

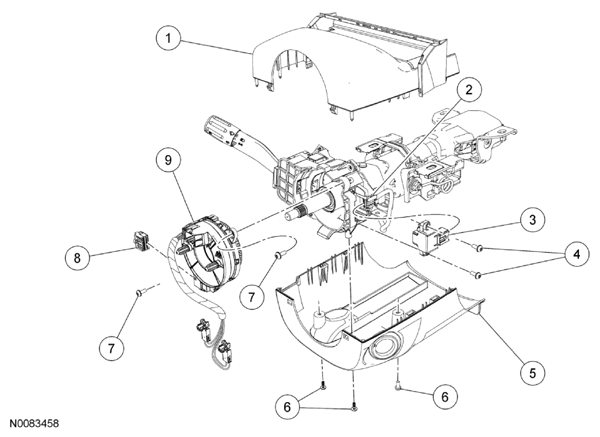

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 3 | 3F818 | Steering wheel rotation sensor |
| 4 | W506942 | Steering wheel rotation sensor screws (2 required) |
| 5 | 3K512 | Lower steering column shroud |
| 6 | - | Lower steering column shroud screws (3 required) (part of 3K512) |
| 7 | W506942 | Clockspring screws (2 required) |
| 8 | - | Clockspring electrical connector (part of 14401) |
| 9 | 14A664 | Clockspring |
