Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

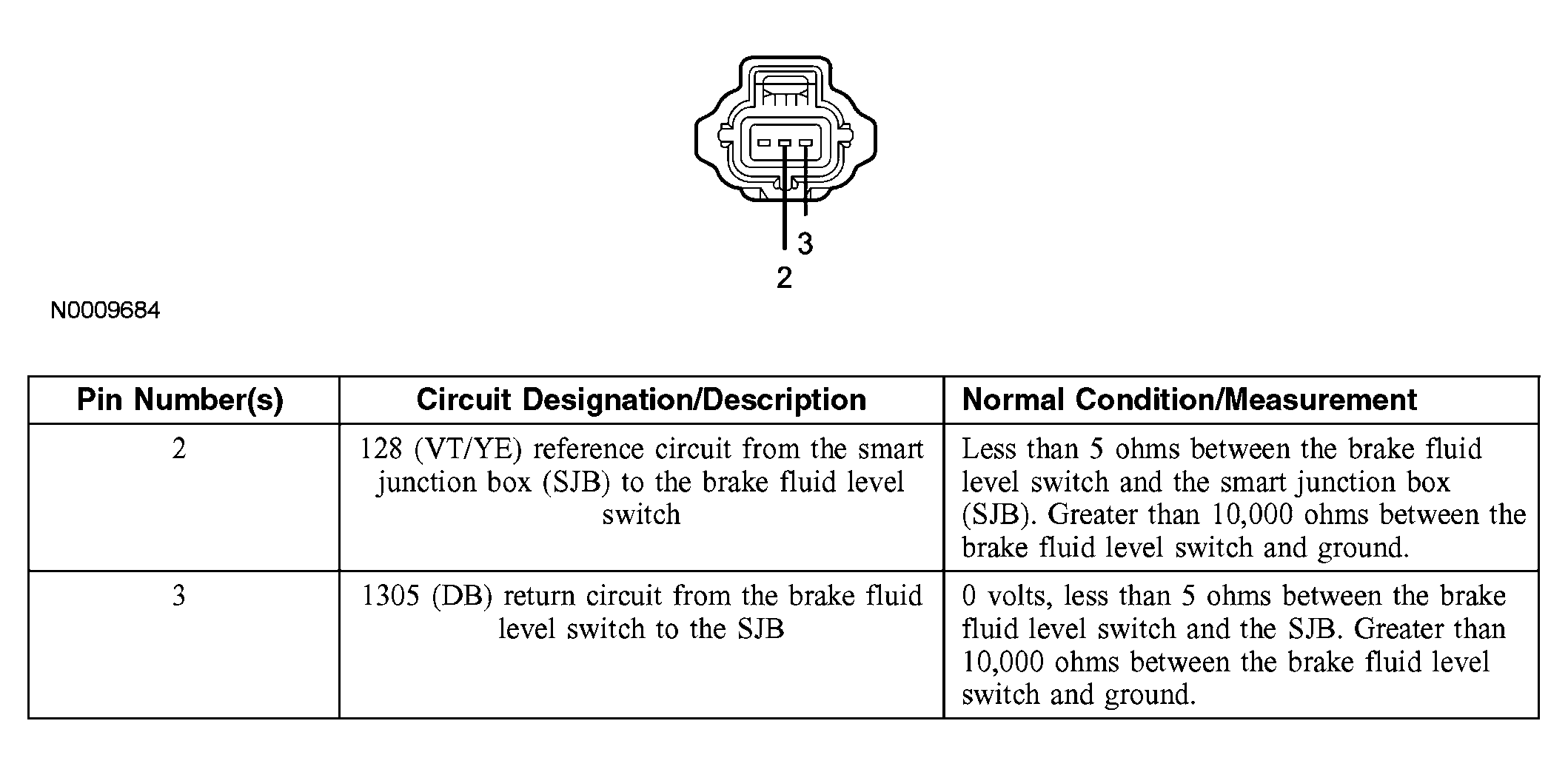

Fig 1: Identifying Brake Fluid Level Switch Connector C124

Courtesy of FORD MOTOR CO.

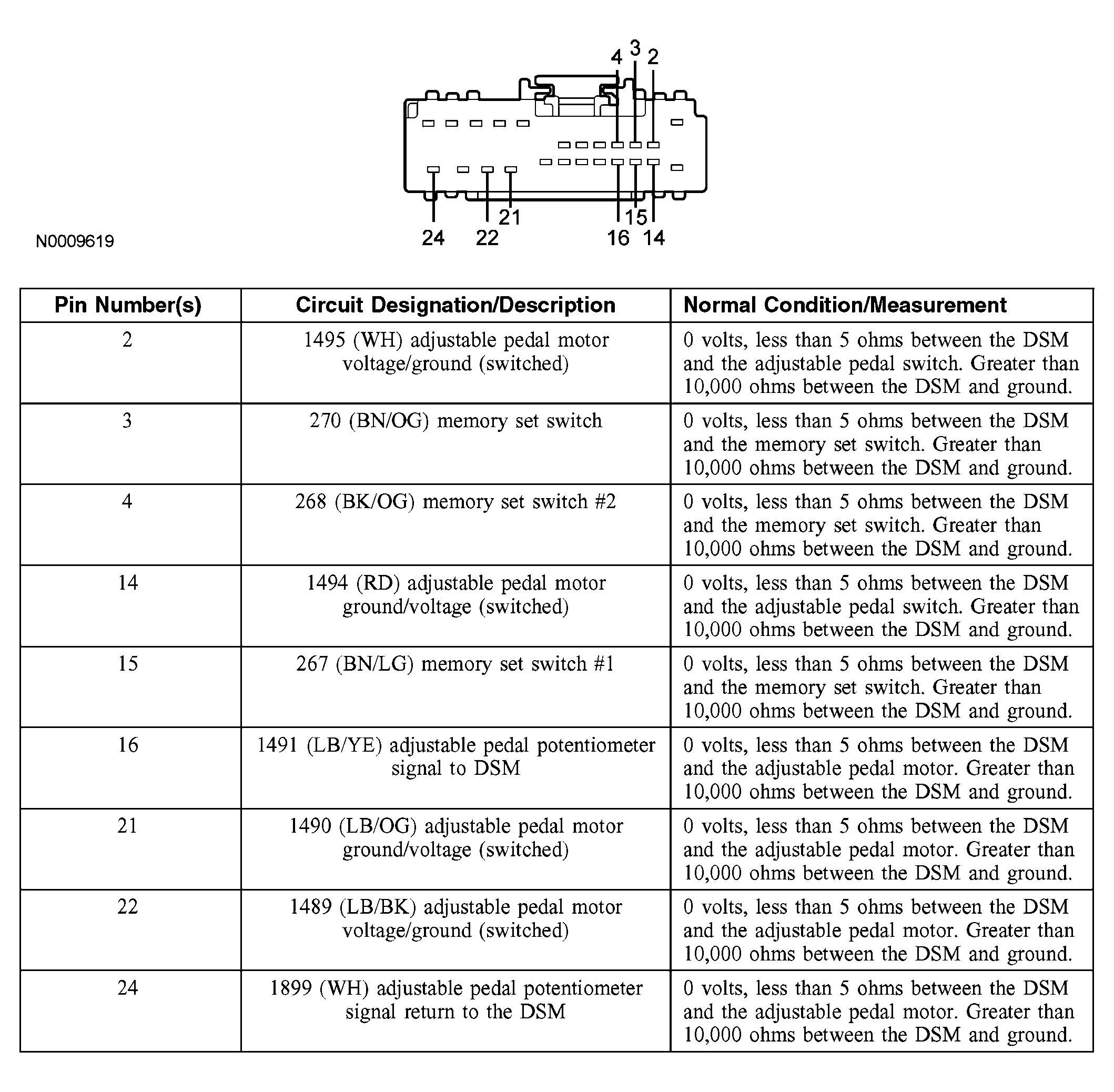

Fig 2: Identifying Driver Seat Module (DSM) C341c

Courtesy of FORD MOTOR CO.

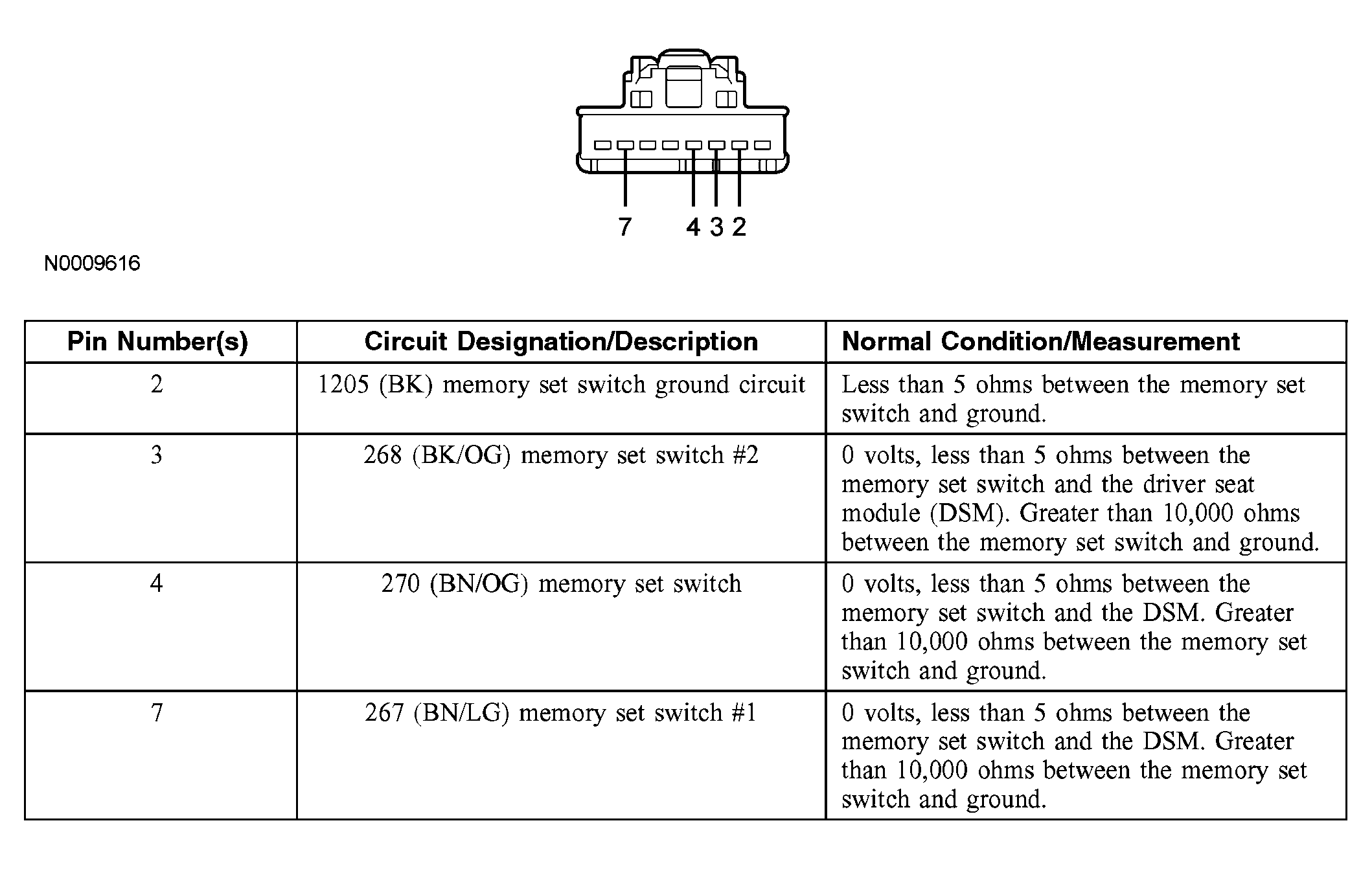

Fig 3: Identifying Memory Set Switch C503

Courtesy of FORD MOTOR CO.

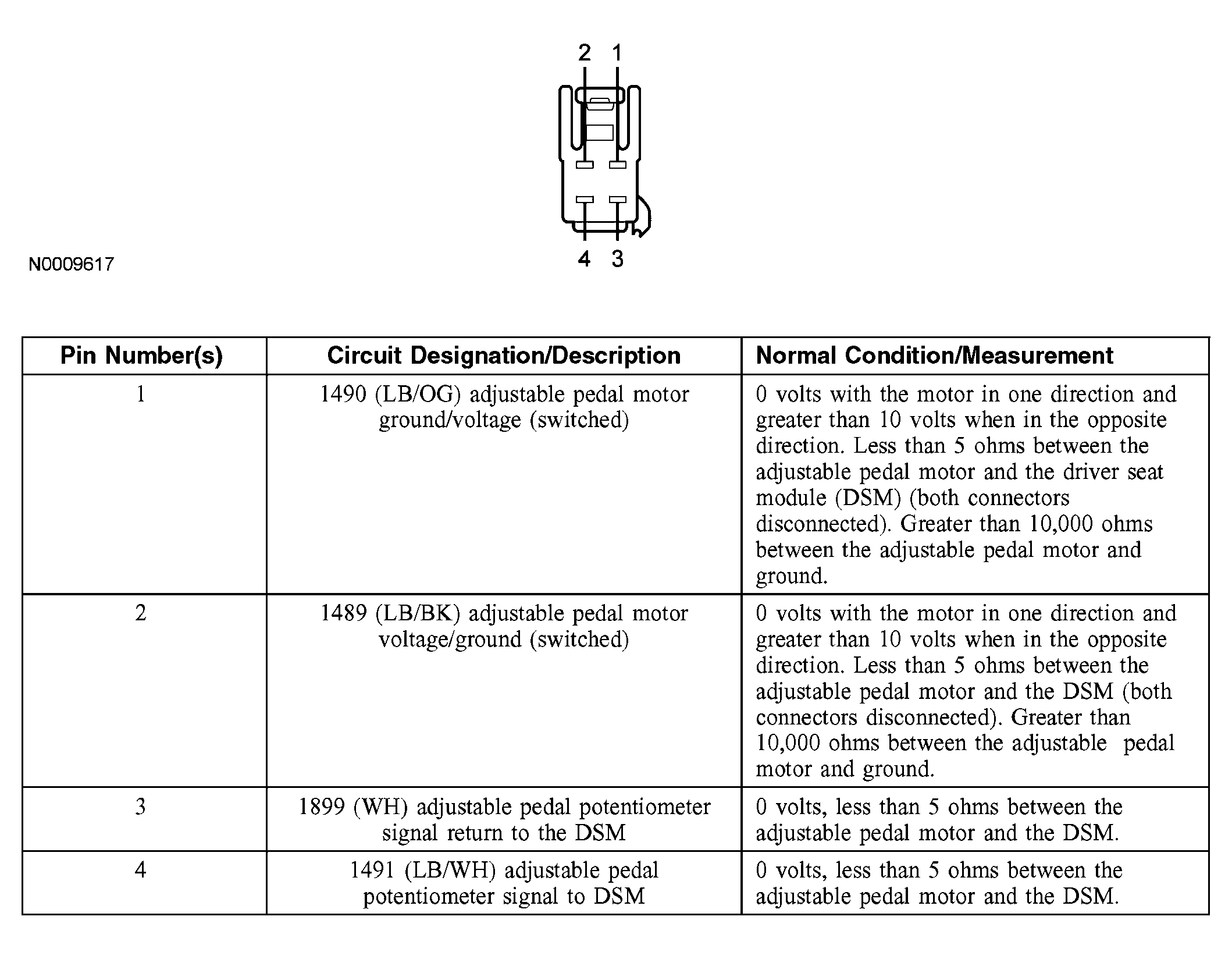

Fig 4: Identifying Adjustable Pedal Motor C2003

Courtesy of FORD MOTOR CO.

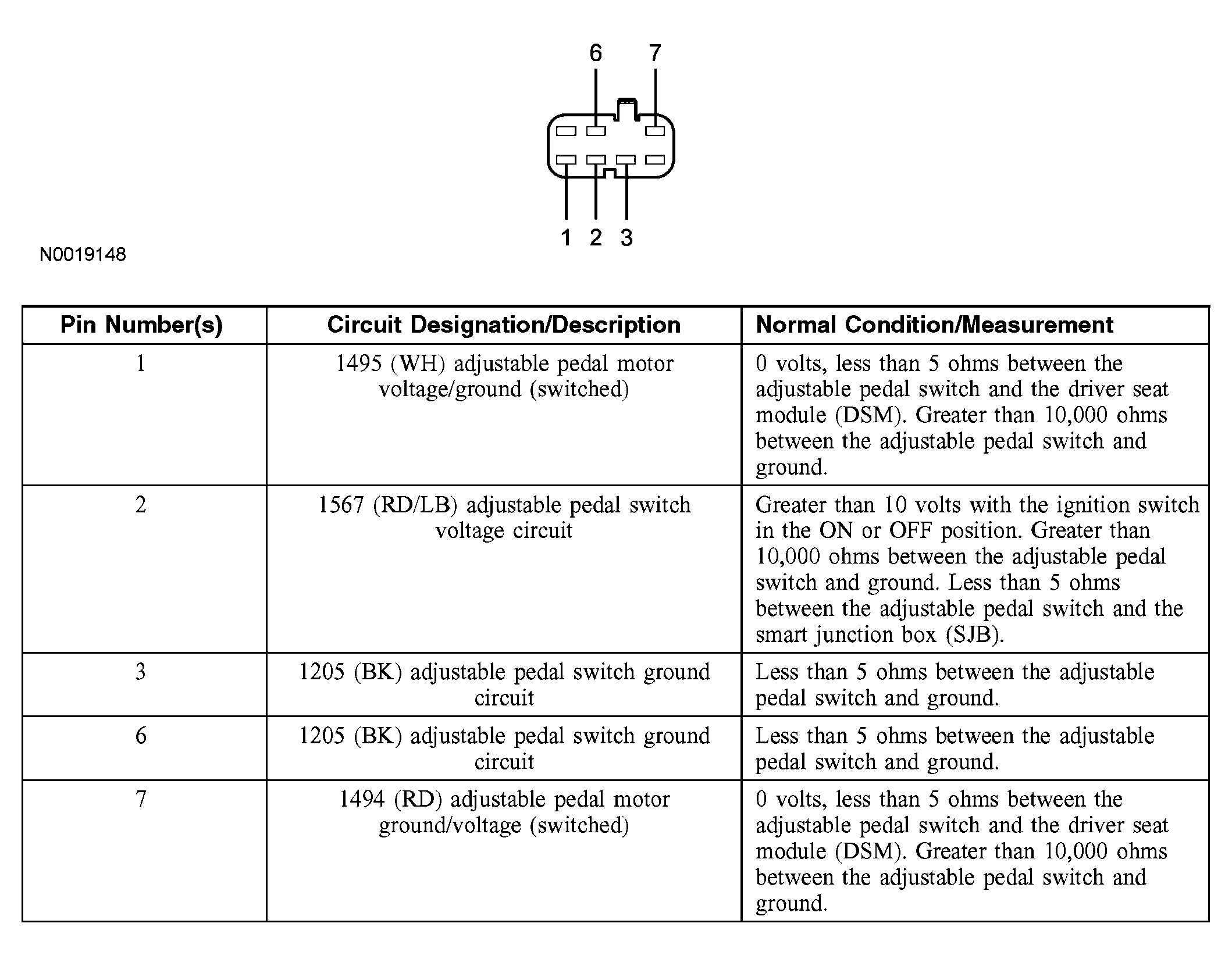

Fig 5: Identifying Adjustable Pedal Switch C2089 (Vehicles Built Before 1/2005)

Courtesy of FORD MOTOR CO.

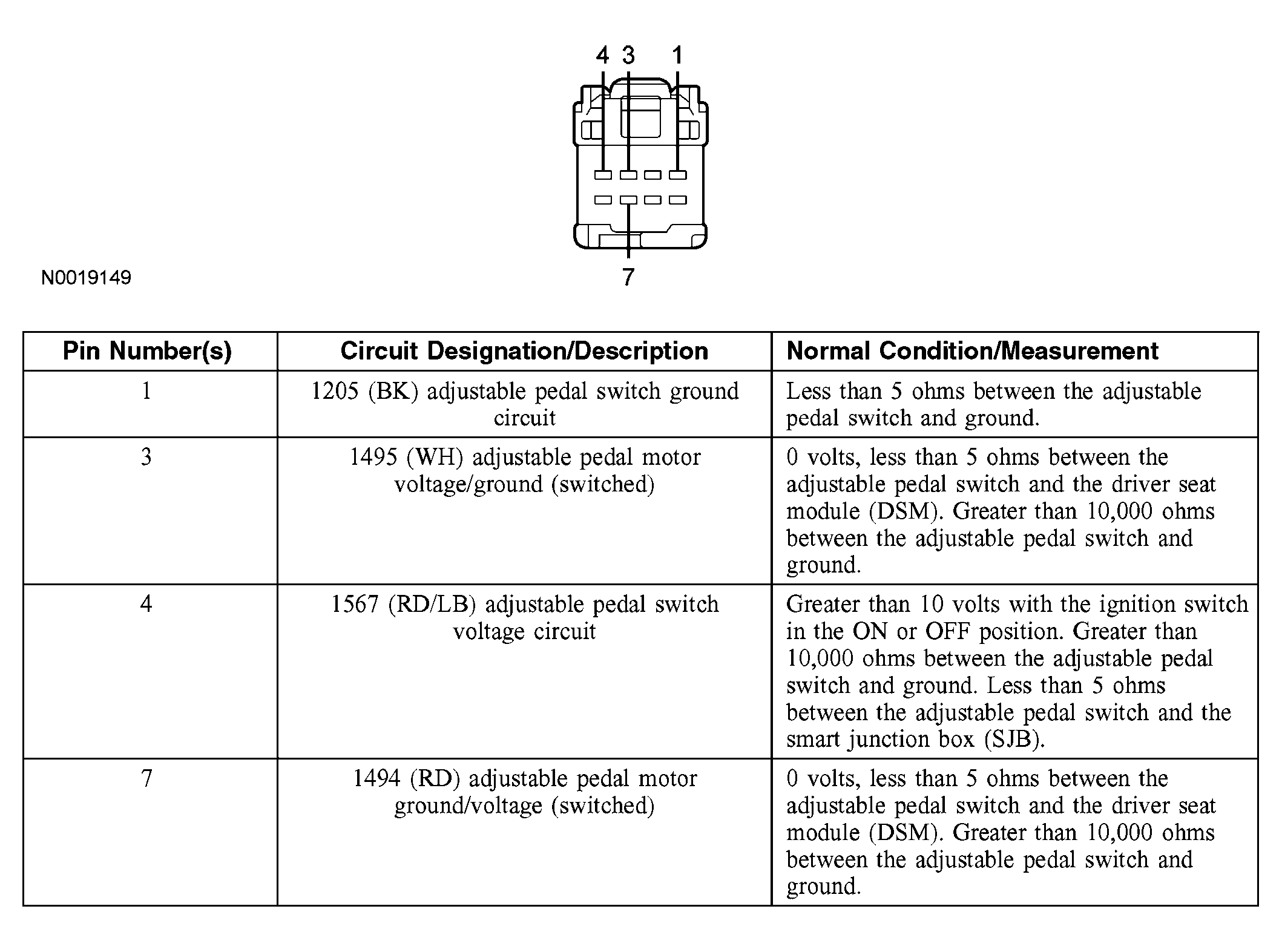

Fig 6: Identifying Adjustable Pedal Switch C2089 (Vehicles Built Before 1/2005)

Courtesy of FORD MOTOR CO.

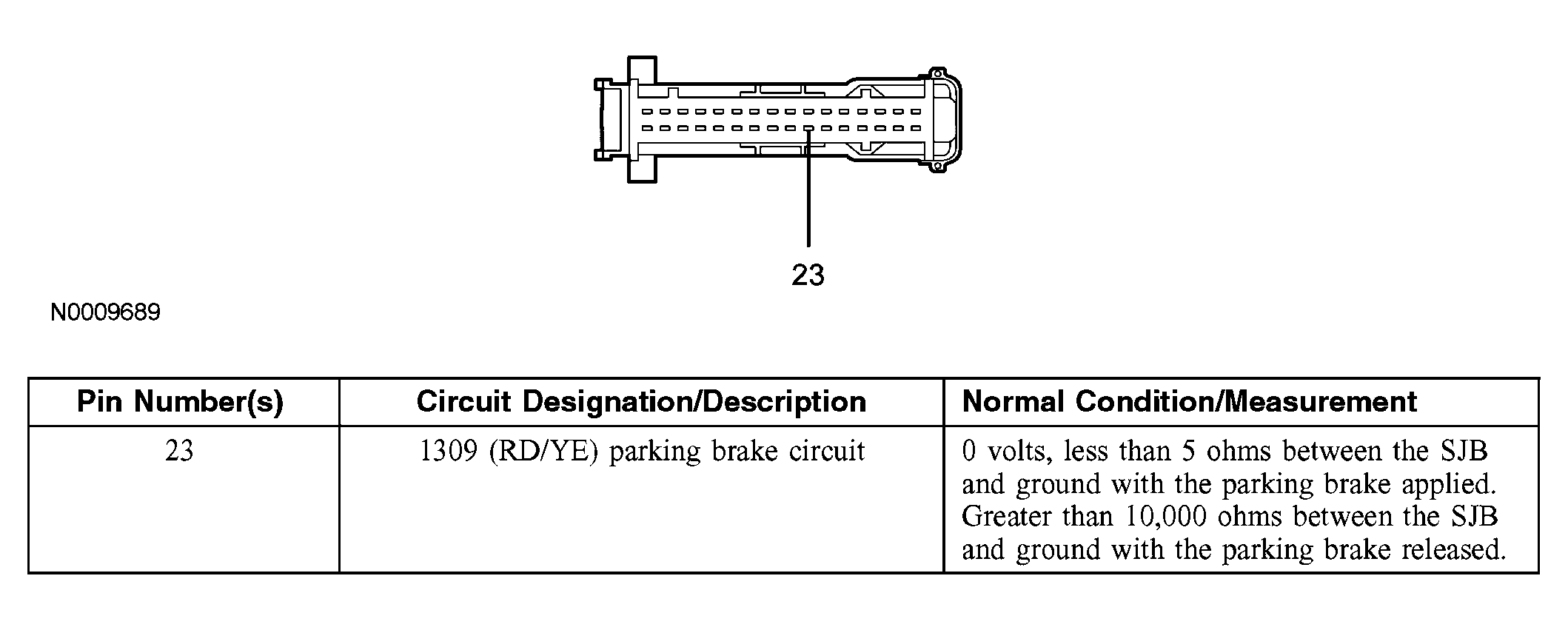

Fig 7: Identifying Smart Junction Box (SJB) C2280c

Courtesy of FORD MOTOR CO.
