Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

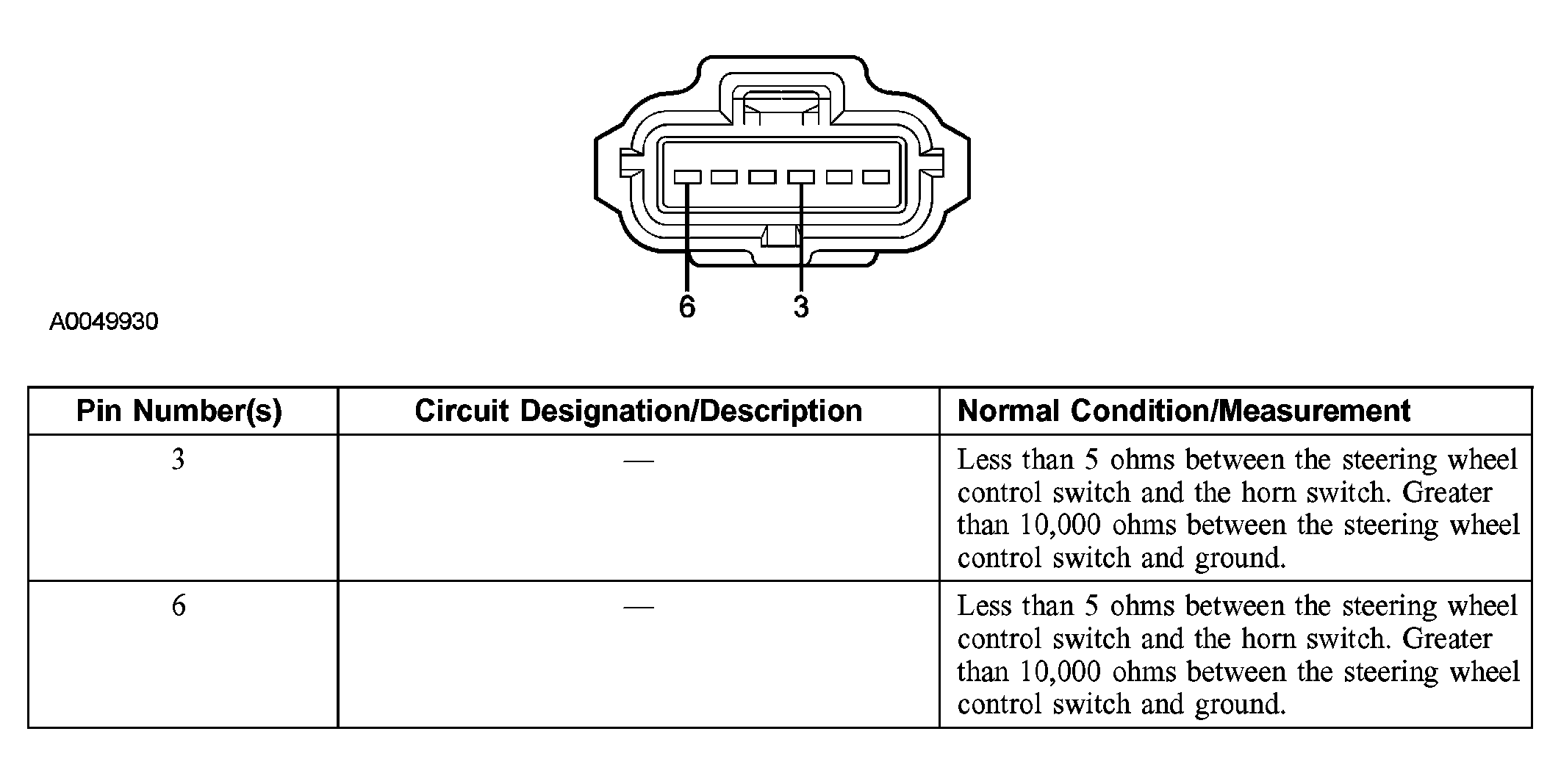

Fig 1: Connector Circuit Reference - Horn Switch Connector

Courtesy of FORD MOTOR CO.

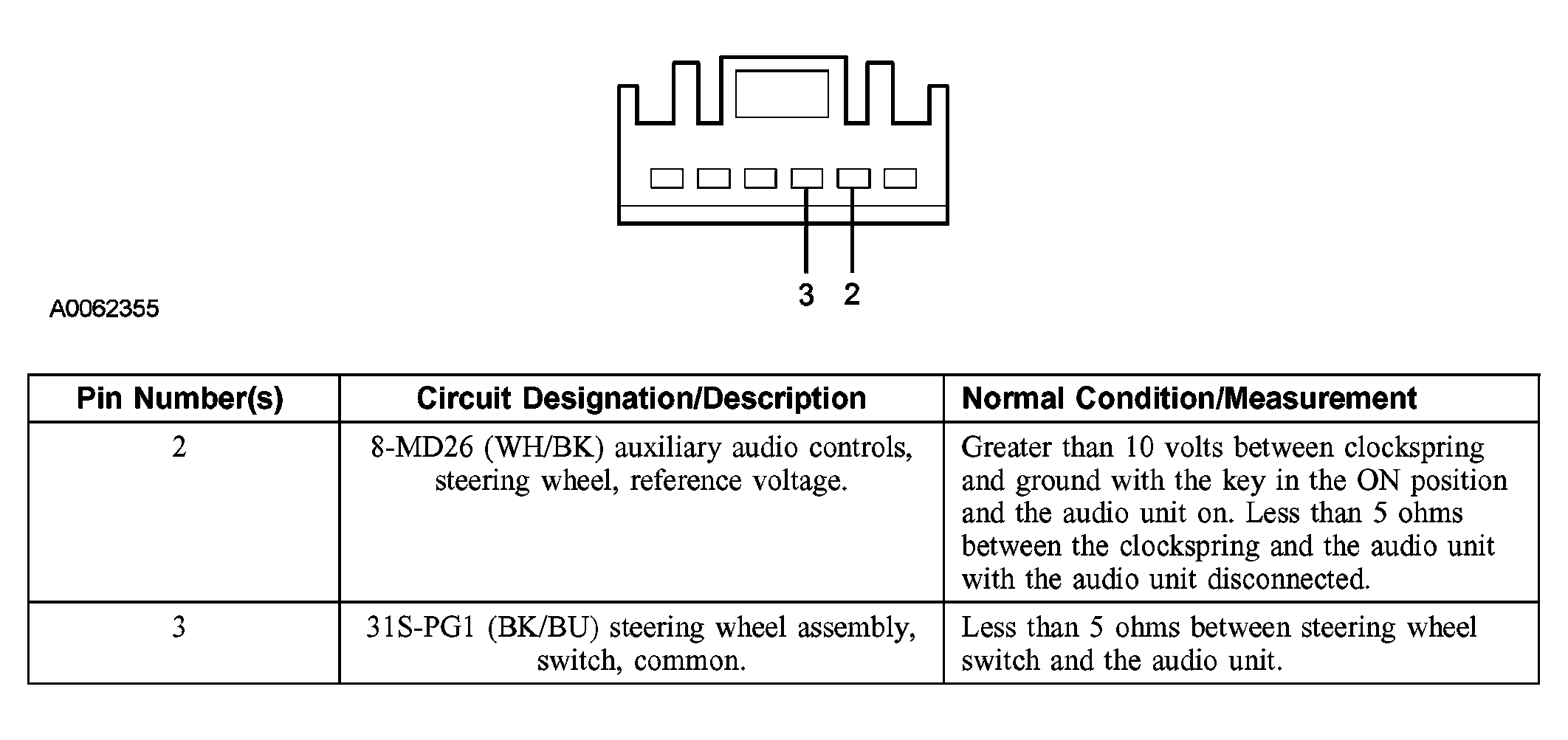

Fig 2: Connector Circuit Reference - Clockspring C218B

Courtesy of FORD MOTOR CO.

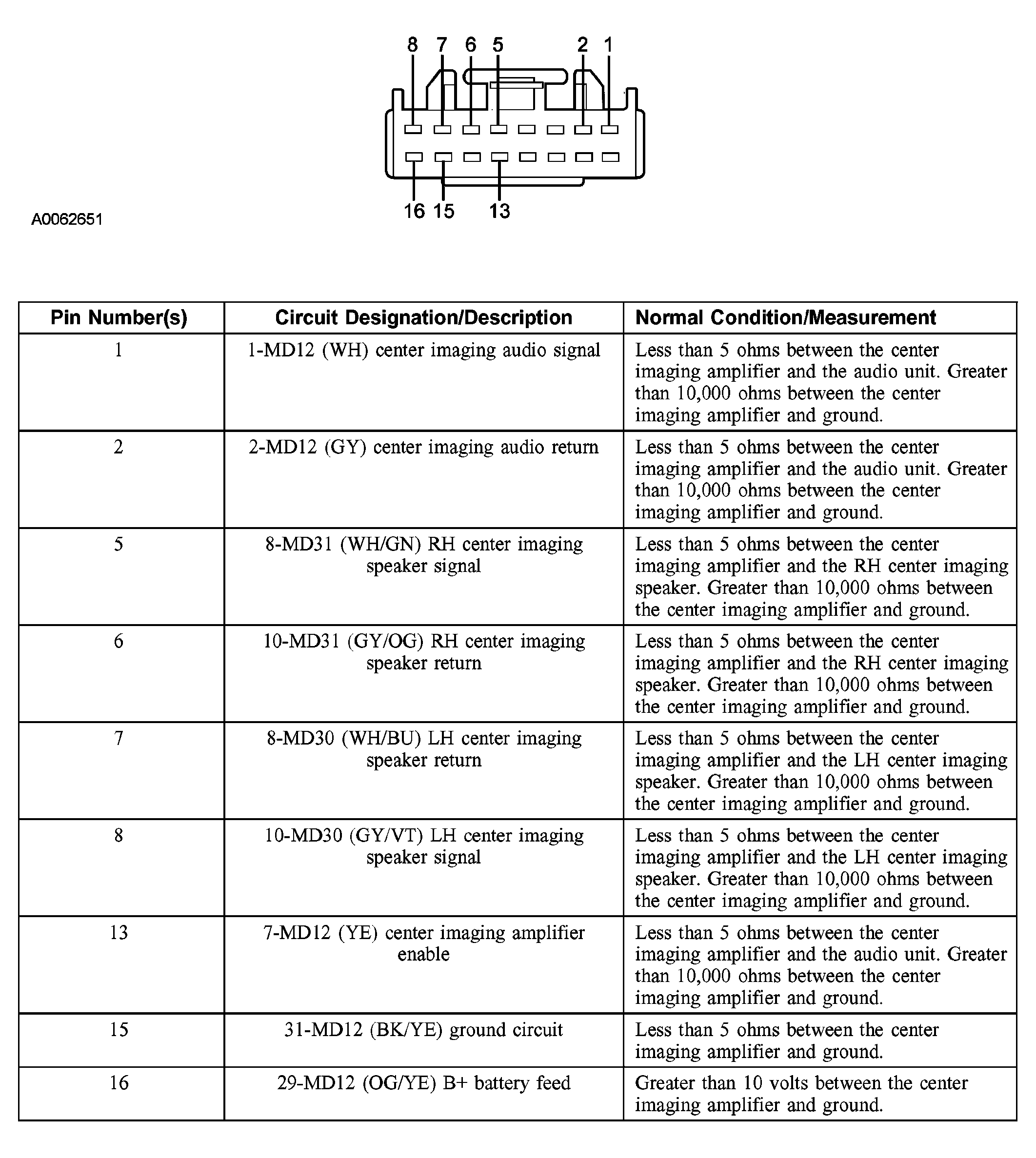

Fig 3: Connector Circuit Reference - Center Imaging Amplifier C225

Courtesy of FORD MOTOR CO.

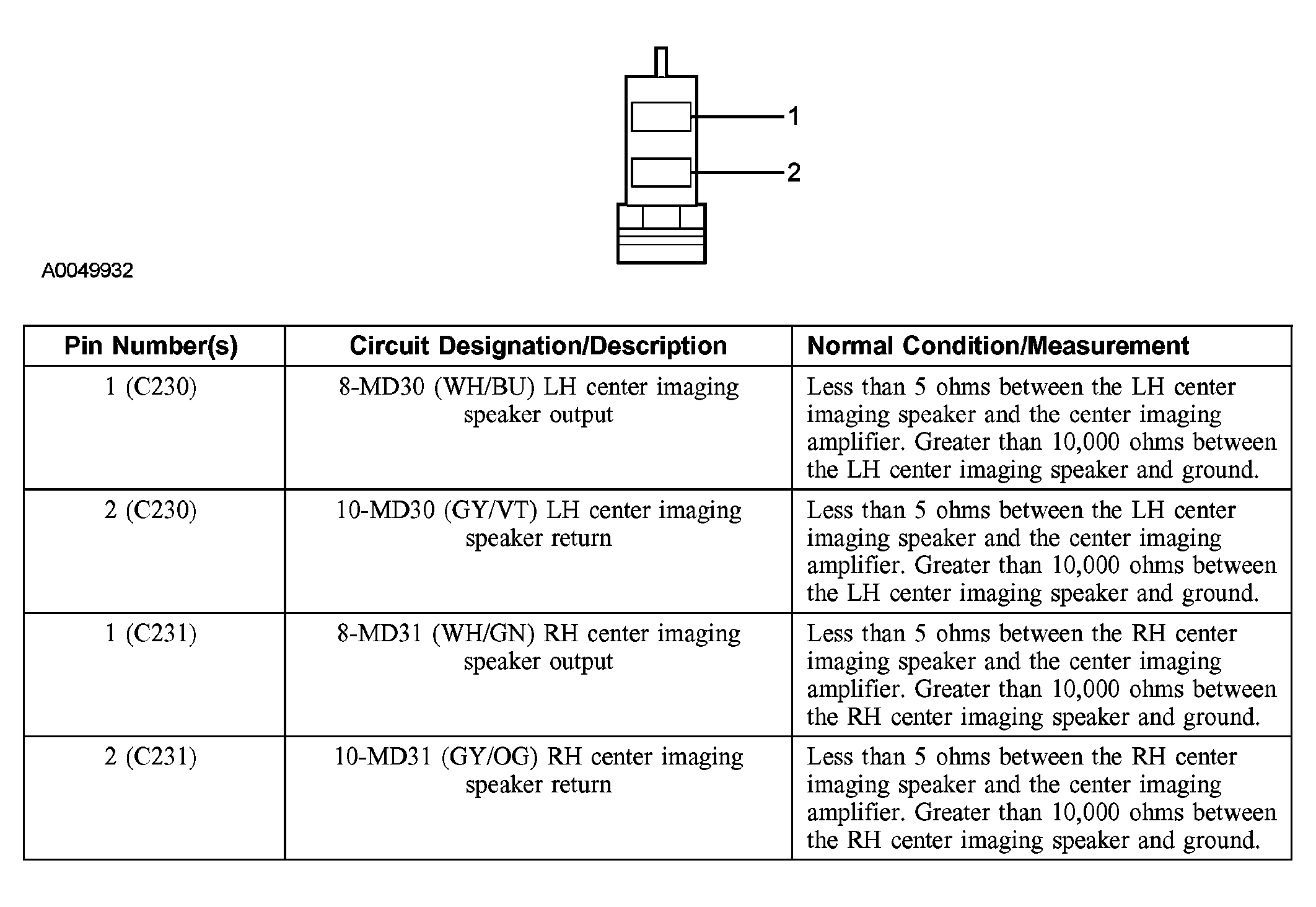

Fig 4: Connector Circuit Reference - Center Imaging Speaker LH C230, RH C231

Courtesy of FORD MOTOR CO.

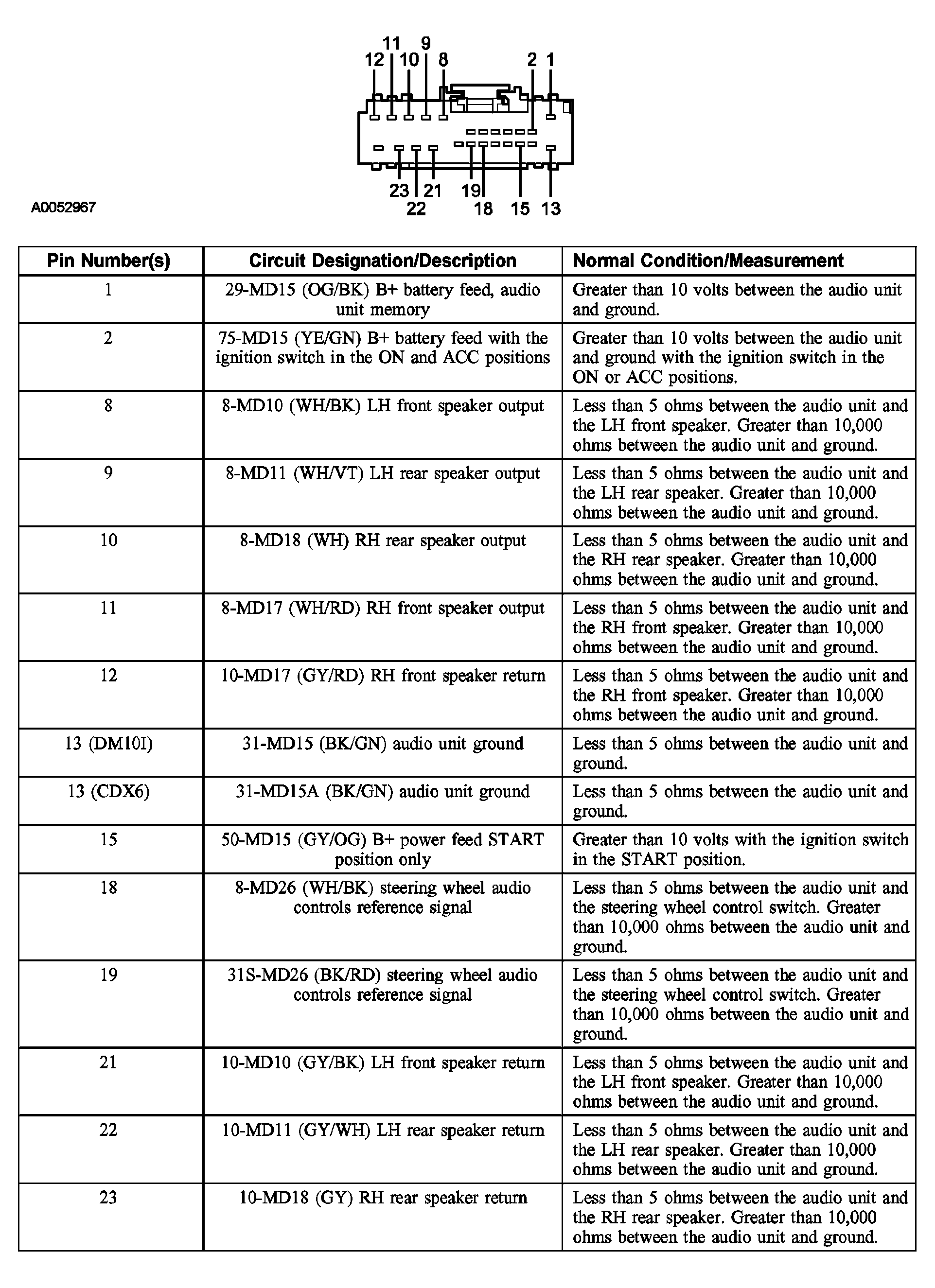

Fig 5: Connector Circuit Reference - Audio Unit C290B

Courtesy of FORD MOTOR CO.

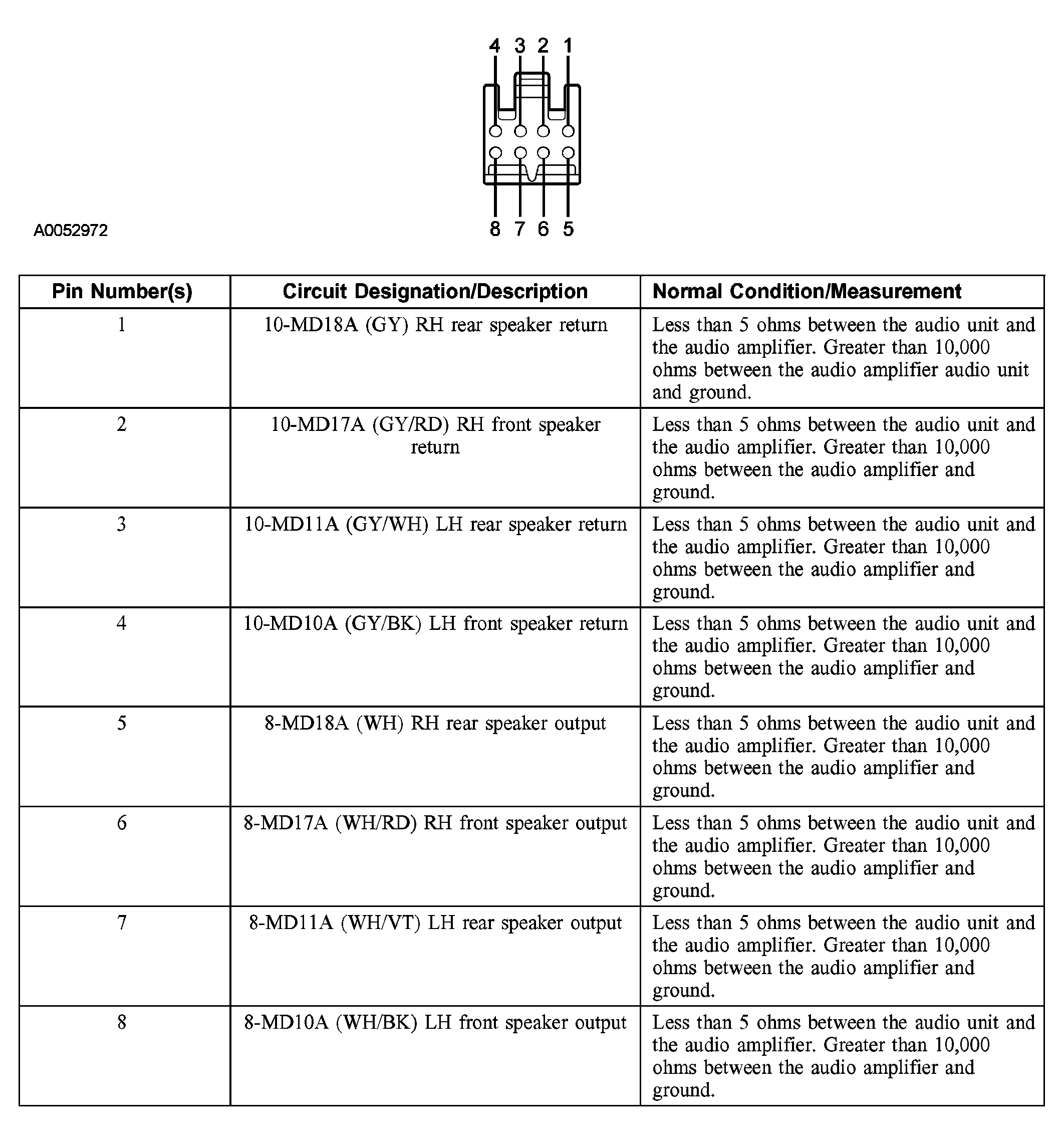

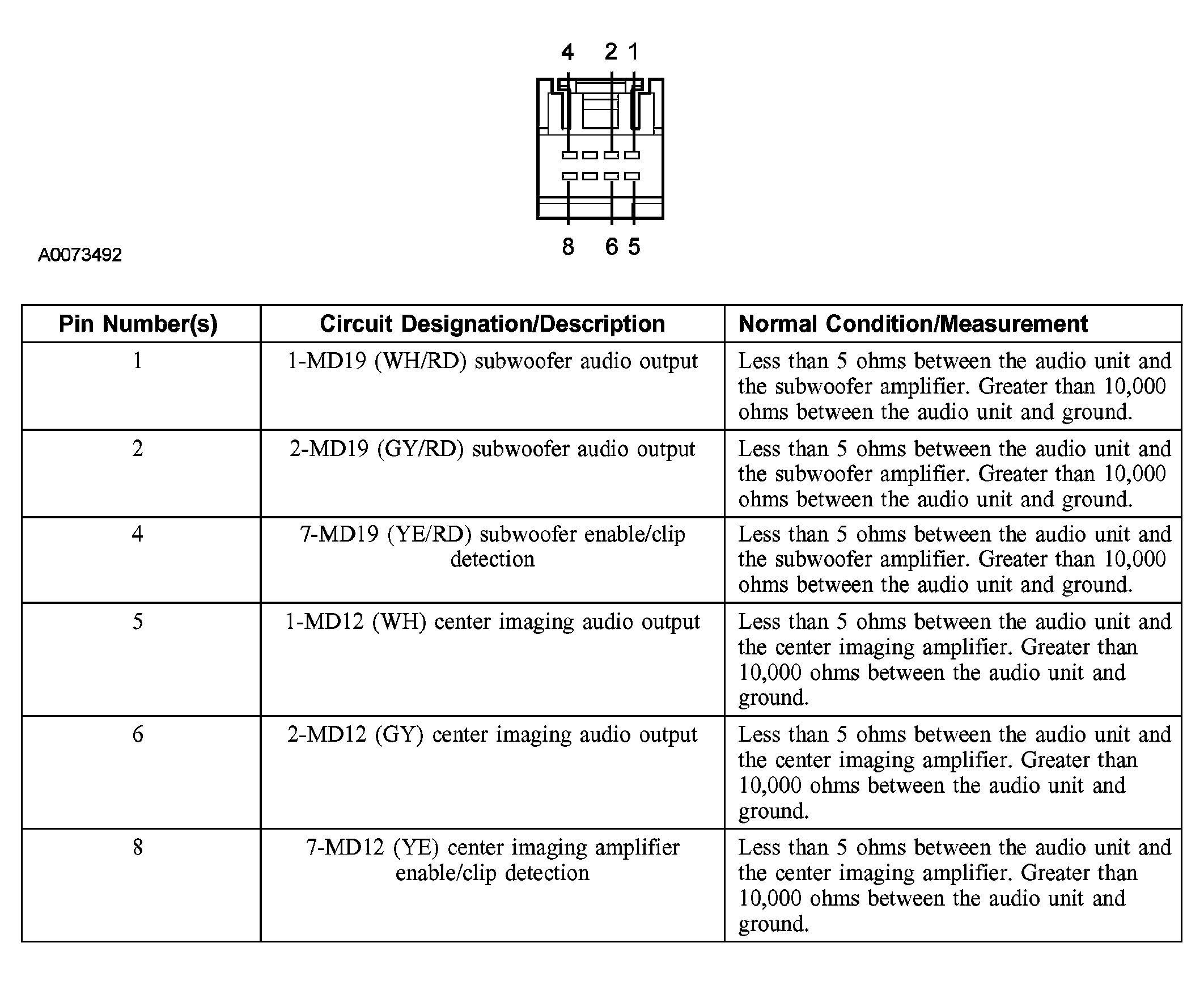

Fig 6: Connector Circuit Reference - Audio Unit C290D

Courtesy of FORD MOTOR CO.

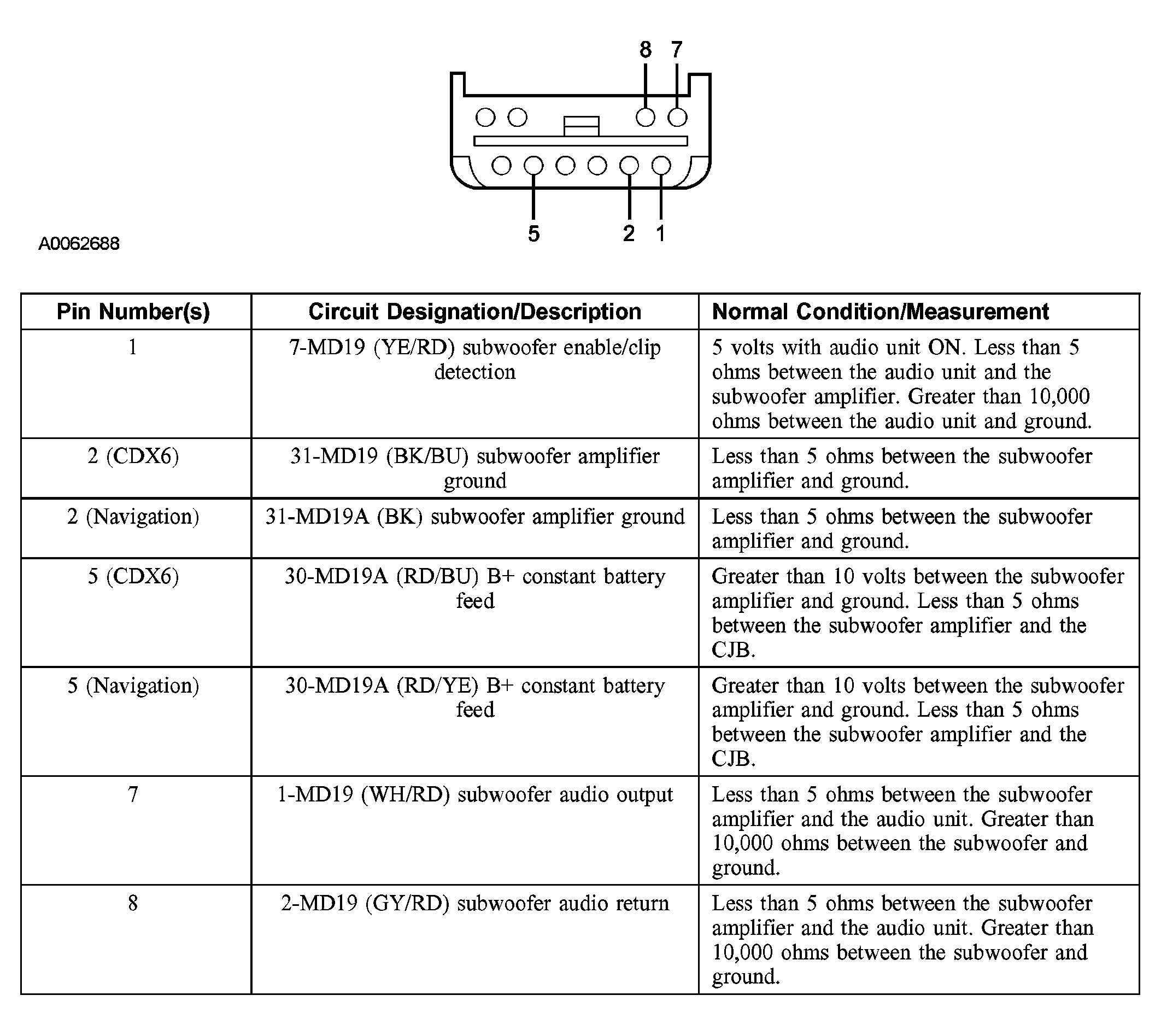

Fig 7: Connector Circuit Reference - Subwoofer Amplifier C466A

Courtesy of FORD MOTOR CO.

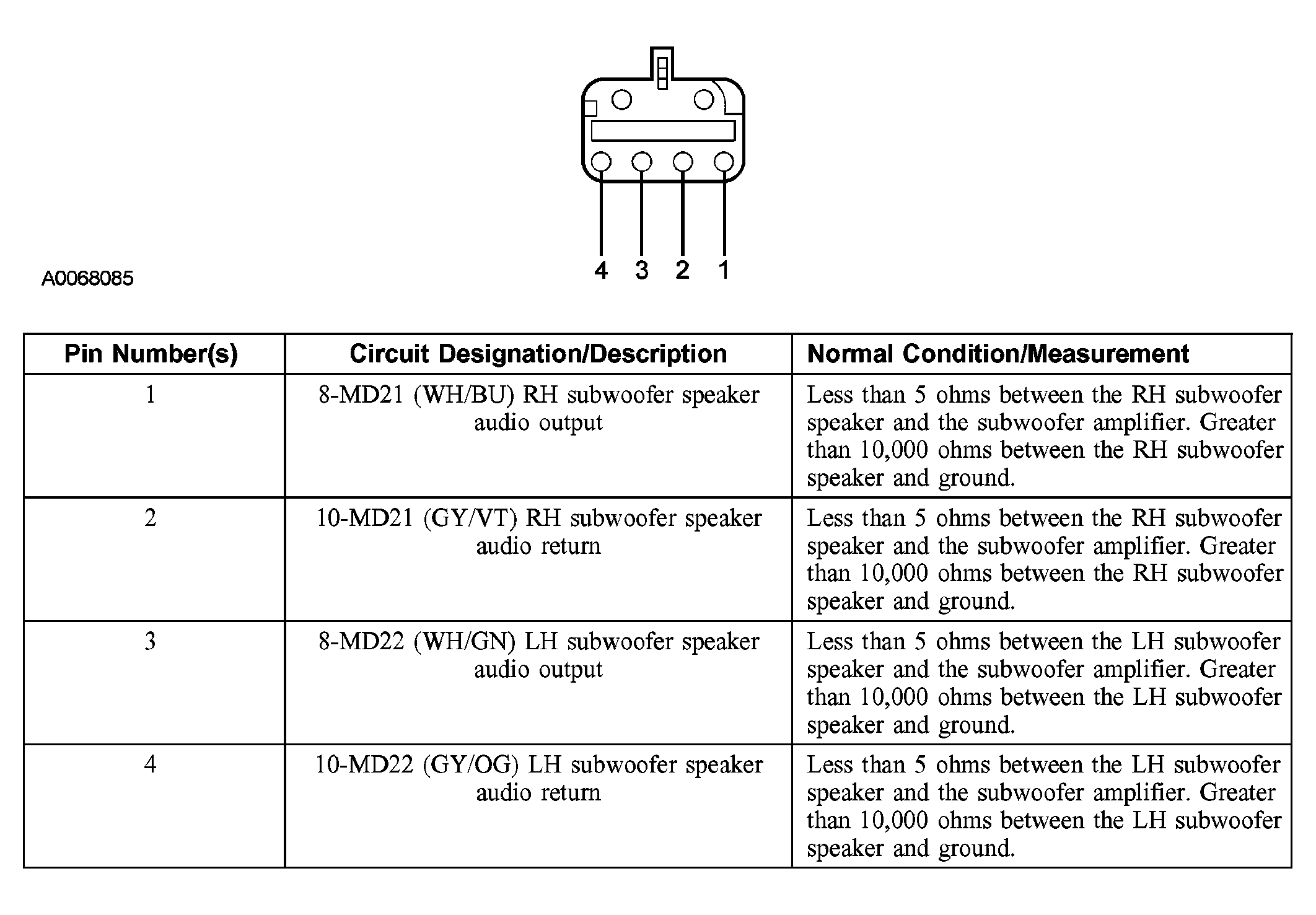

Fig 8: Connector Circuit Reference - Subwoofer Amplifier C466B

Courtesy of FORD MOTOR CO.

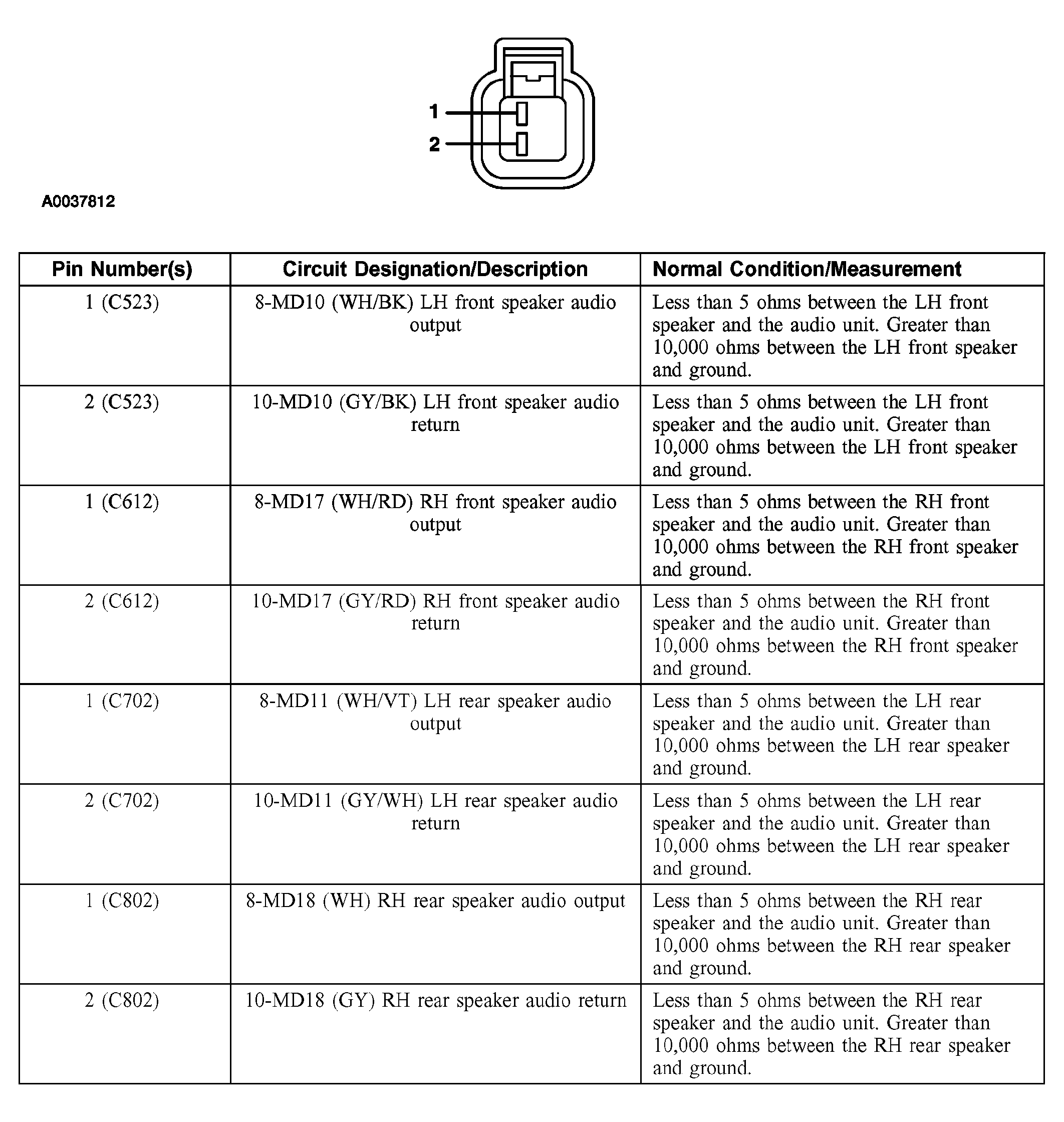

Fig 9: Connector Circuit Reference - Speaker C523, C612, C702, C802

Courtesy of FORD MOTOR CO.

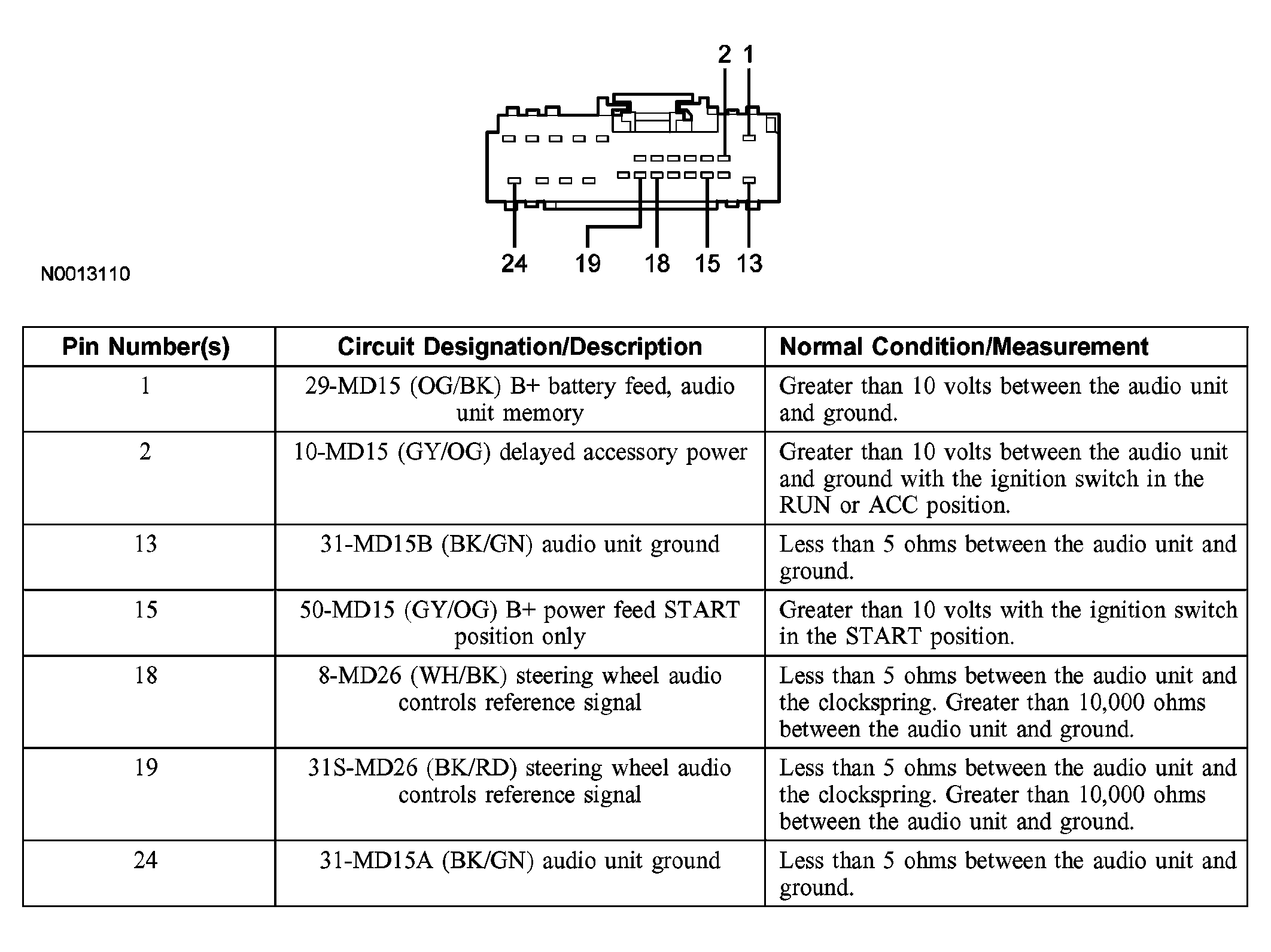

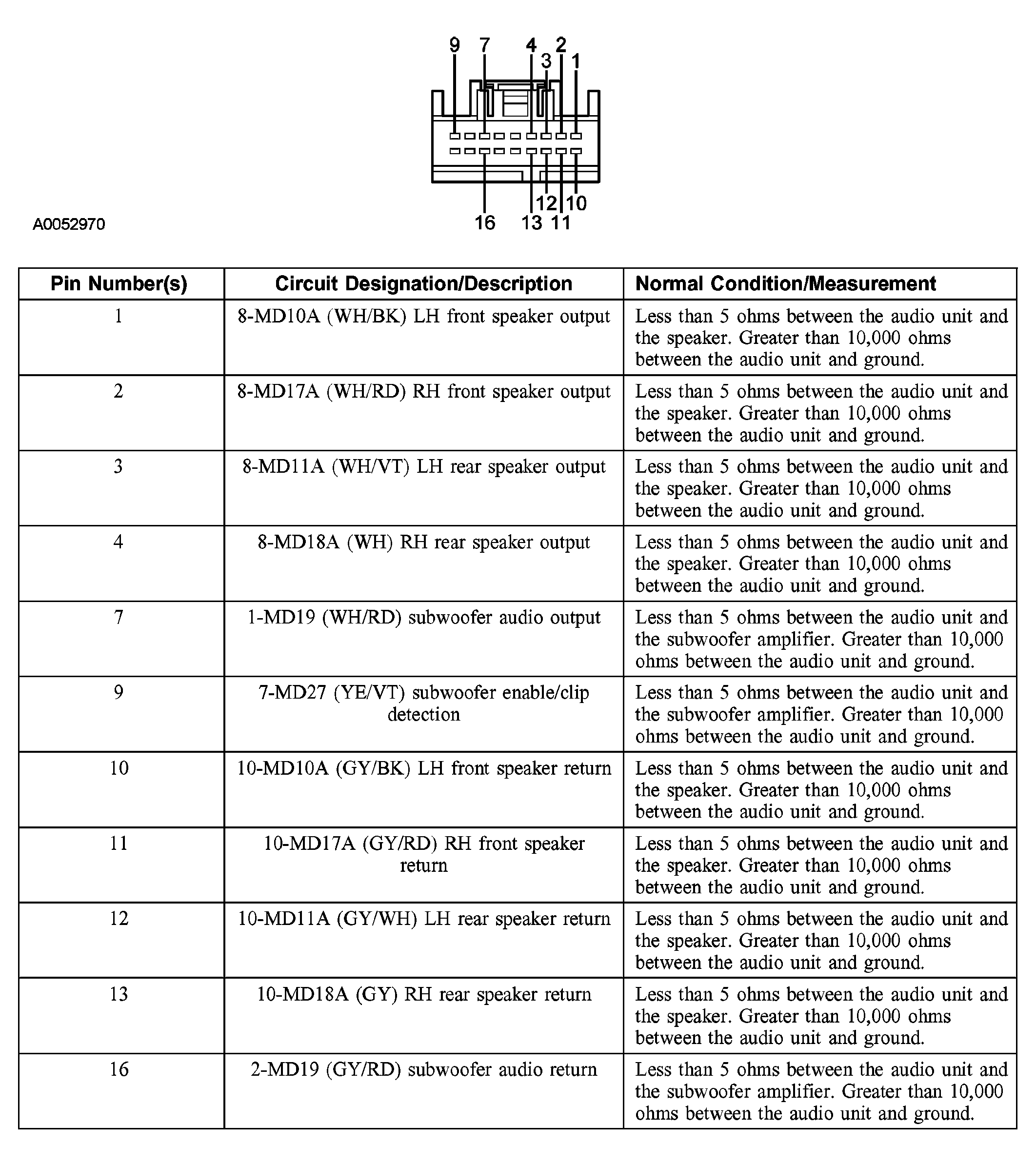

Fig 10: Connector Circuit Reference - Navigation Audio Unit C2253A

Courtesy of FORD MOTOR CO.

Fig 11: Connector Circuit Reference - Navigation Audio Unit C2253D

Courtesy of FORD MOTOR CO.

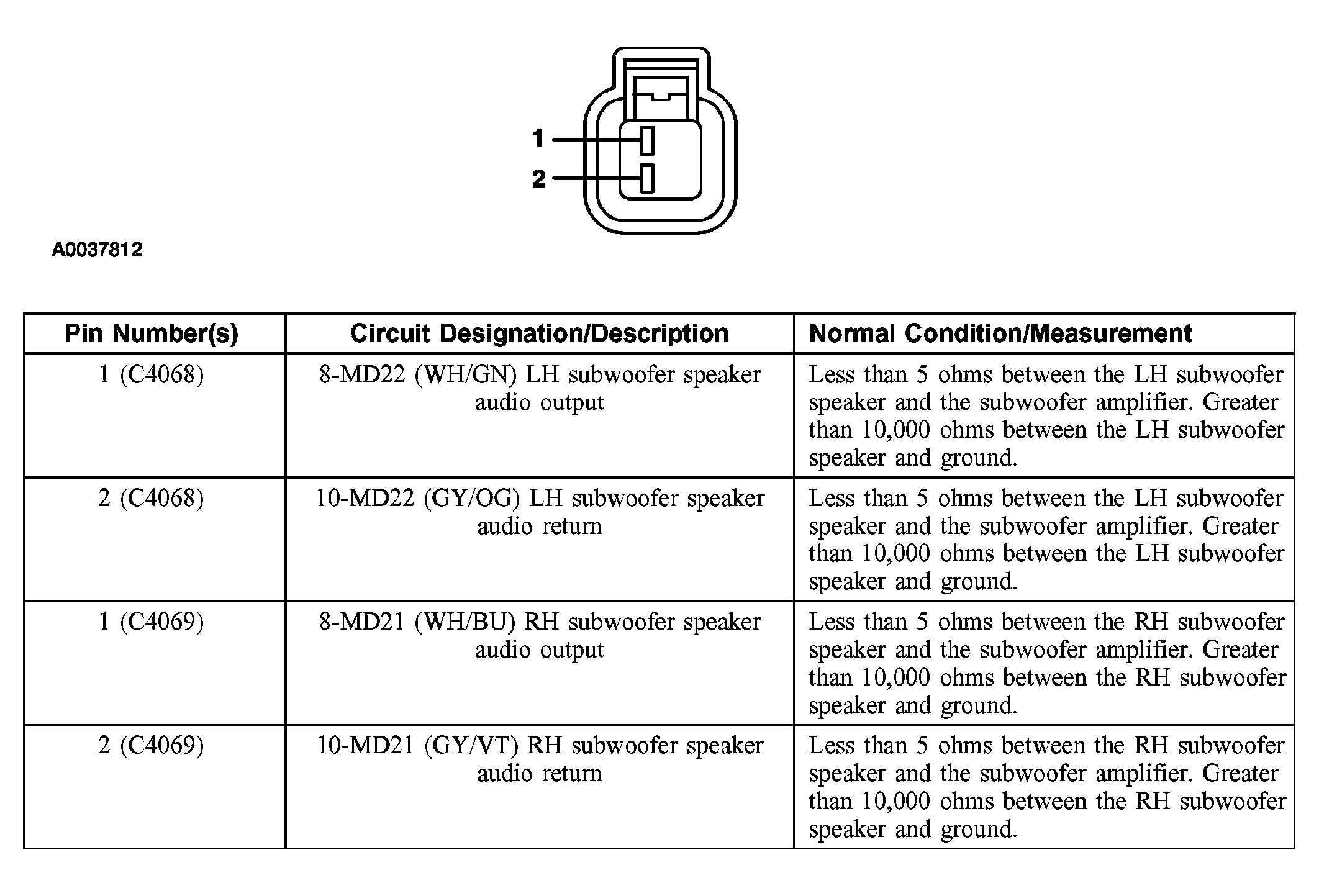

Fig 12: Connector Circuit Reference - Subwoofer Speaker LH C4068, RH C4069

Courtesy of FORD MOTOR CO.

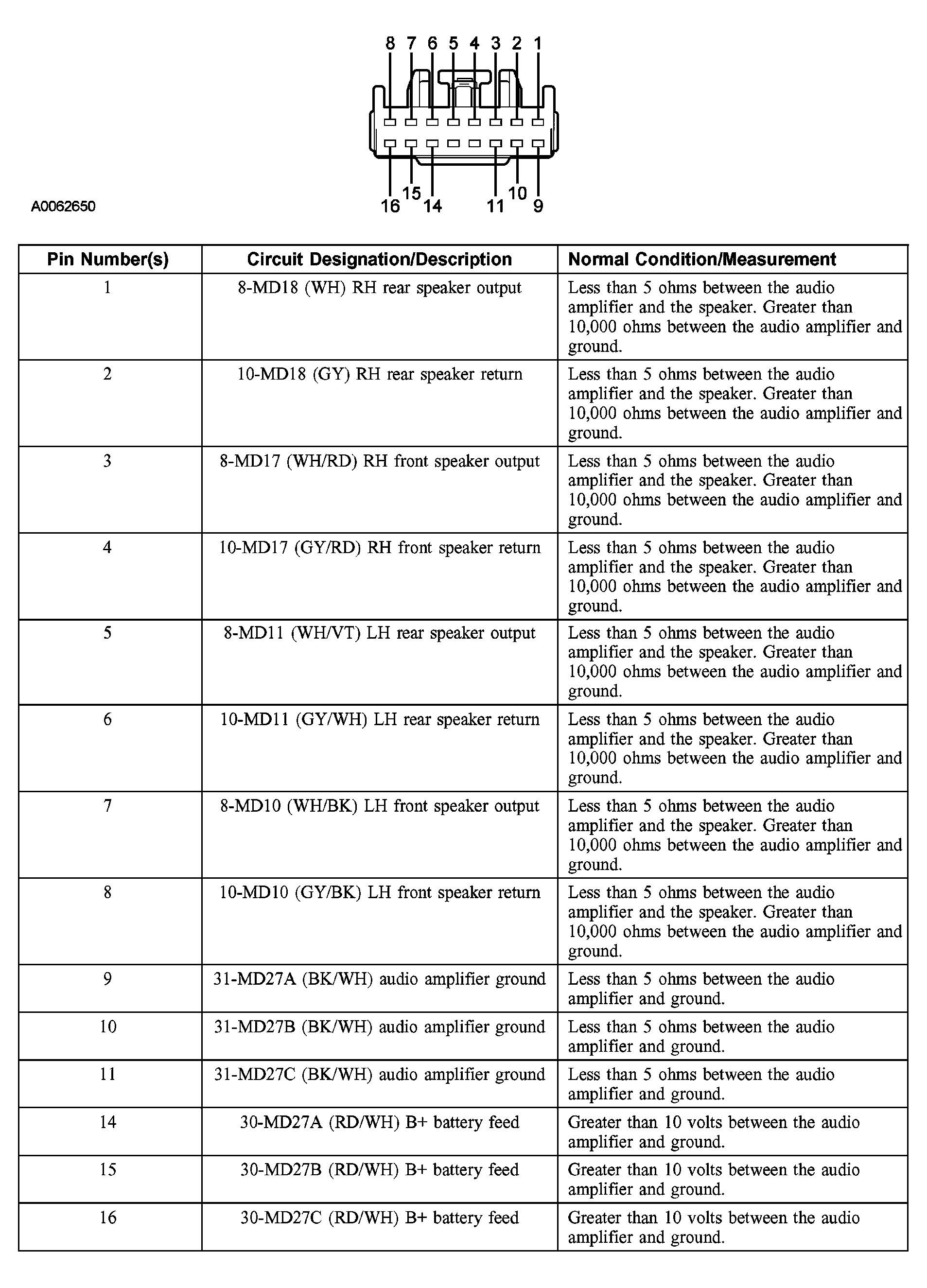

Fig 13: Connector Circuit Reference - Audio Amplifier C4208A

Courtesy of FORD MOTOR CO.

Fig 14: Connector Circuit Reference - Audio Amplifier C4208B

Courtesy of FORD MOTOR CO.

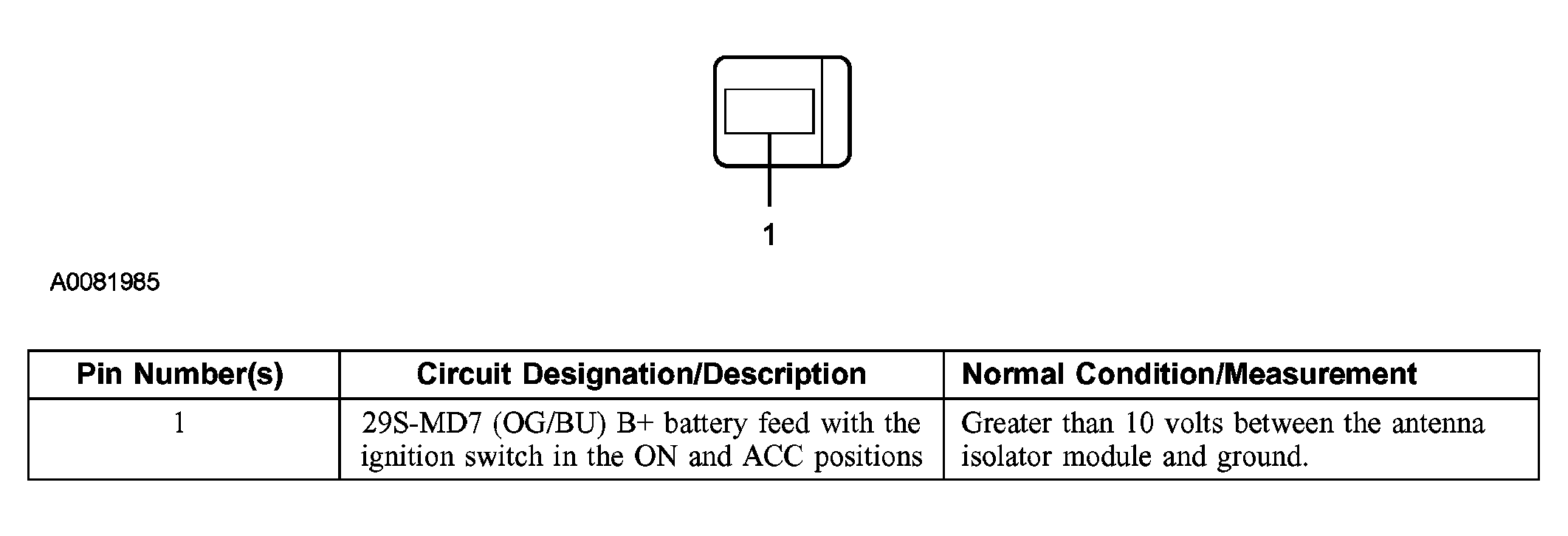

Fig 15: Connector Circuit Reference - Antenna Isolator Module C9021

Courtesy of FORD MOTOR CO.
