Steering Gear: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Fixture, Transmission | 307-003 (T57L-500-B) | |
| Installer, Sector Shaft Seal | 211-044 (T77L-3576-A) | |
| Installer, Worm Bearing Lock nut | 211-012 (T66P-3553-B) | |
| Service Set, Steering Gear Bearing and Oil Seal | 211-S005 (T65P-3524-A) |
Material
| Item | Specification |
|---|---|
| Multi-Purpose Grease XG-4 and/or XL-5 |
ESB-M1C93-B |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

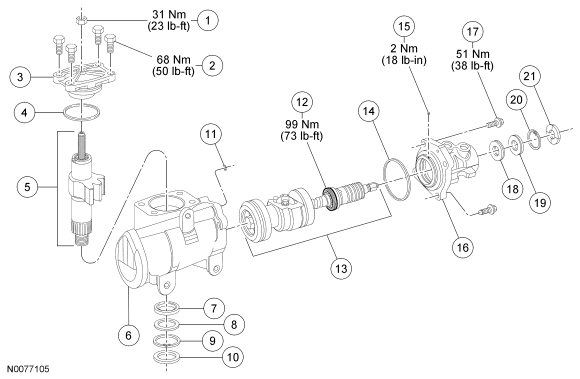

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Meshload adjusting screw lock nut (part of 3L548 seal kit) |
| 2 | N808939 | Sector shaft housing cover bolt (4 required) |
| 3 | 3583 | Sector shaft housing cover |
| 4 | - | Sector shaft housing cover seal (part of 3L548 seal kit) |
| 5 | - | Sector shaft and meshload adjusting screw assembly (part of 3504) |
| 6 | - | Steering gear housing (part of 3504) |
| 7 | - | Sector shaft seal (part of 3L548 seal kit) |
| 8 | - | Spacer (part of 3L548 seal kit) |
| 9 | - | Snap ring (part of 3L548 seal kit) |
| 10 | - | Sector shaft dust seal (part of 3L548 seal kit) |
| 11 | - | Valve housing-to-gear housing O-ring seal (part of 3L548 seal kit) |
| 12 | - | Worm thrust bearing retainer ring (part of 3504) |
| 13 | - | Piston assembly (part of 3504) |
| 14 | - | Valve housing seal (part of 3L548 seal kit) |
| 15 | - | Worm thrust bearing retainer ring setscrew (part of 3L548 seal kit) |
| 16 | - | Valve housing (part of 3504) |
| 17 | 385578 | Valve housing bolt (4 required) |
| 18 | - | Input shaft bearing (part of 3504) |
| 19 | - | Input shaft seal (part of 3L548 seal kit) |
| 20 | - | Snap ring (part of 3L548 seal kit) |
| 21 | - | Input shaft dust seal (part of 3L548 seal kit) |
CAUTION:
While repairing the power steering system, care should be taken to prevent the entry of contaminants, or failure of the power steering components may result.
NOTE:
The steering gear piston assembly cannot be repaired or installed separately.
- Remove the steering gear. For additional information, refer to Steering Gear .
