Output Shaft: Material
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION TABLE
| Item | Specification |
|---|---|
| SAE 75W-90 API GL-4 Gear Oil XT-4-QGL | WSS-M2C203-A1 |

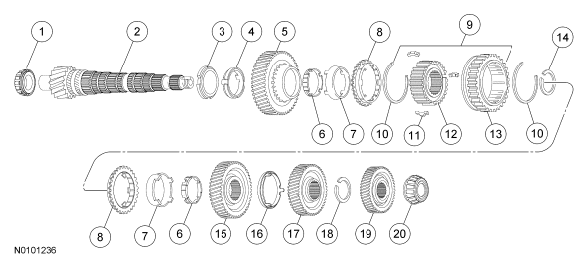

PART NUMBER REFERENCE TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F431 | Output shaft bearing |
| 2 | 7061 | Output shaft |
| 3 | - | Spacer |
| 4 | - | Friction dampener |
| 5 | 7100 | 1st gear |
| 6 | - | Synchronizer inner cones |
| 7 | - | Synchronizer outer cones |
| 8 | 7107 | Synchronizer blocking rings |
| 9 | - | 1st/2nd gear synchronizer assembly |
| 10 | - | Synchronizer key springs |
| 11 | - | Synchronizer key |
| 12 | - | 1st/2nd clutch hub |
| 13 | - | Clutch hub sleeve (reverse gear) |
| 14 | 7064 | Snap ring |
| 15 | 7102 | 2nd gear |
| 16 | - | Friction damper cone |
| 17 | - | Secondary 3rd gear |
| 18 | 7064 | Snap ring |
| 19 | - | Secondary 4th gear |
| 20 | 7025 | Bearing |
