Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

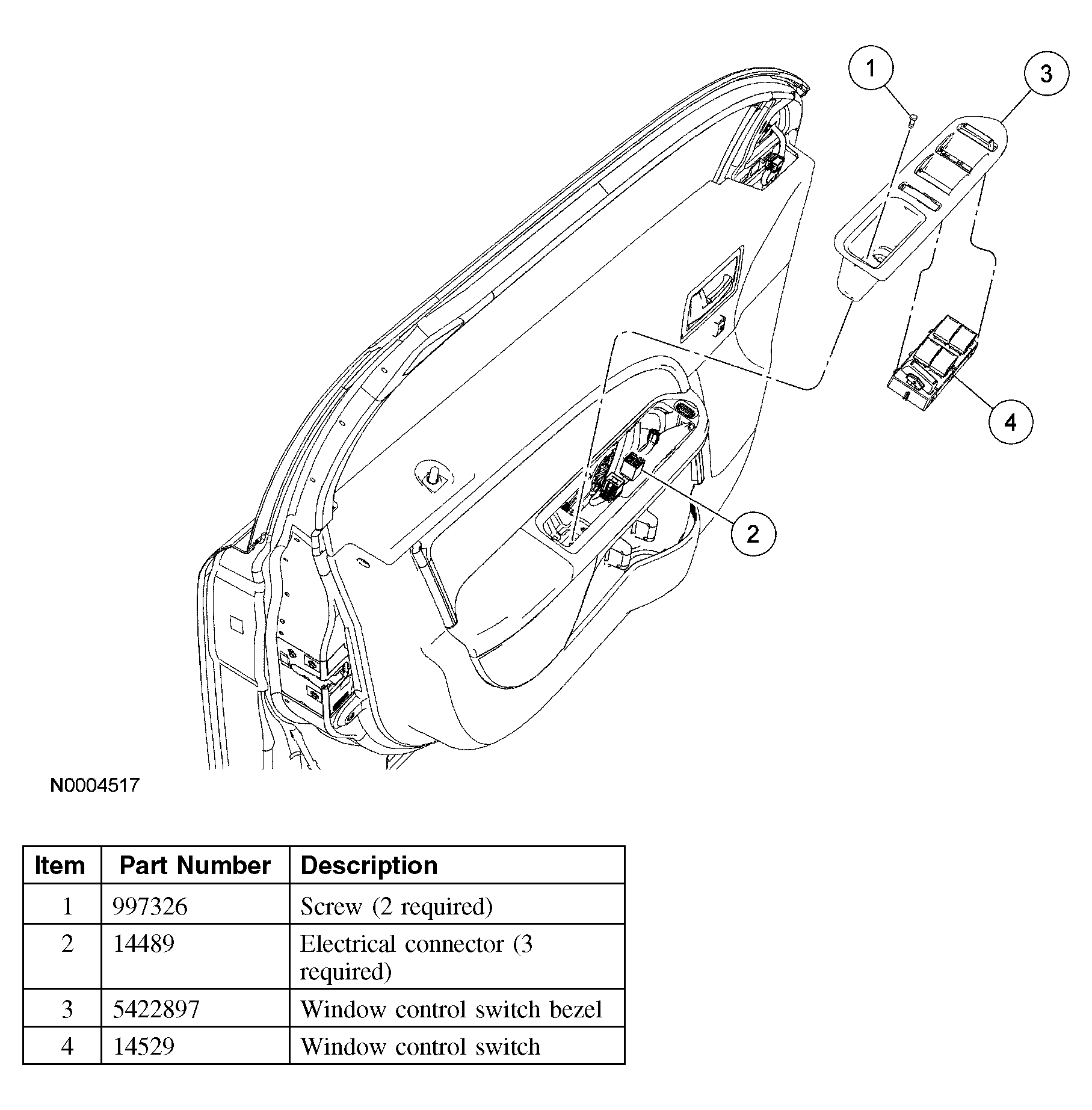

Fig 1: Removing/Installing Window Control Switch
G03989121Courtesy of FORD MOTOR CO.
  1. Remove the window regulator control switch bezel.
    • Remove the 2 screws.
    • Disconnect the electrical connectors.
  2. Remove the window control switch.
  3. To install, reverse the removal procedure.
