Transaxle Support Insulator - LH: Notes

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL

G04620952Courtesy of FORD MOTOR CO.
3-Bar Engine Support Kit
303-F072 or equivalent

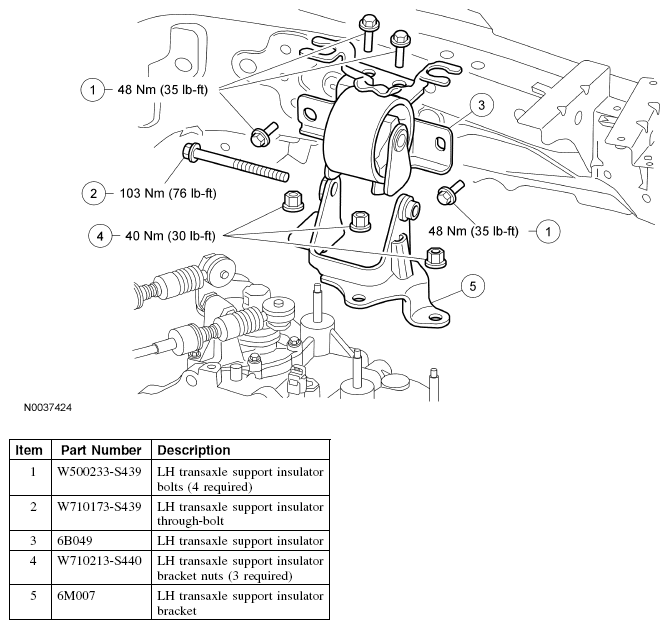

Fig 1: Transaxle Support Insulator -- LH Replacement Components With Torque Specifications
G04620953Courtesy of FORD MOTOR CO.
