Auxiliary Climate Control Housing: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

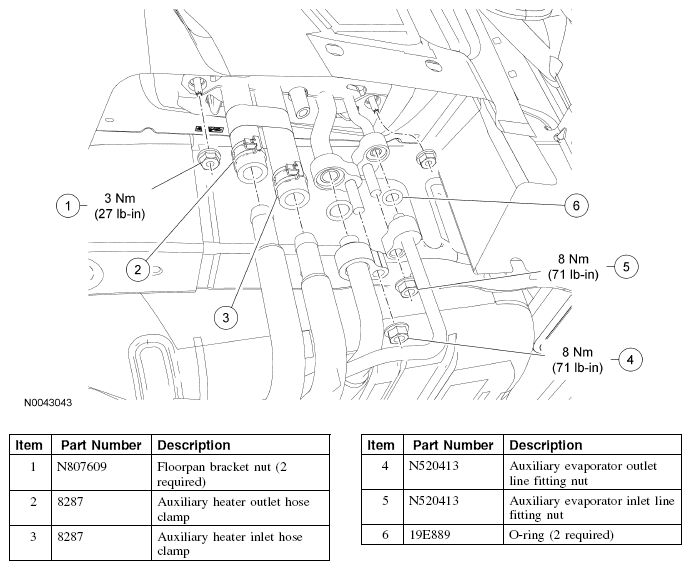

Fig 1: Auxiliary Climate Control Housing Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

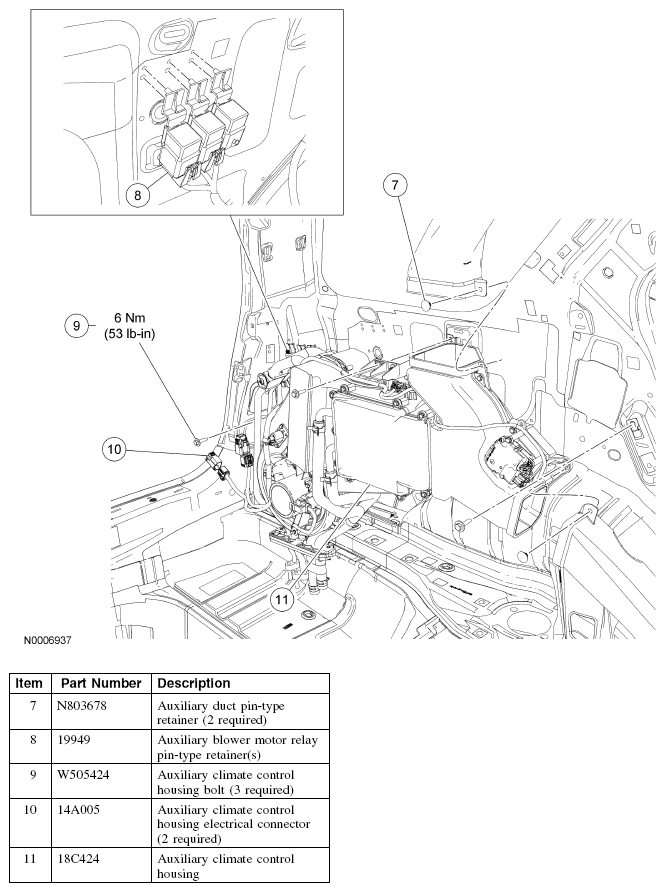

Fig 2: Auxiliary Climate Control Housing Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.
