Pinpoint Test B: No Communication With Driver Seat Module (DSM)
WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

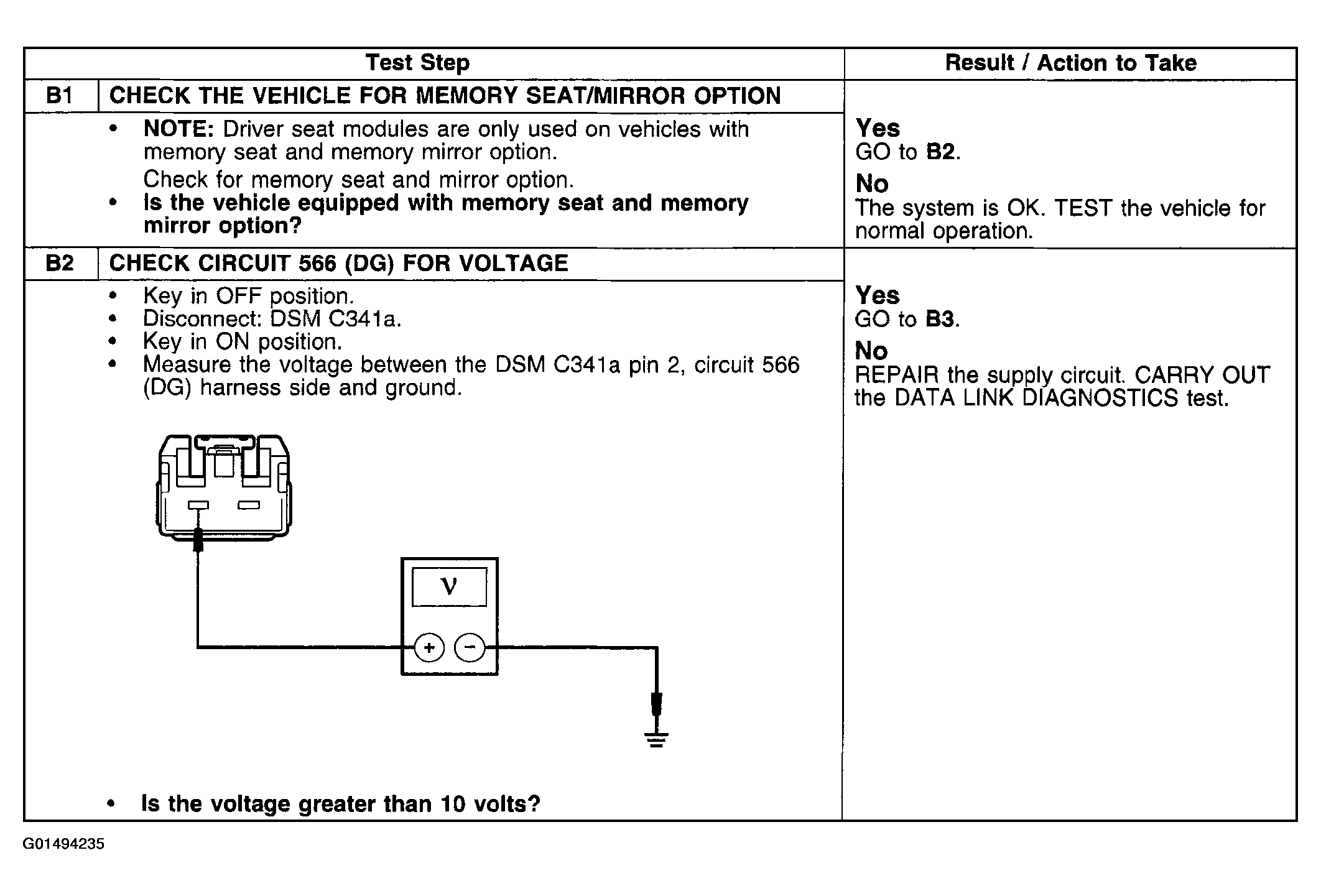

Fig 1: Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B1-B2)
Courtesy of FORD MOTOR CO.

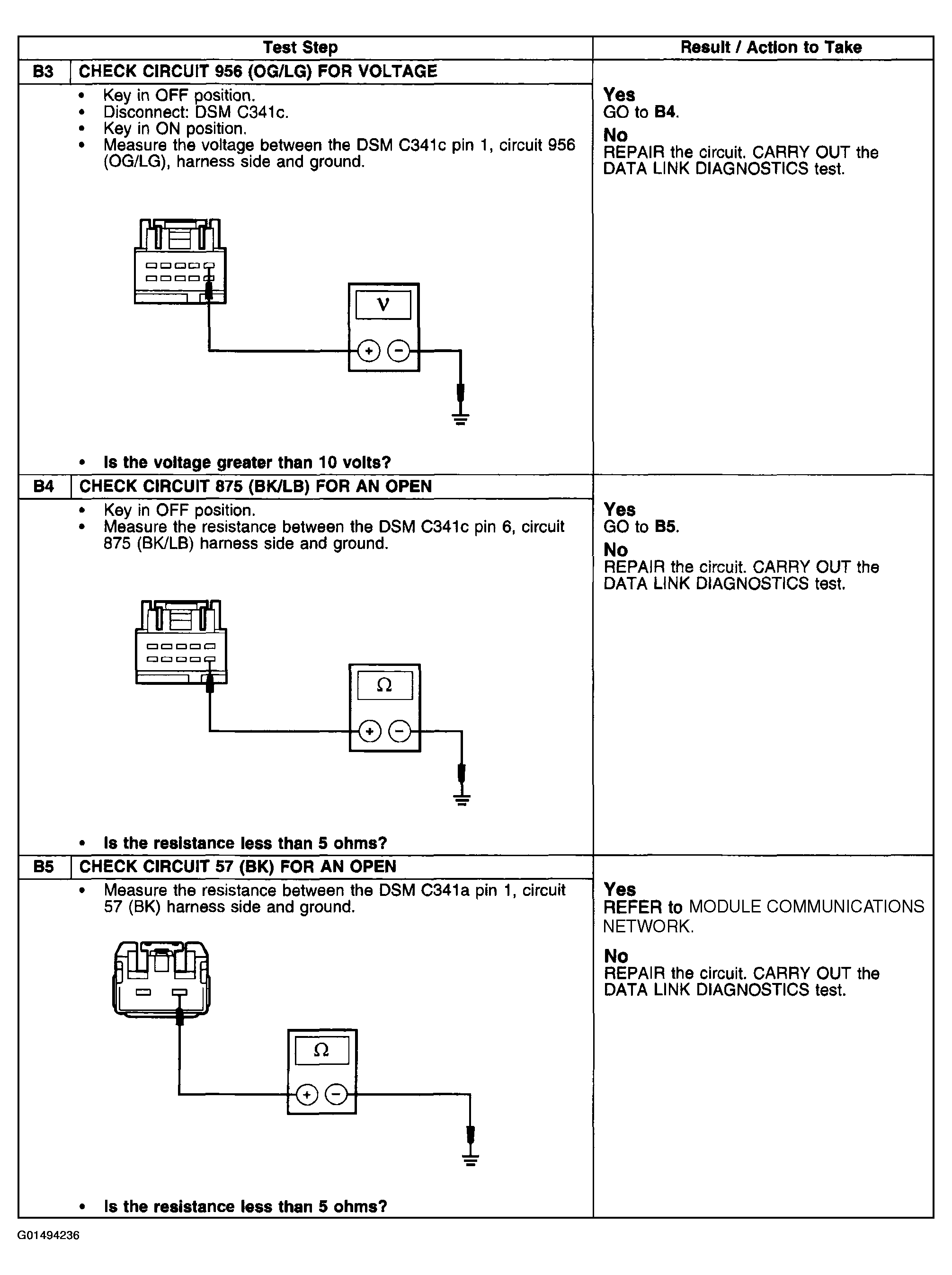

Fig 2: Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B3-B5)
