With Manual Climate Control






REMOVAL
1. Remove the radio chassis. For additional information, refer to Radio,Stereo and Compact disc.

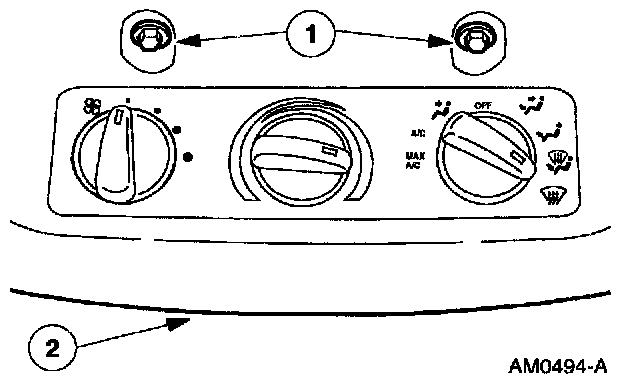

2. Remove the instrument panel finish panel.
1 Remove the screws.
2 Disengage the spring clips and remove the instrument panel finish panel.







3. Disconnect the connectors.







4. Remove the screws and remove the climate control assembly.







5. Disconnect the climate control assembly.
1 Disconnect the electrical connectors.
2 Disconnect the vacuum harness connector.

INSTALLATION
1. To install, reverse the removal procedure.
