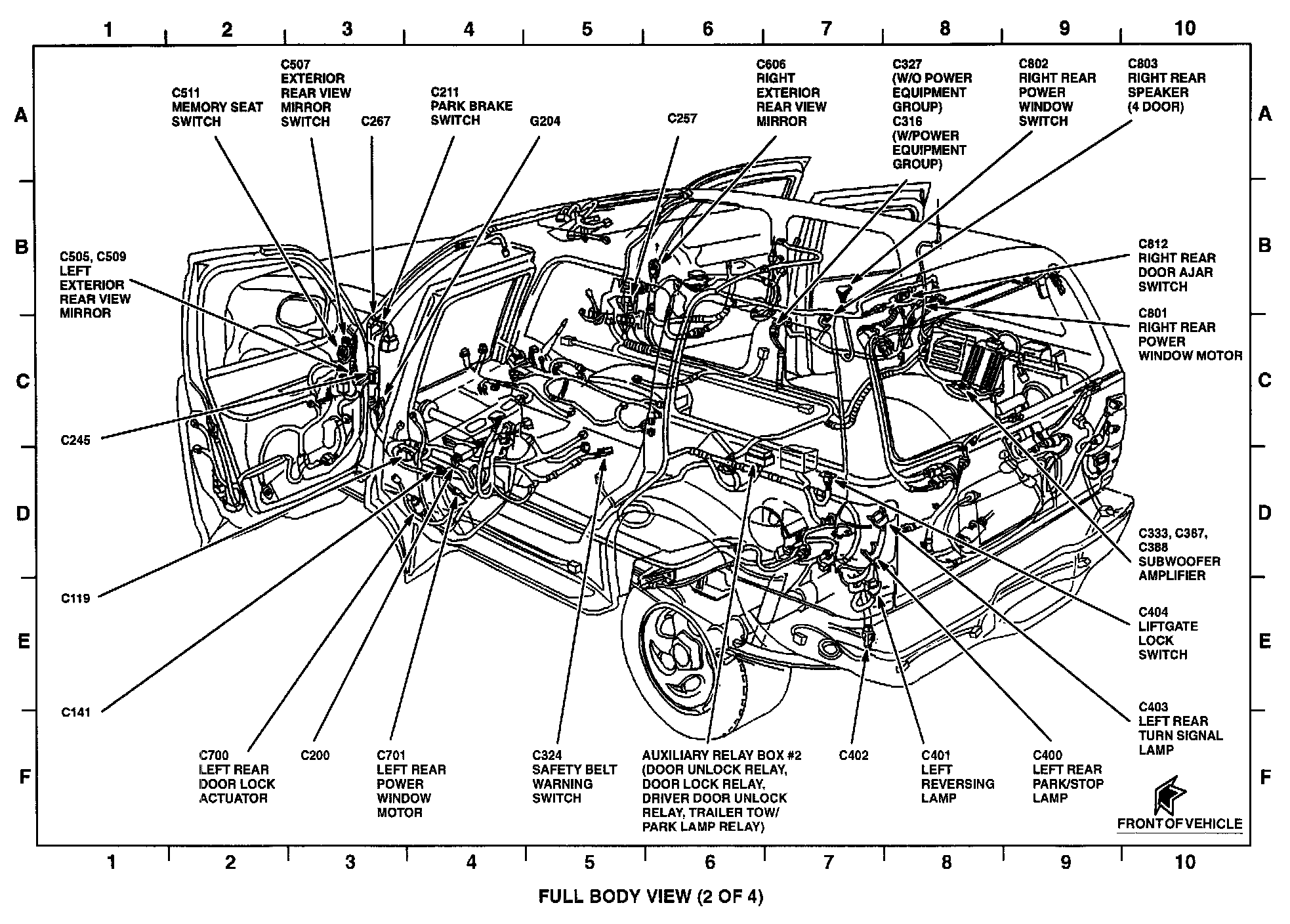

Power Distribution Relay: Locations
Trailer Tow Park Lamp Relay

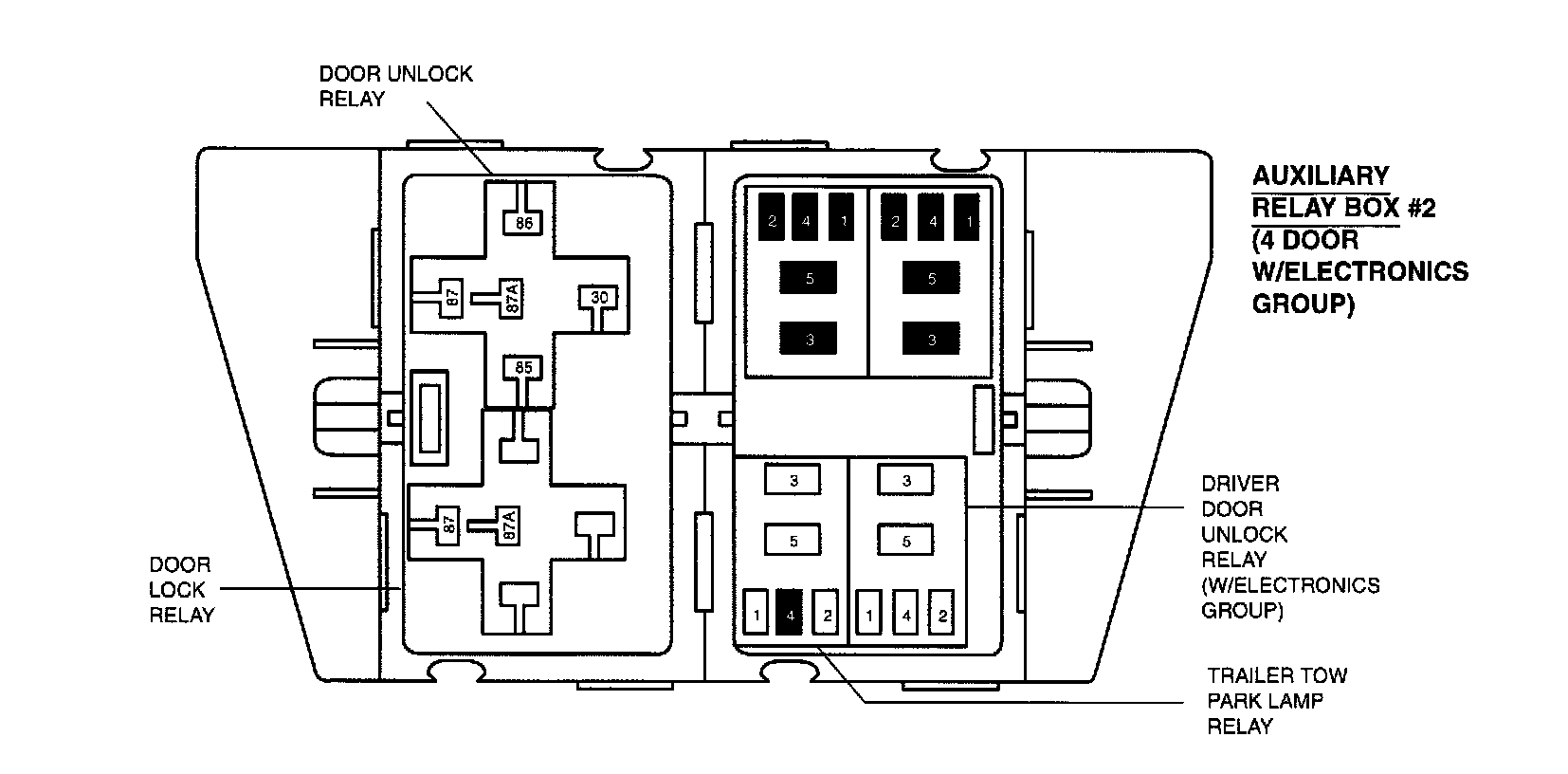

4 Door W/Electronics Group:

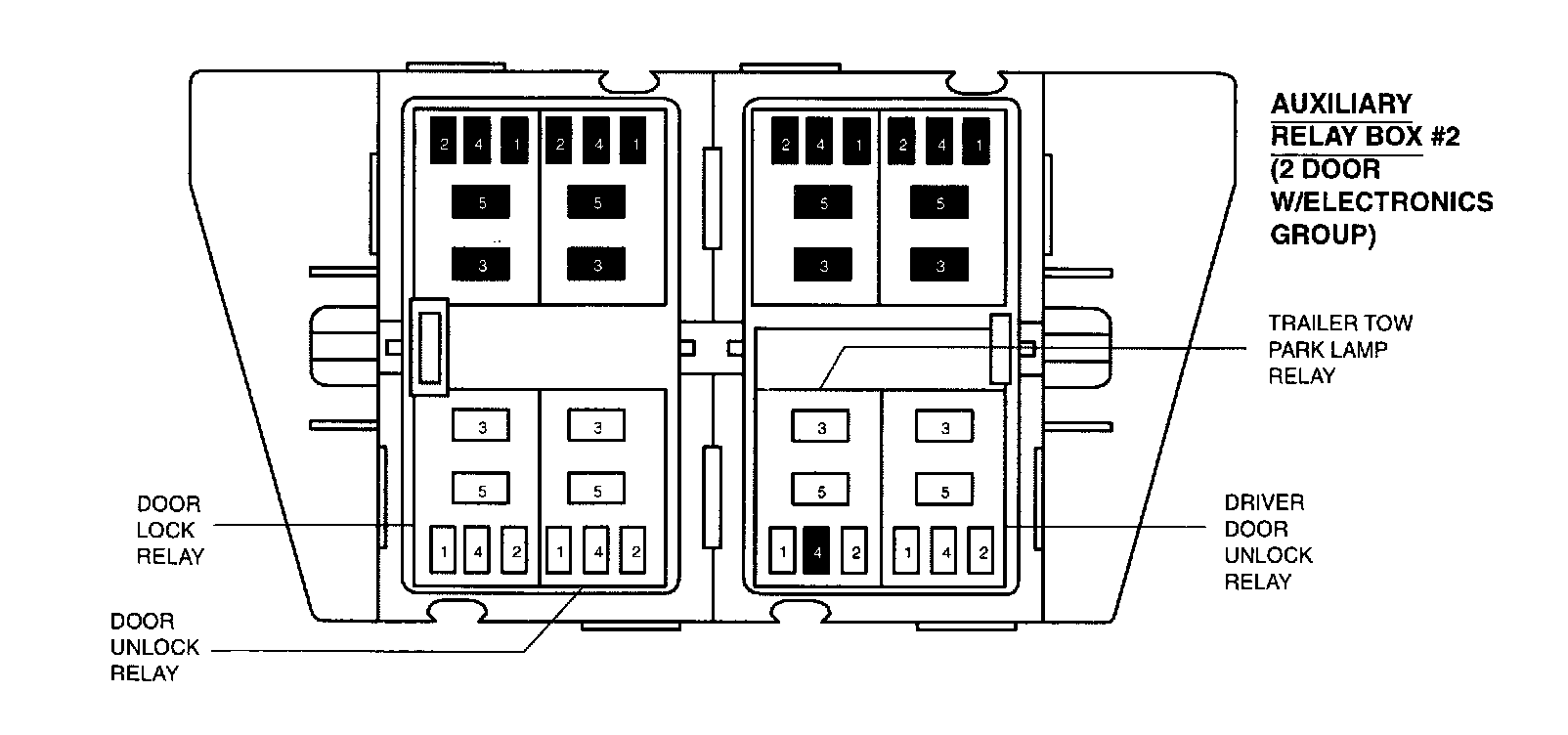

2 Door W/Electronics Group:
