Air Flow Meter/Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

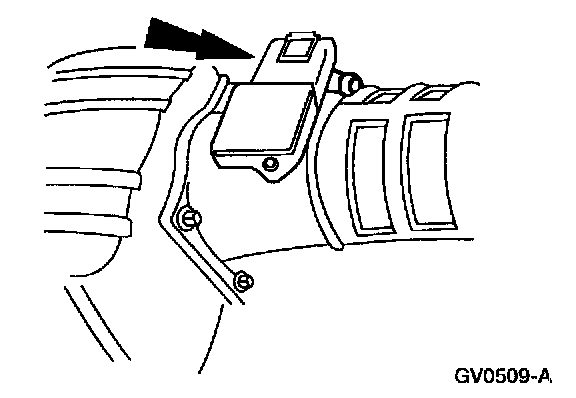

2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.







3. Loosen the air cleaner outlet tube clamp and position aside.

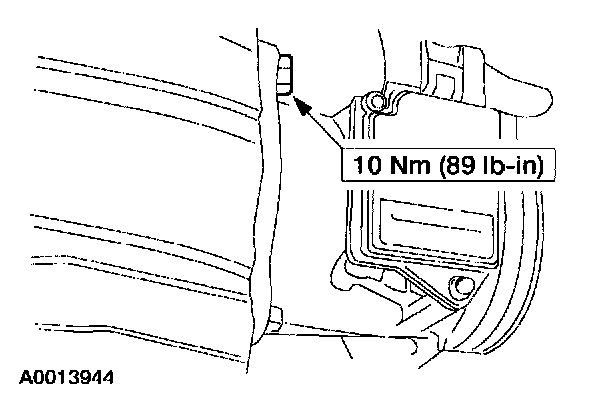

4. Remove the four bolts and the MAF sensor.

CAUTION: The MAF sensor electronics module and body are calibrated as a unit and must be replaced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

INSTALLATION
1. To install, reverse the removal procedure.
