Master Window Control Switch

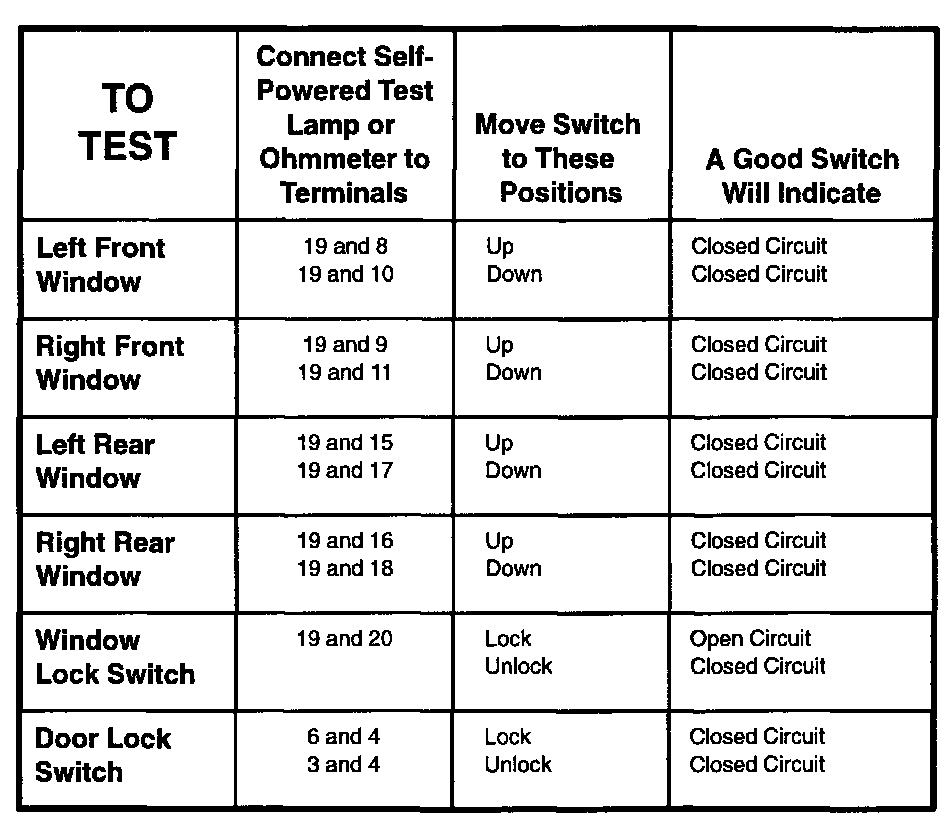

Component Testing Procedure:

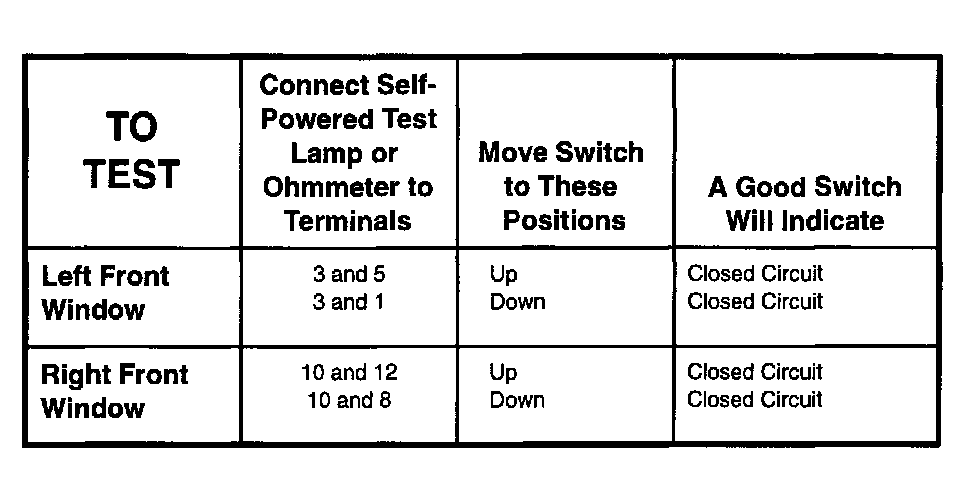

Component Testing Procedure:

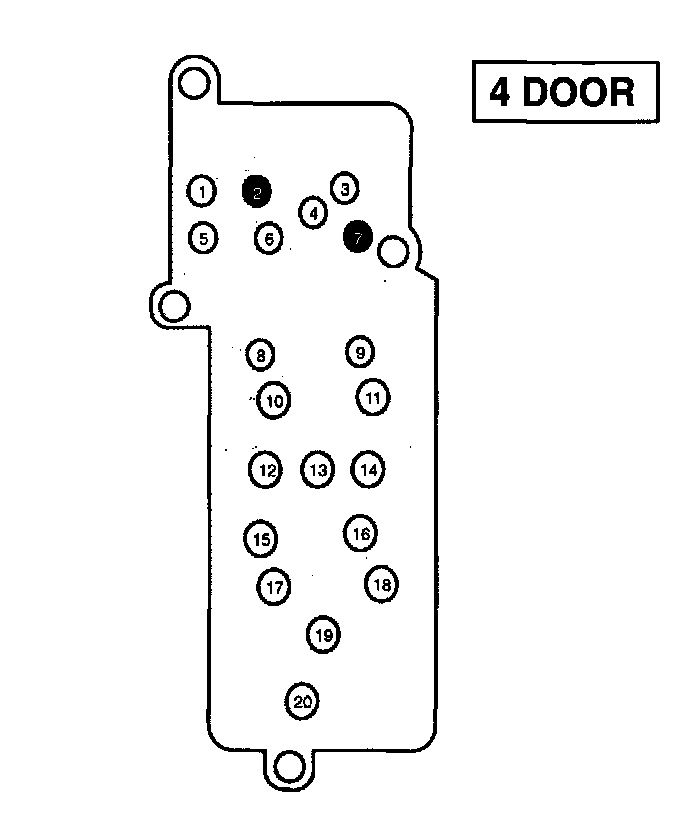

Terminals:

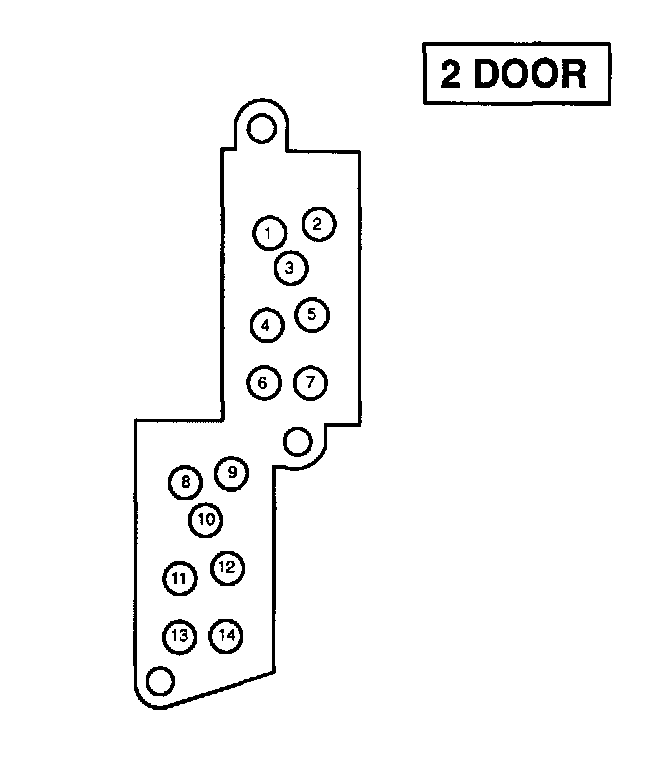

Terminals:

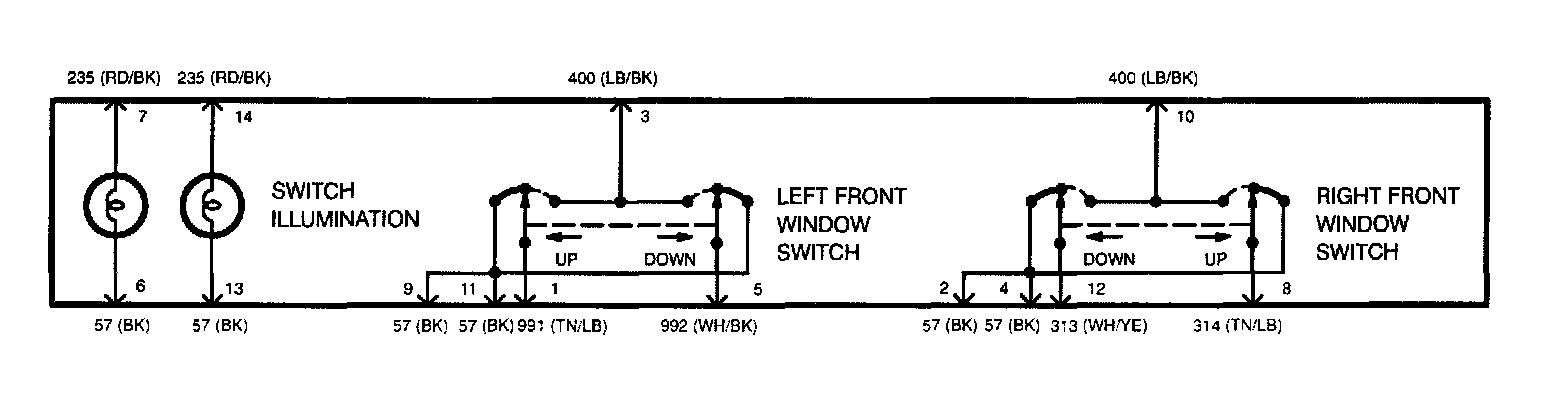

Schematic:

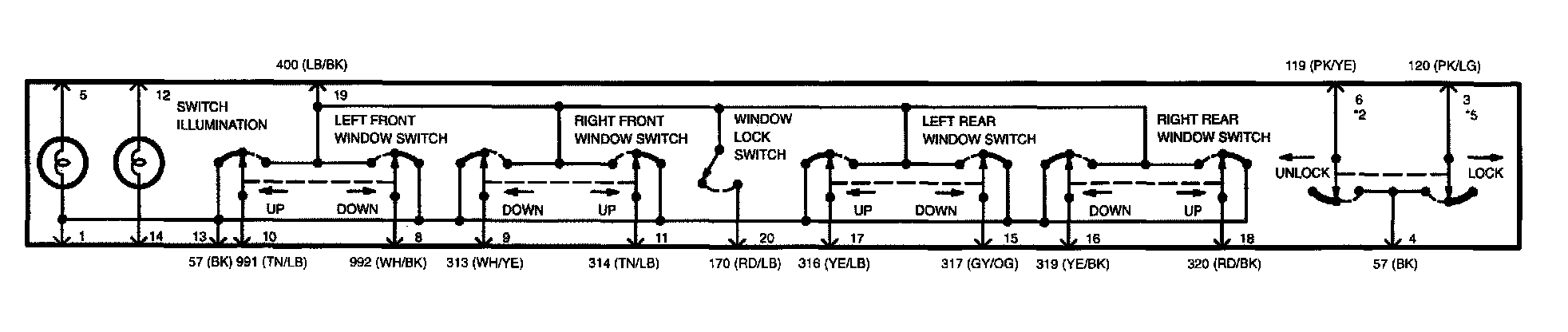

Schematic:
