Explorer 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Power window Switch
>>
Right Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right Front

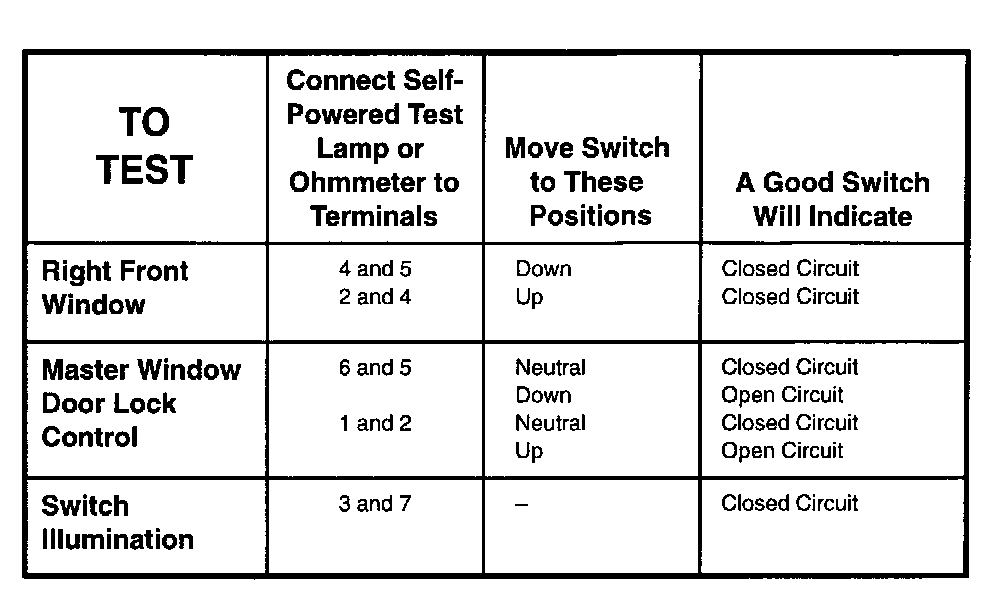

Component Testing Procedure:

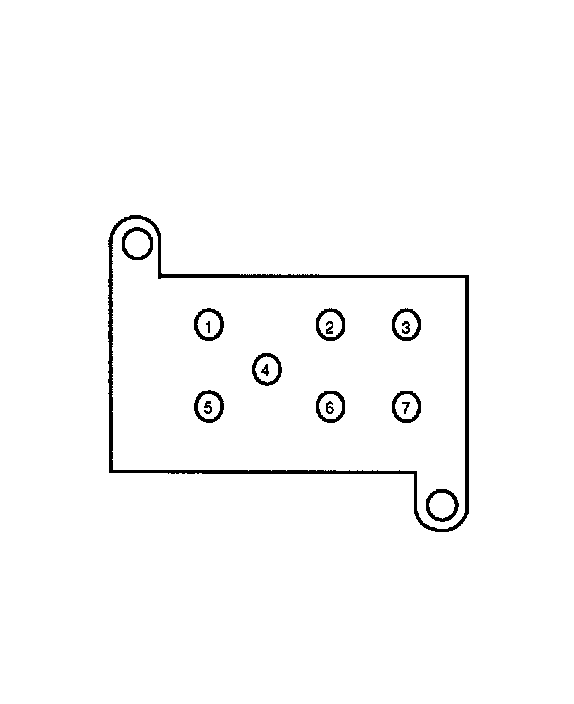

Terminals:

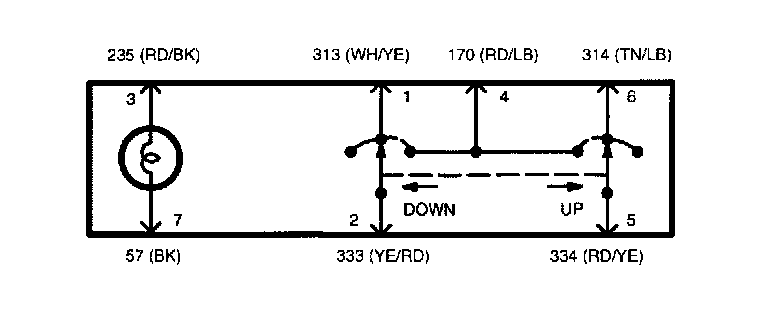

Schematic:
