Engine Temperature Sensor: Service and Repair

REMOVAL
1. Remove the generator. For additional information, refer to Alternator.

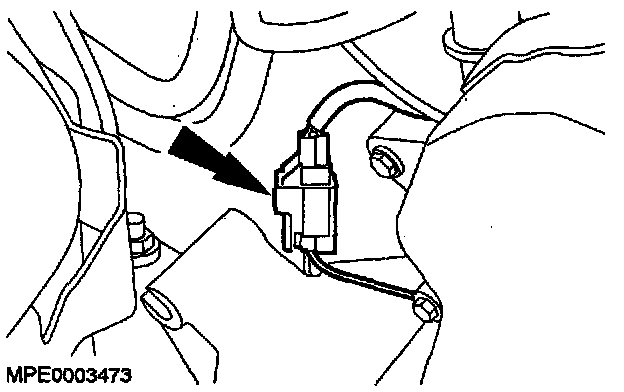

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

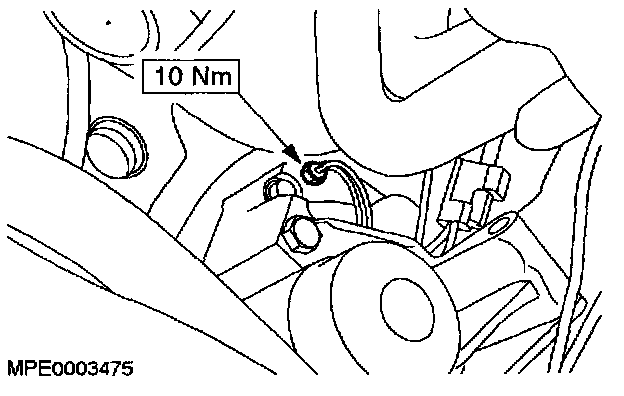

3. Remove the CHT sensor.

INSTALLATION







1. To install, reverse the removal procedure.
