System Specifications

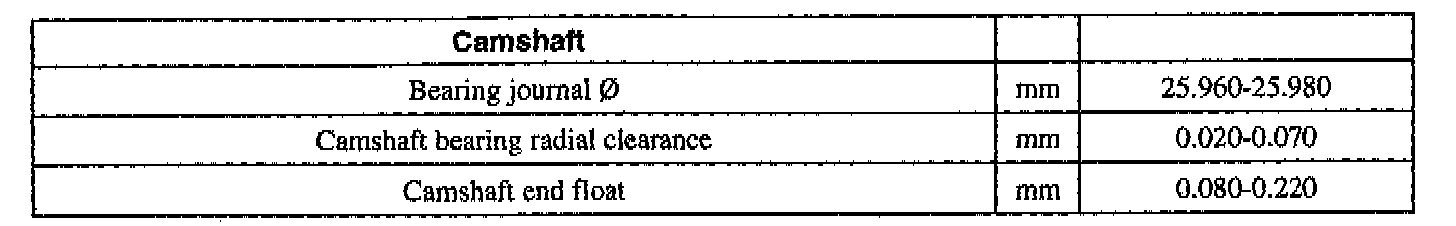

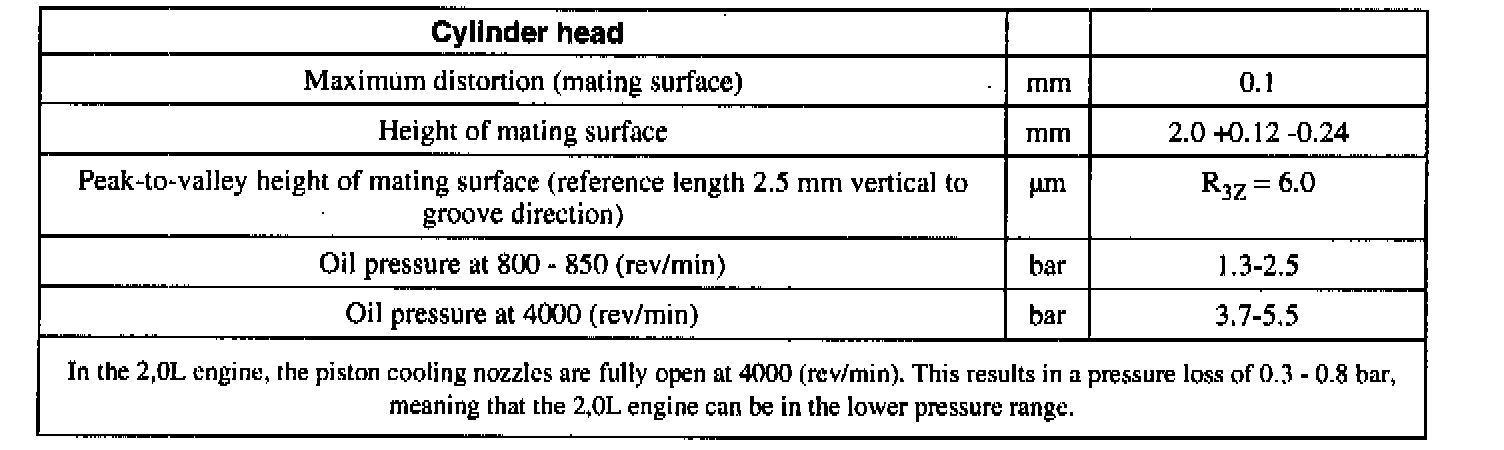

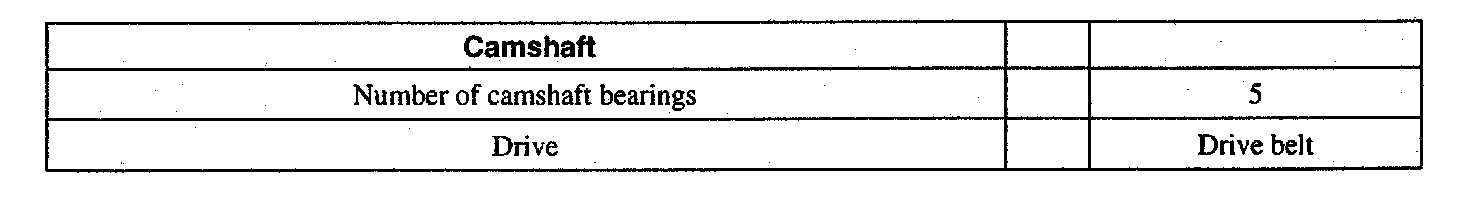

General Specifications

Tightening Specifications





CAUTION: Do not retighten the cylinder head bolts.

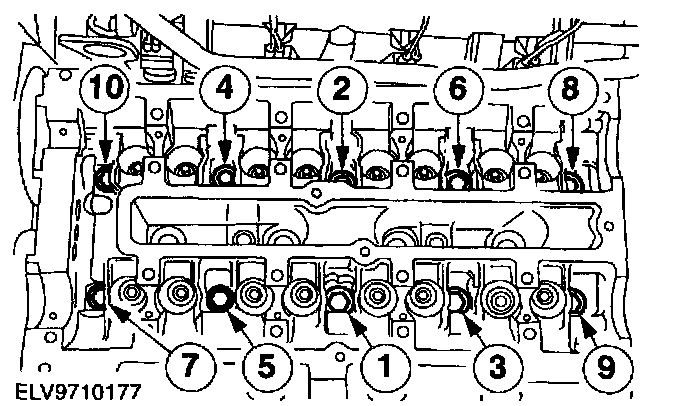

Tighten the cylinder head bolts in three stages in the sequence indicated.
- Stage 1: 20 Nm
- Stage 2: 40 Nm
- Stage 3: 90 degrees.
