LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Ford >> 2000 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower End
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

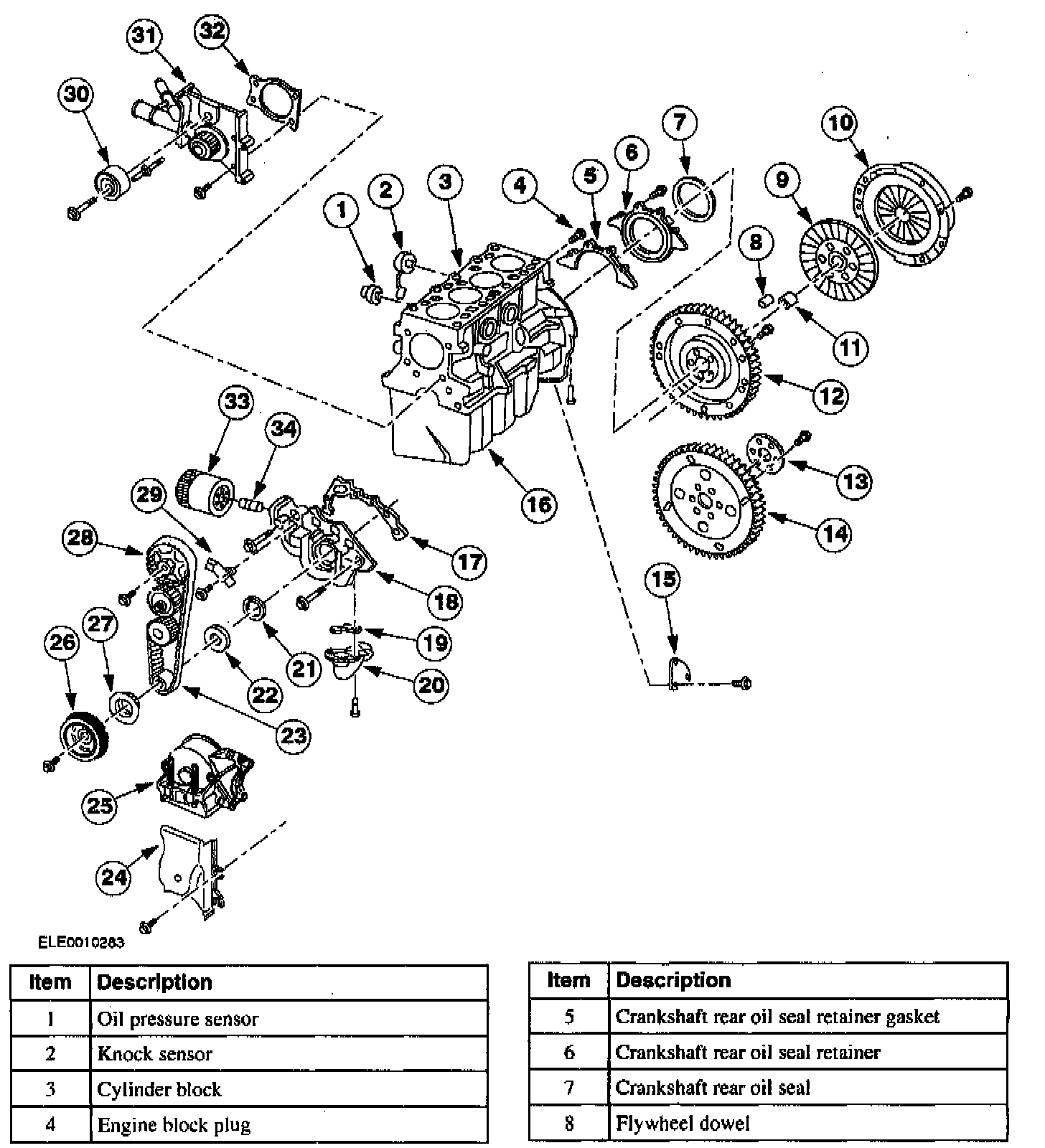

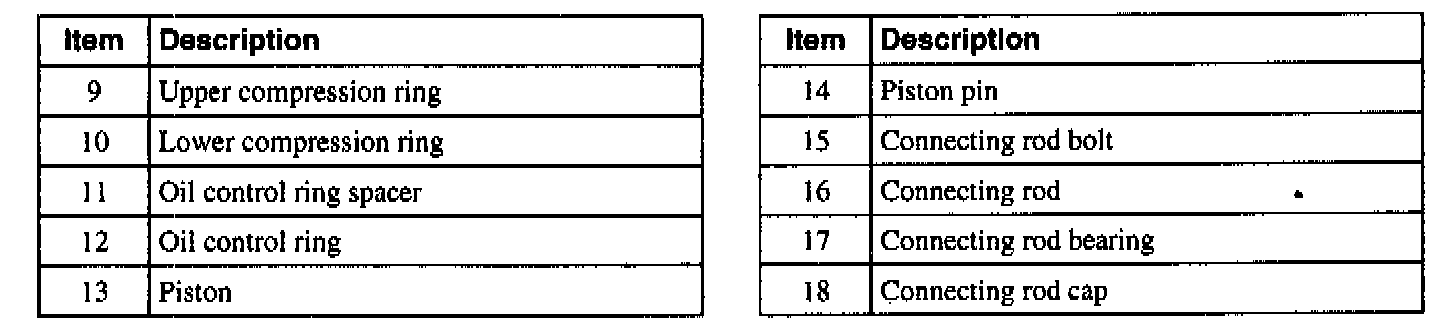

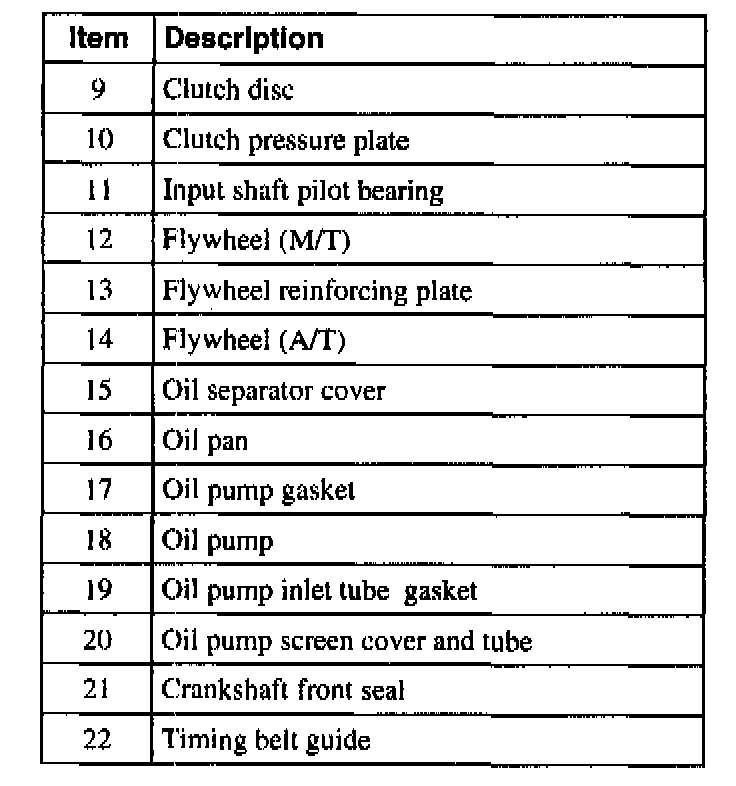

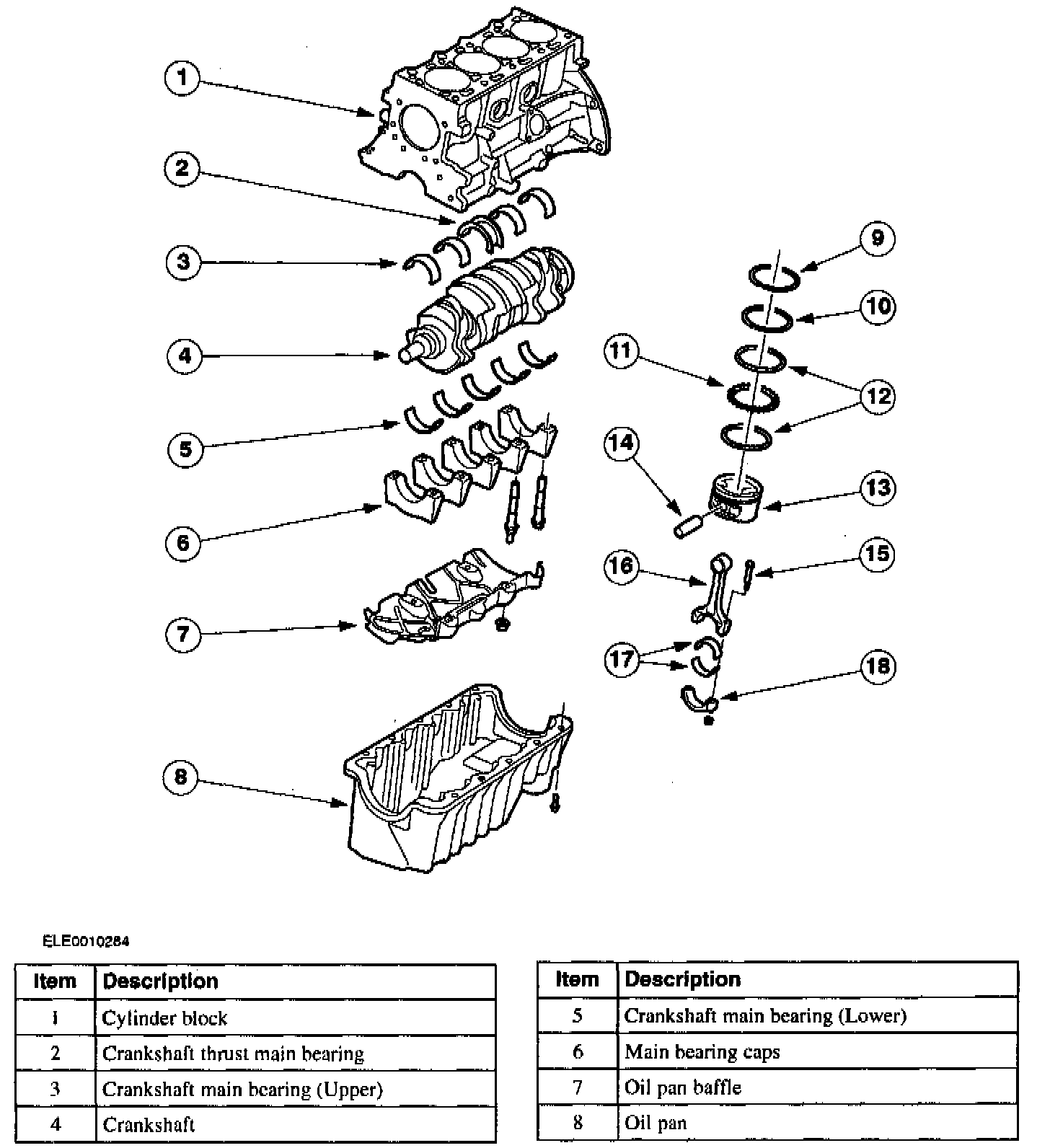

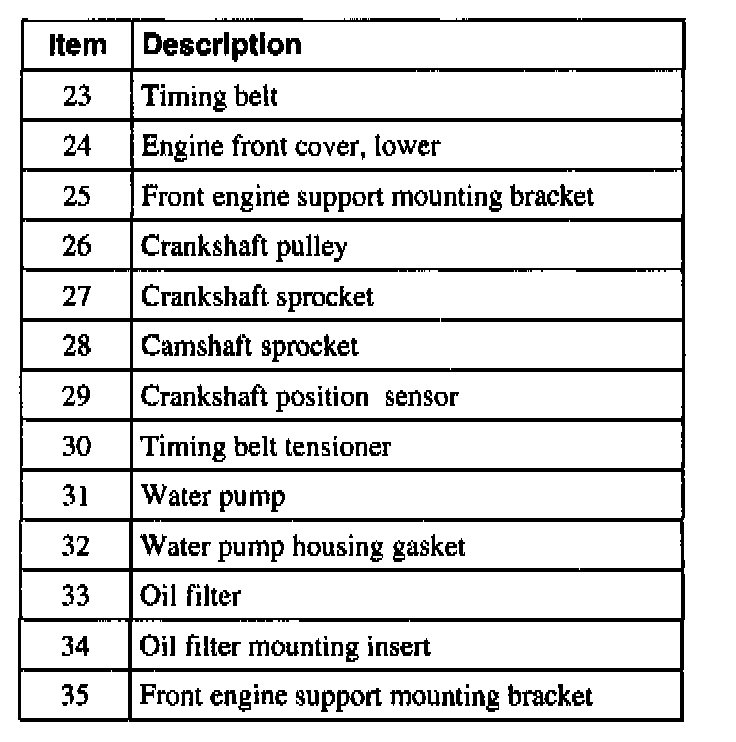

Lower End





1 of 3





2 of 3





3 of 3







1 of 2





2 of 2
