Control Assembly: Service and Repair

REMOVAL

CAUTION: Disconnect the battery ground lead.

1. Remove the radio/cassette player and CD player (if fitted). For additional information, refer to Radio,Stereo and Compact Disc.

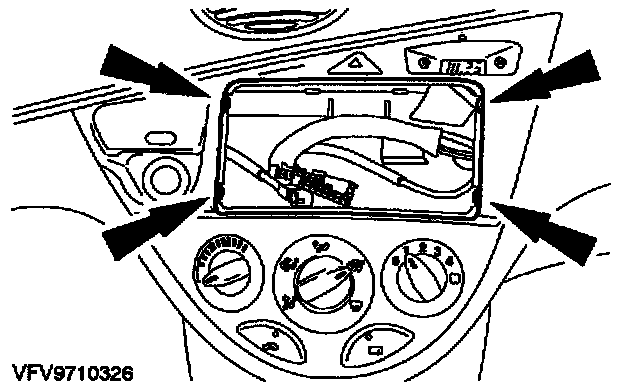

2. Remove the bezel with the heater/air conditioning control panel.







3. Remove the bezel with heater/air conditioning control panel (continued).

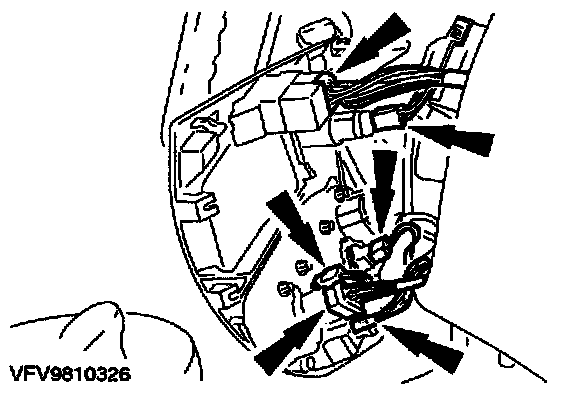

- Pull off the seven electrical connectors (six shown).







4. Remove bezel with heater/air conditioning control panel (continued).

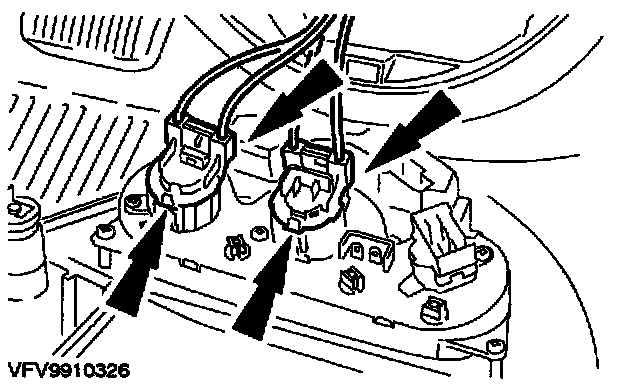

- Unclip the Bowden cables.

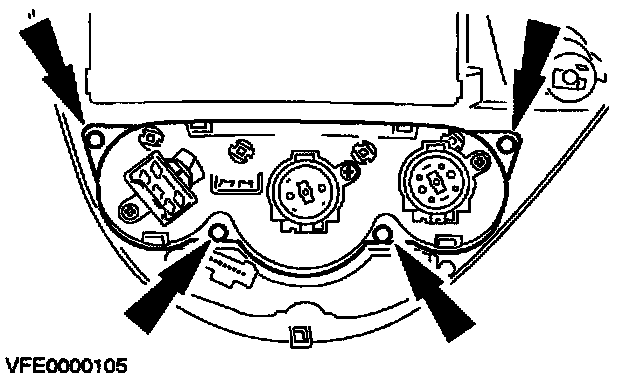

5. Remove the heater/air conditioning control panel from the bezel.

INSTALLATION
1. Refit the components in reverse order.
2. Check the operation of the heater/air conditioning.
