Catalyst Monitor Sensor

REMOVAL
1. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

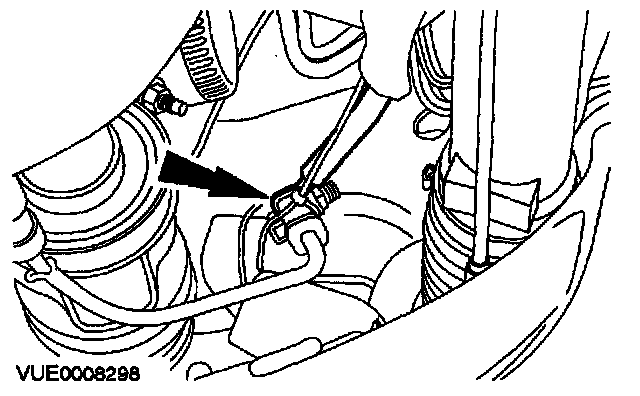

2. Disconnect the catalyst monitor sensor electrical connector.

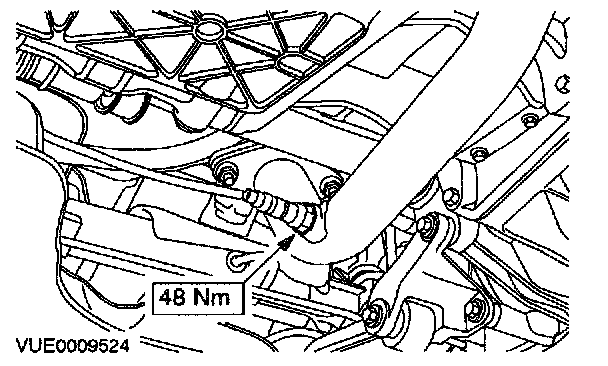

3. Remove the catalyst monitor sensor.

INSTALLATION







1. To install, reverse the removal procedure.
