Vehicle Speed Sensor: Service and Repair

With iB5 Manual Transaxle

Removal
1. Raise the vehicle.

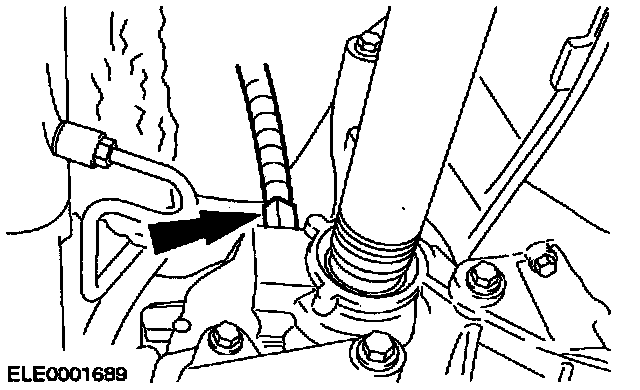

2. Disconnect the Vehicle Speed Sensor (VSS) electrical connector.

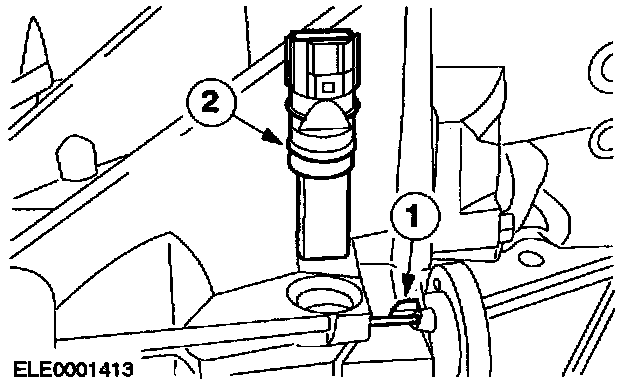

3. Remove the VSS.
1. Remove the retaining pin.
2. Remove the VSS.

Installation

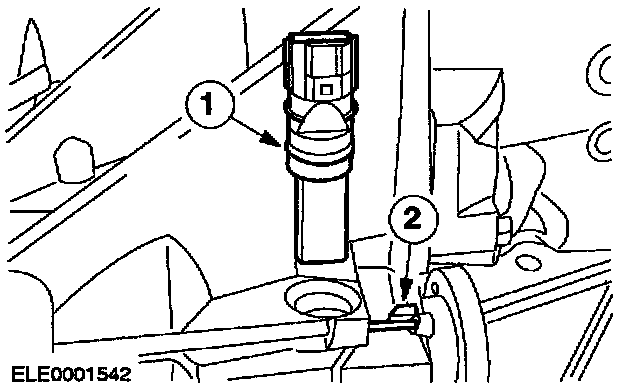

1. Install VSS.
1. Insert the VSS.
2. Insert the retaining pin.





2. Install VSS connector.
3. Lower the vehicle.
