Pinpoint Test A: The Abs Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

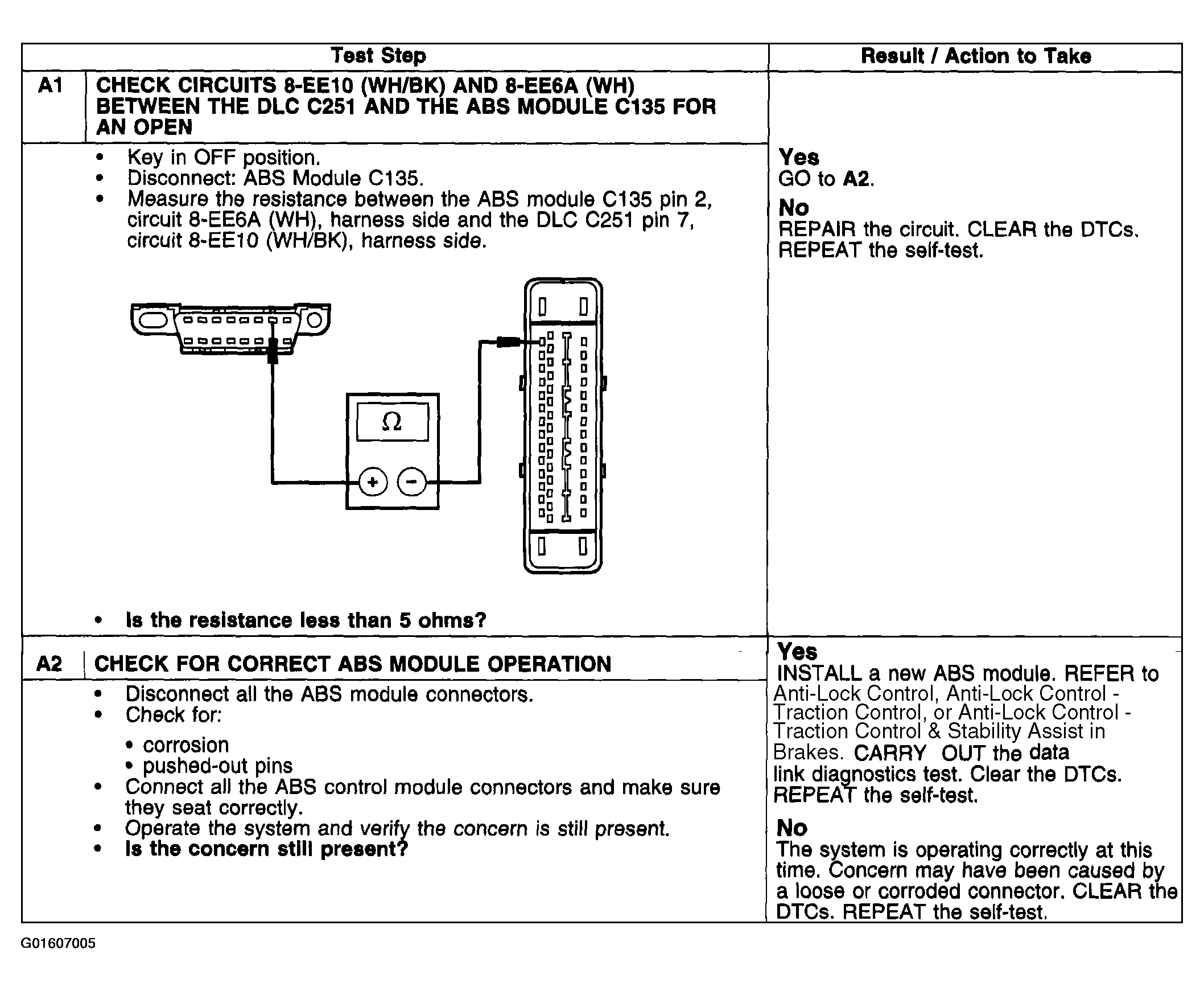

Fig 1: Pinpoint Test A: ABS Module Does Not Respond To Diagnostic Tool (A1-A2)
G01607005Courtesy of FORD MOTOR CO.
