Pinpoint Test D: The Anti-Lock Brake System (Abs) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

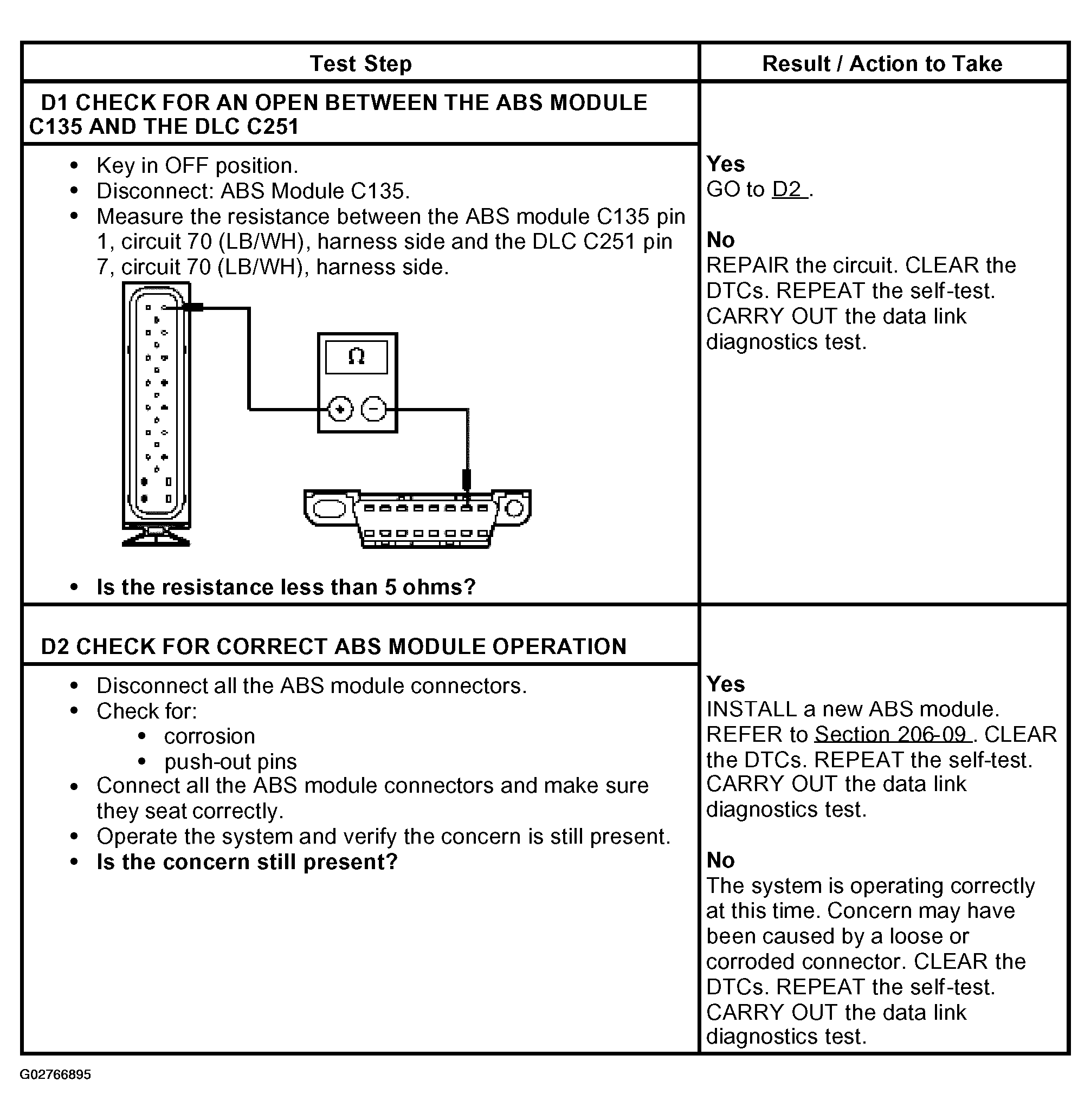

Fig 1: Pinpoint Test D: The Anti-Lock Brake System Module Not Respond To The Diagnostic Tool (Steps D1-C2)
G02766895Courtesy of FORD MOTOR CO.
