Output Shaft Ring Gear and Hub Shaft Assembly: Assembly

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the output shaft ring gear onto the output shaft hub.
    1. Install the output shaft ring gear.
    2. Install the retaining ring.

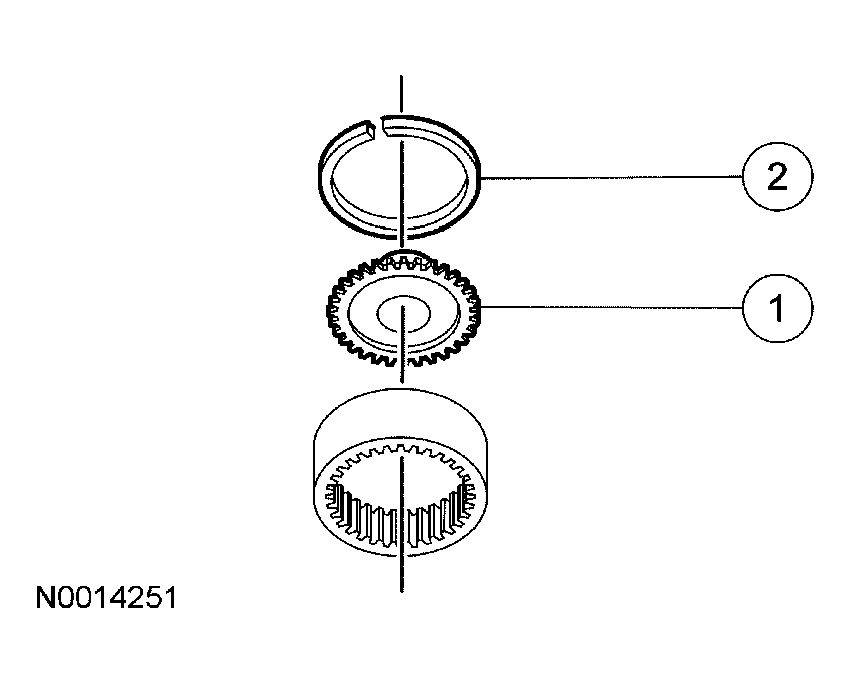

    Fig 1: Installing Output Shaft Ring Gear
    G03949060Courtesy of FORD MOTOR CO.
  2. Install the seal.

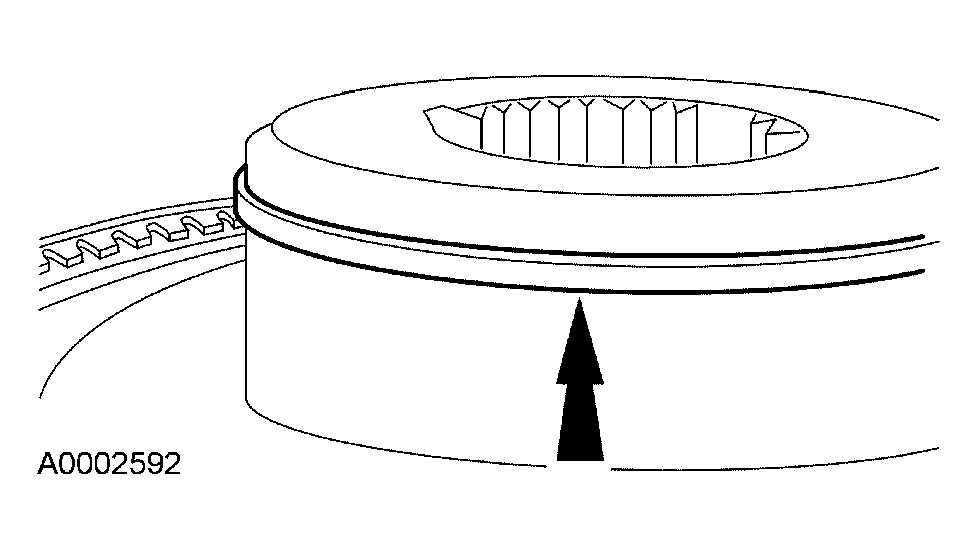

Fig 2: Identifying Seal
G03949058Courtesy of FORD MOTOR CO.
