Output Shaft Ring Gear and Hub Shaft Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

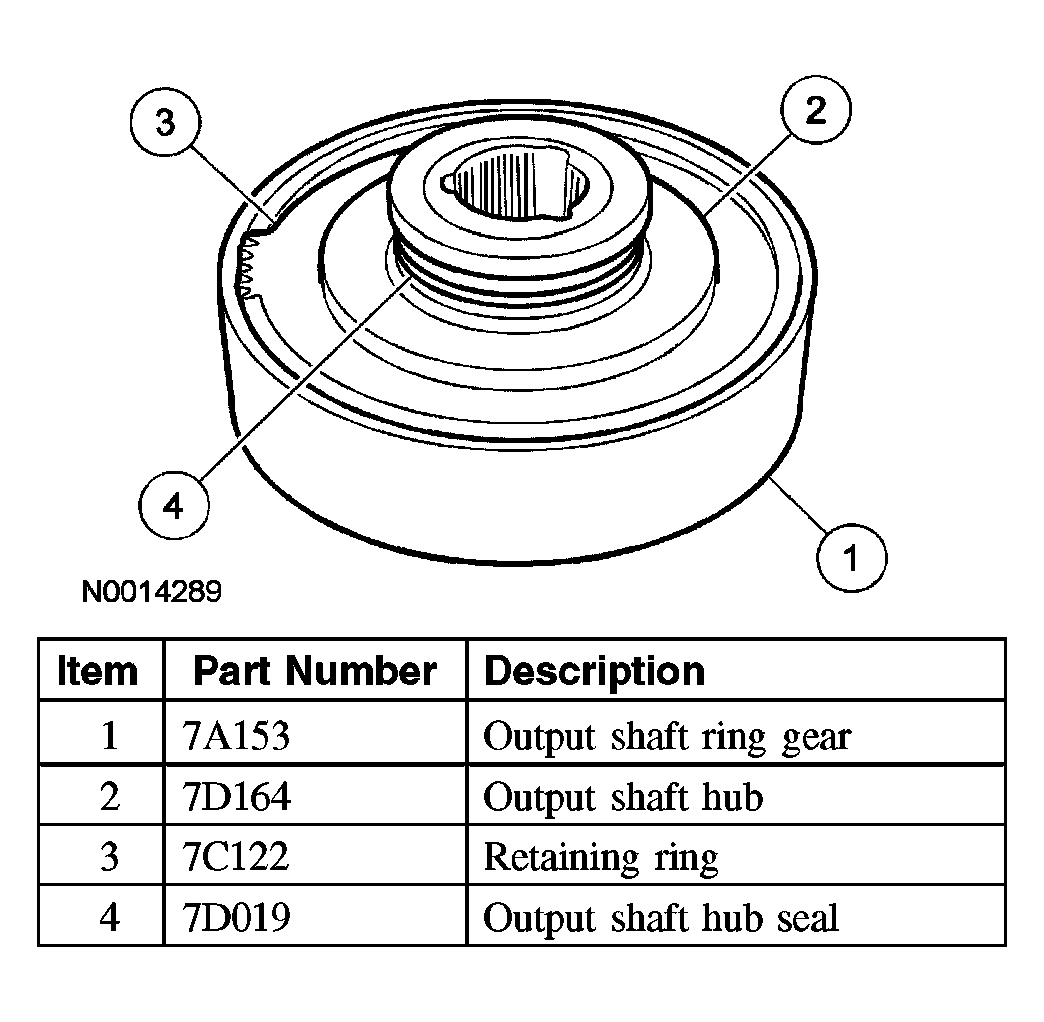

Fig 1: Identifying Components Output Shaft Ring Gear And Hub Shaft Assembly

Courtesy of FORD MOTOR CO.

Inspect the output shaft ring gear and hub shaft assembly for damage. If repair is necessary, use the following procedure.
Remove the seal.

Fig 2: Identifying Seal
Courtesy of FORD MOTOR CO.
Remove the output shaft ring gear from the output shaft hub.
1. Remove the retaining ring.
2. Remove the output shaft ring gear.

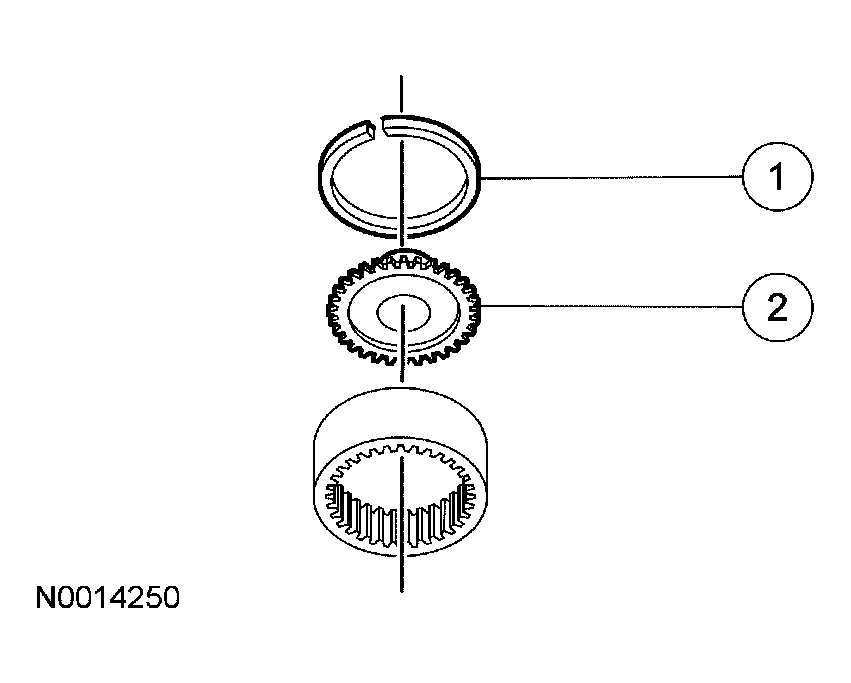

Fig 3: Removing Output Shaft Ring Gear

Courtesy of FORD MOTOR CO.
