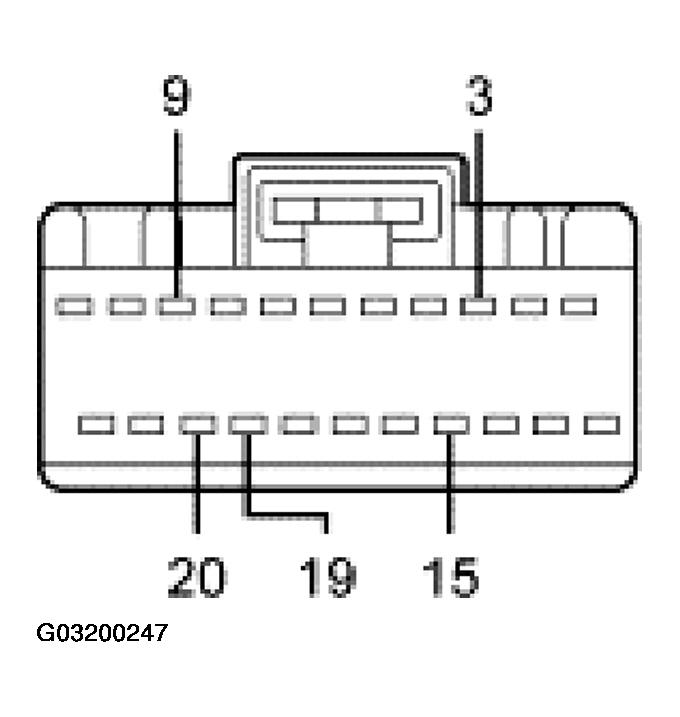

Instrument Cluster C220c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 9-AL10 (BN) tilt/telescope switch input signal from the instrument cluster | Voltage varies with switch actuation, 0 volts with switch in neutral position. |
| 9 | 9-AL17 (BN/WH) steering column position sensor input from the instrument cluster | 5 volt reference with ignition in ACC and RUN position. |
| 15 | 8-AL10 (WH) tilt/telescope switch input signal to the instrument cluster | 5 volt reference with ignition in ACC and RUN position. |
| 19 | 7-AL17 (YE/VT) steering column position sensor signal ground from instrument cluster | 0 volts, less than 5 ohms resistance to chassis ground. |
| 20 | 8-AL17 (WH/VT) steering column position sensor signal | Voltage varies with tilt motor position. |
