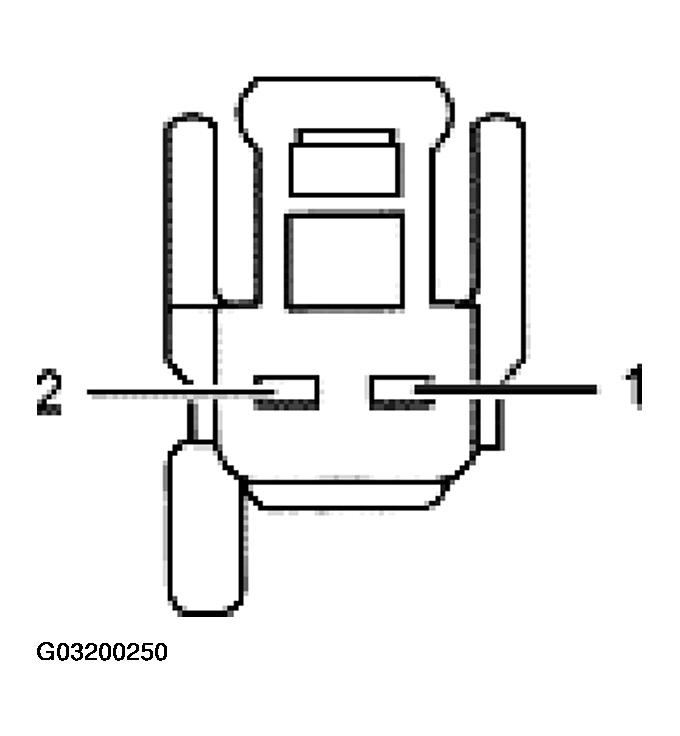

Tilt/Telescope Switch C2250
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-AL10 (WH) tilt/telescope switch input signal to the instrument cluster | 5 volt reference with ignition in ACC and RUN position. |
| 2 | 9-AL10 (BN) tilt/telescope switch input signal from instrument cluster | Voltage varies with switch actuation, zero volts with switch in neutral position. |
