Pinpoint Test F: The Air Conditioning (A/C) Is Always On - Diesel Engine

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before carrying out the following test, diagnose any PCM DTCs.

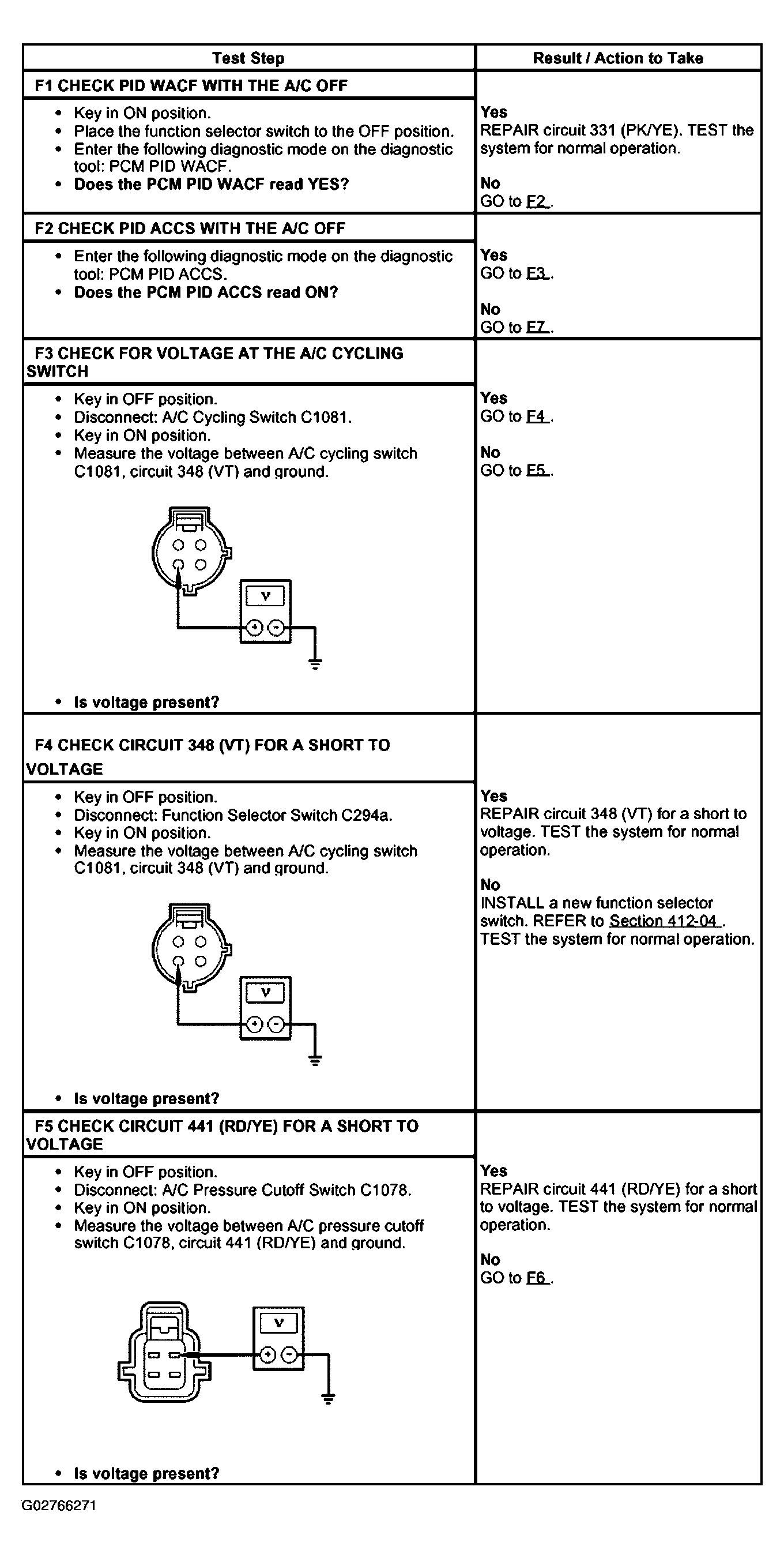

Fig 1: Pinpoint Test F: Air Conditioning (A/C) Is Always On - Diesel Engine (Step F1-F5)

Courtesy of FORD MOTOR CO.

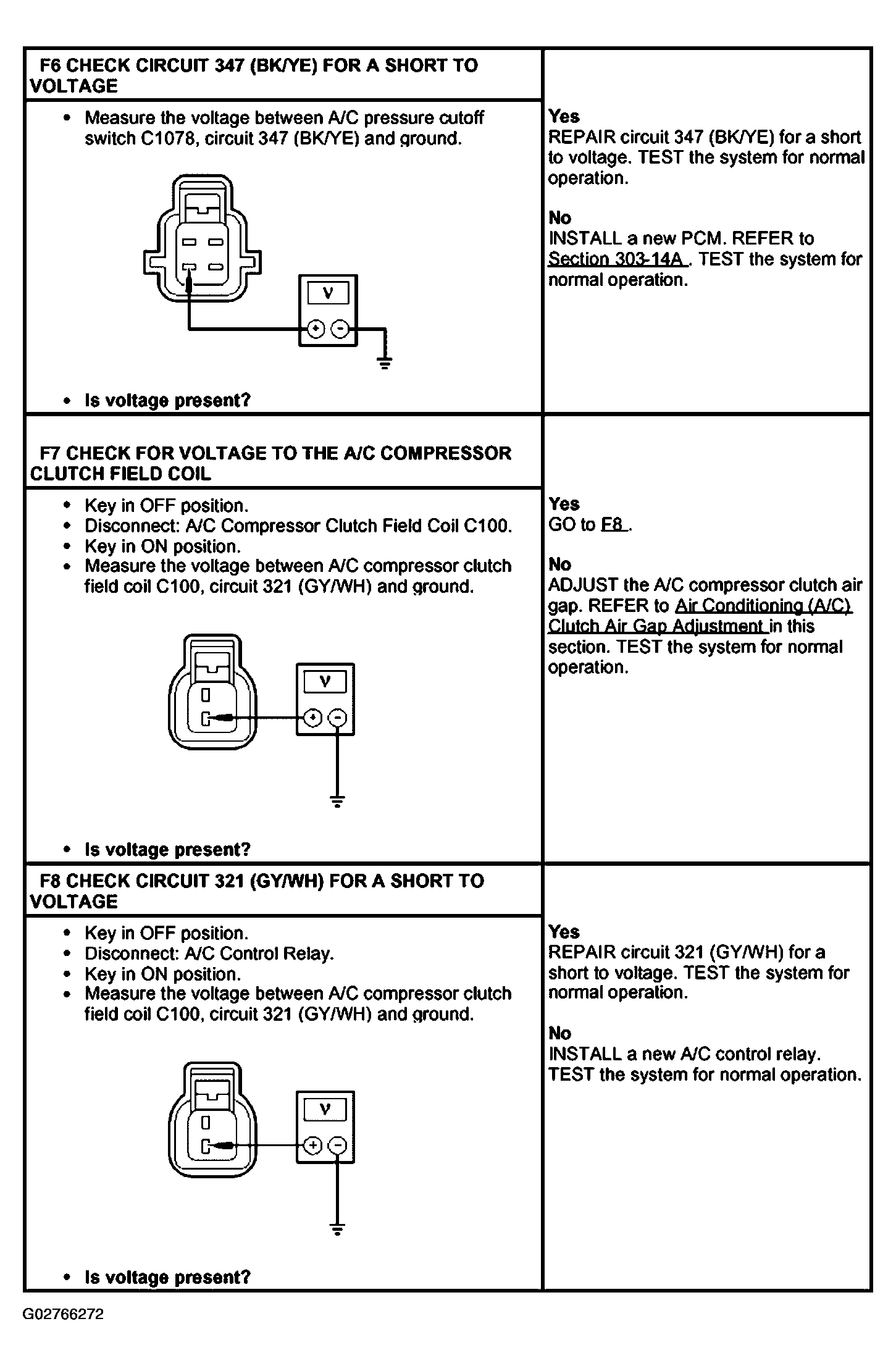

Fig 2: Pinpoint Test F: Air Conditioning (A/C) Is Always On - Diesel Engine (Step F6-F8)

Courtesy of FORD MOTOR CO.
