Pinpoint Test I: The Blower Motor Is Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

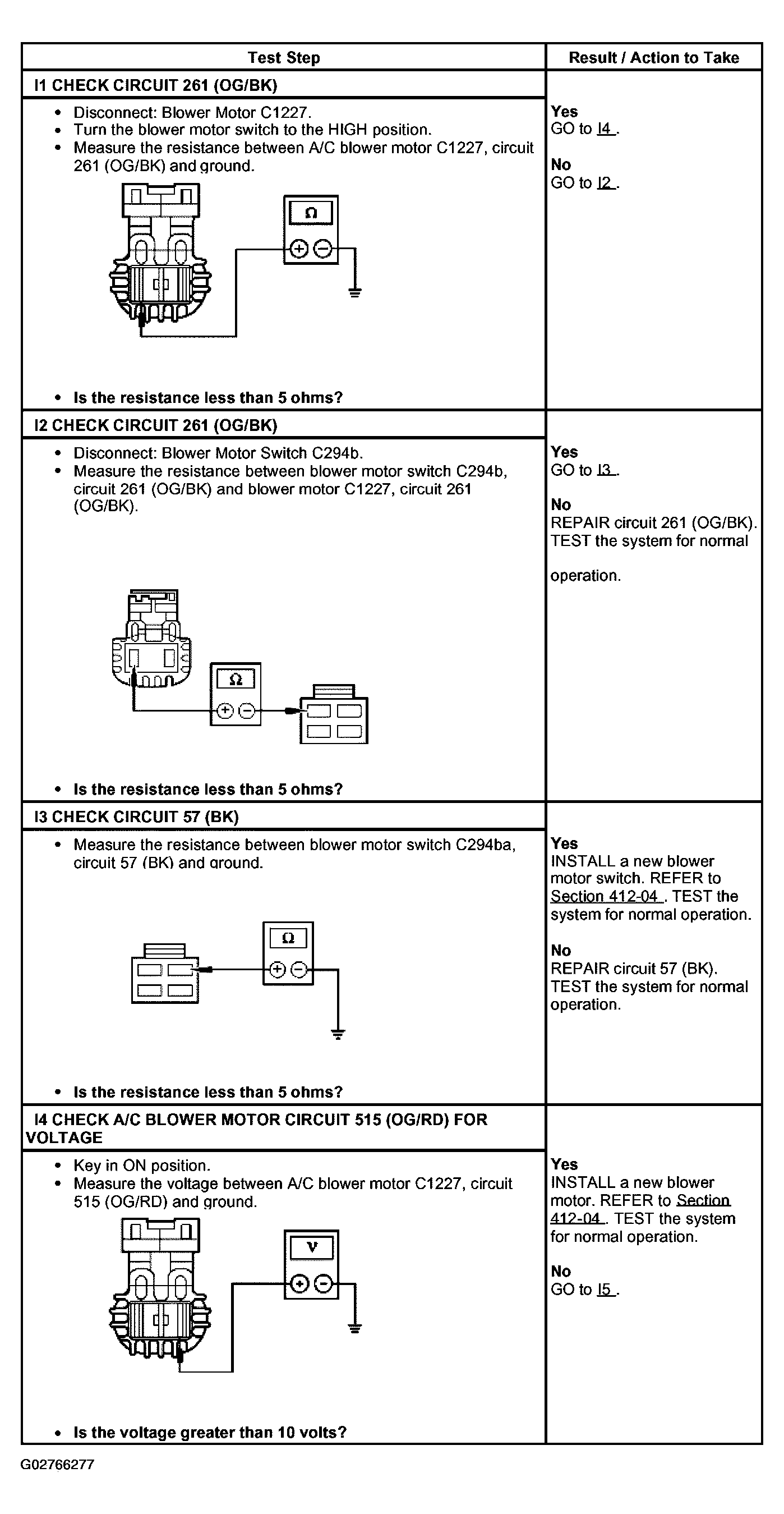

Fig 1: Pinpoint Test I: Blower Motor Is Inoperative (Step I1-I4)
G02766277Courtesy of FORD MOTOR CO.

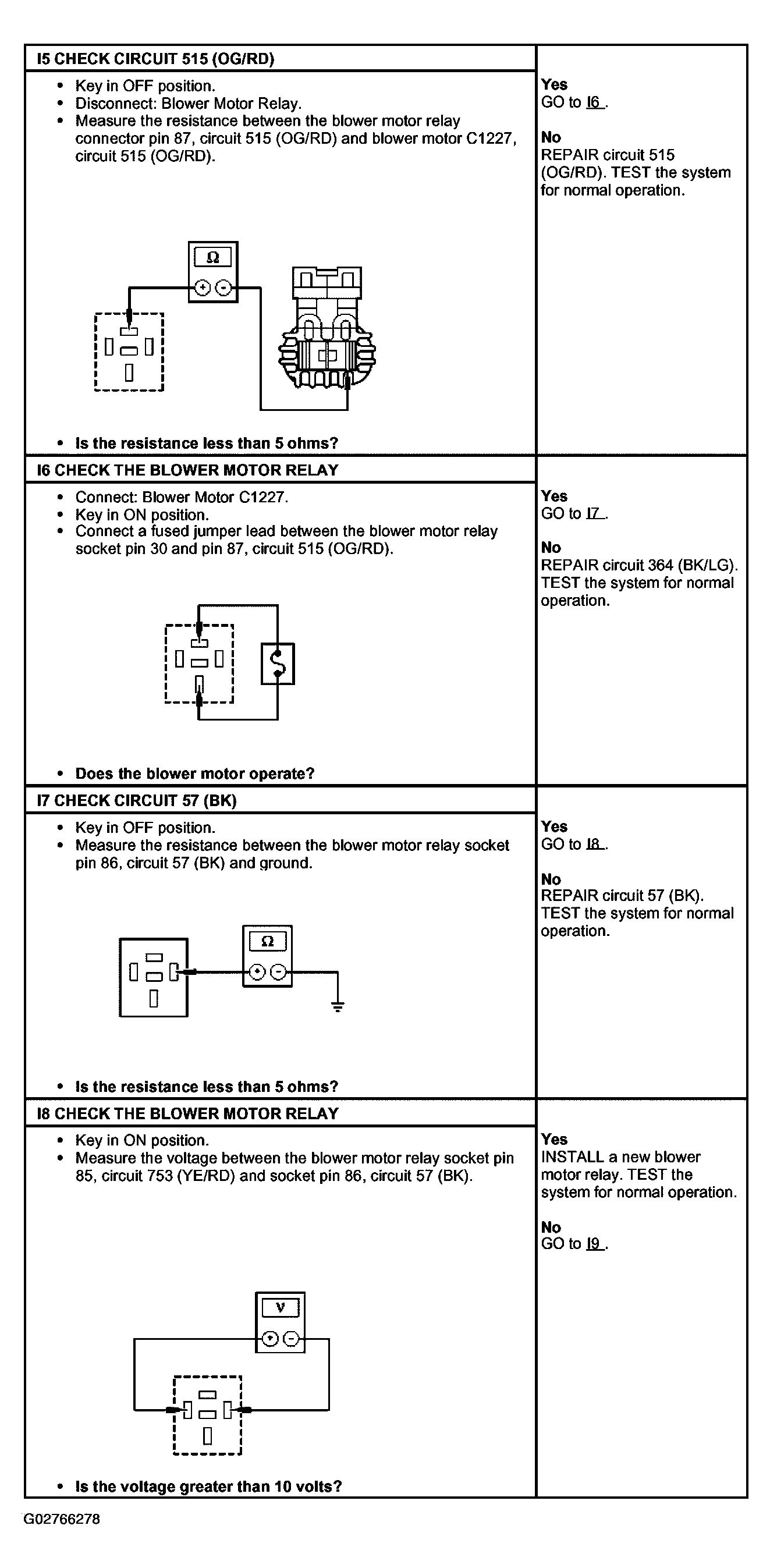

Fig 2: Pinpoint Test I: Blower Motor Is Inoperative (Step I5-I8)
G02766278Courtesy of FORD MOTOR CO.

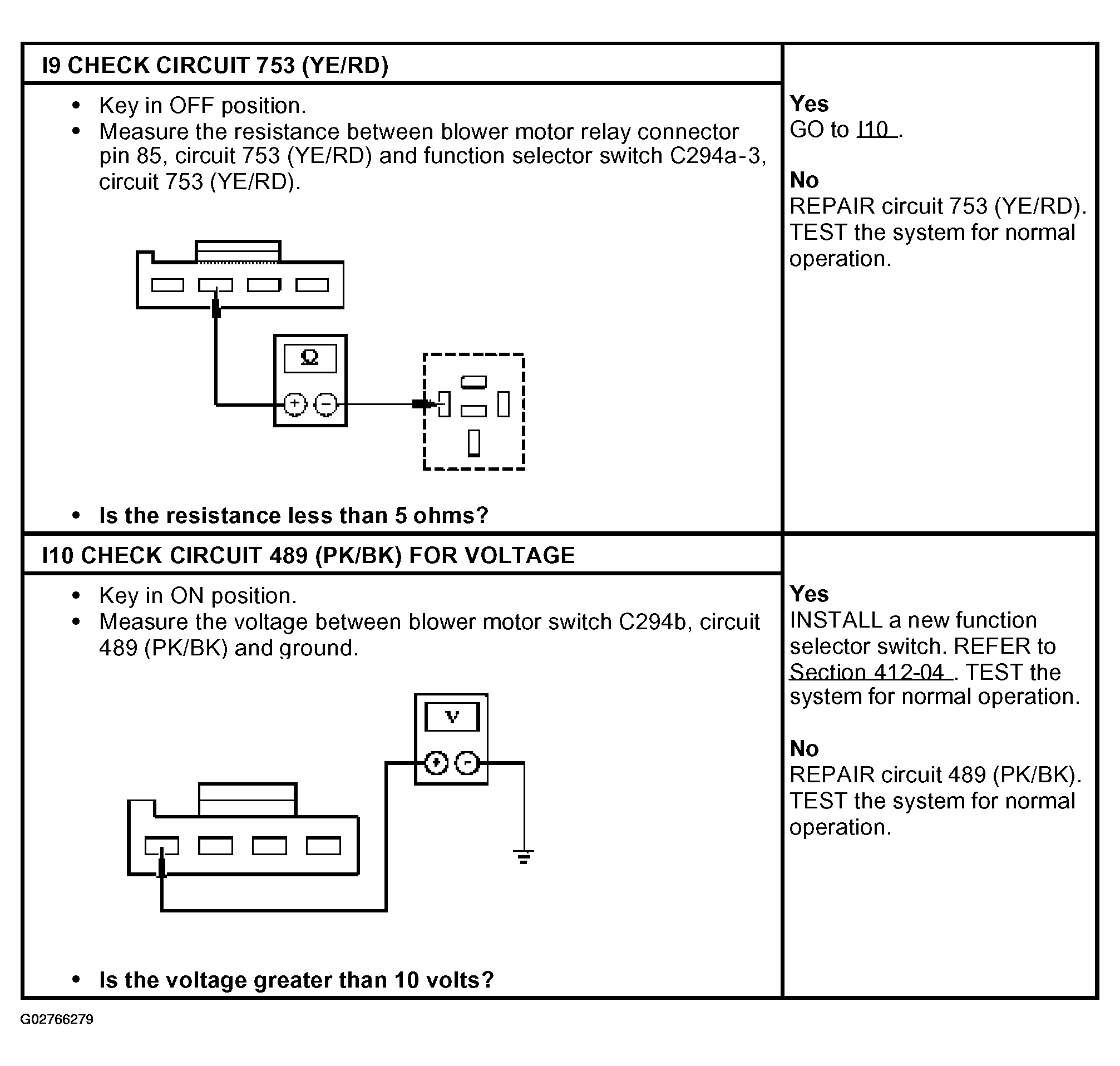

Fig 3: Pinpoint Test I: Blower Motor Is Inoperative (Step I9-I10)
G02766279Courtesy of FORD MOTOR CO.
